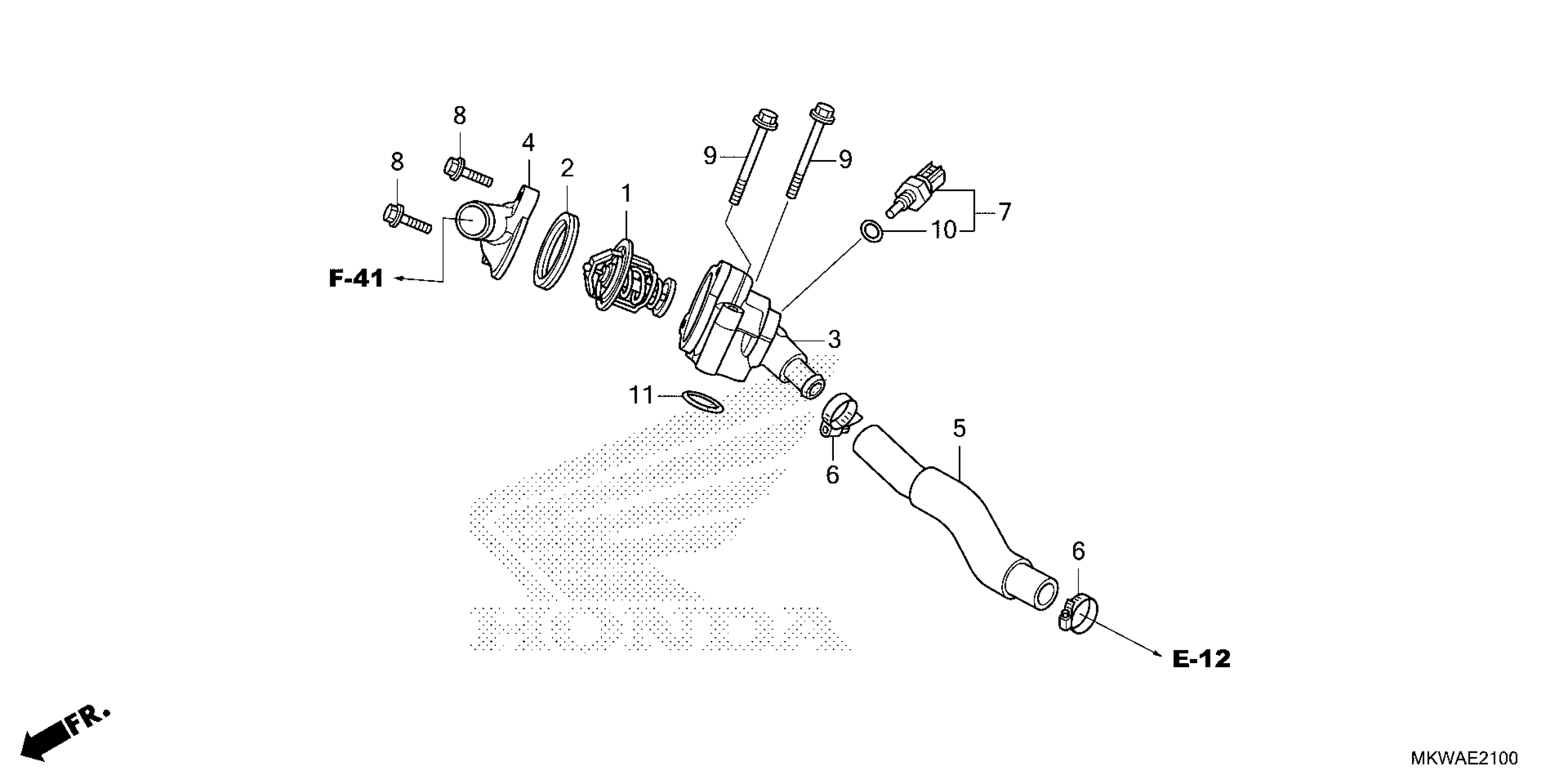

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 THERMOSTAT Diagram

THERMOSTAT ASSY.

19300-MCJ-003

$47.67

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

CASE, THERMOSTAT

19310-MGS-D30

$85.12

COVER, THERMOSTAT

19316-MGS-D30

$24.47

HOSE, WATER BYPASS

19322-MGS-D30

$14.72

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$8.17

BOLT, FLANGE (6X22) (S-NSHF)

90028-GHB-670

$2.16

BOLT, FLANGE (6X55) (S-NSHF)

90028-GHB-770

$1.68

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.96

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.80

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80
