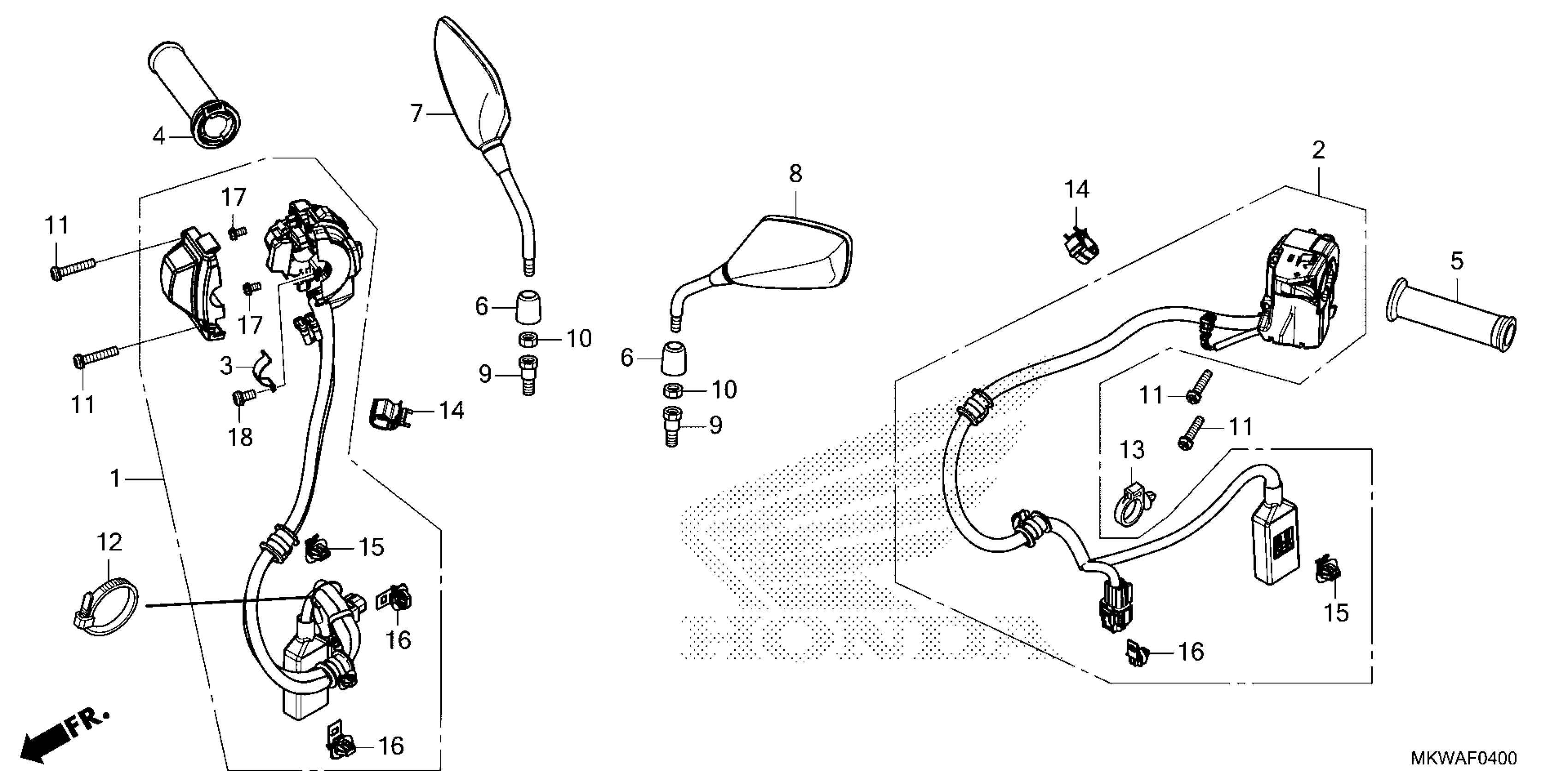

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 SWITCH@GRIP@MIRROR Diagram

SWITCH UNIT

35135-MKW-D81

$245.78

SWITCH ASSY.

35200-MKW-D81

$193.47

PLATE A, SETTING

37971-MLL-D01

$2.82

GRIP ASSY., THROTTLE

53140-MKK-D01

$32.72

GRIP, L. HANDLE

53166-MGE-000

$16.28

COVER, LOCK NUT

88130-MFG-D00

$1.59

MIRROR COMP R

88210-MLC-D00

$65.07

MIRROR COMP L

88220-MLC-D00

$65.07

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.45

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.20

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

CLAMP, HARNESS

90652-HC4-003

$5.68

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

SCREW-WASHER (4X8)

93892-04008-08

$1.06

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.06

SCREW-WASHER (5X8)

93892-05008-08

$0.97
