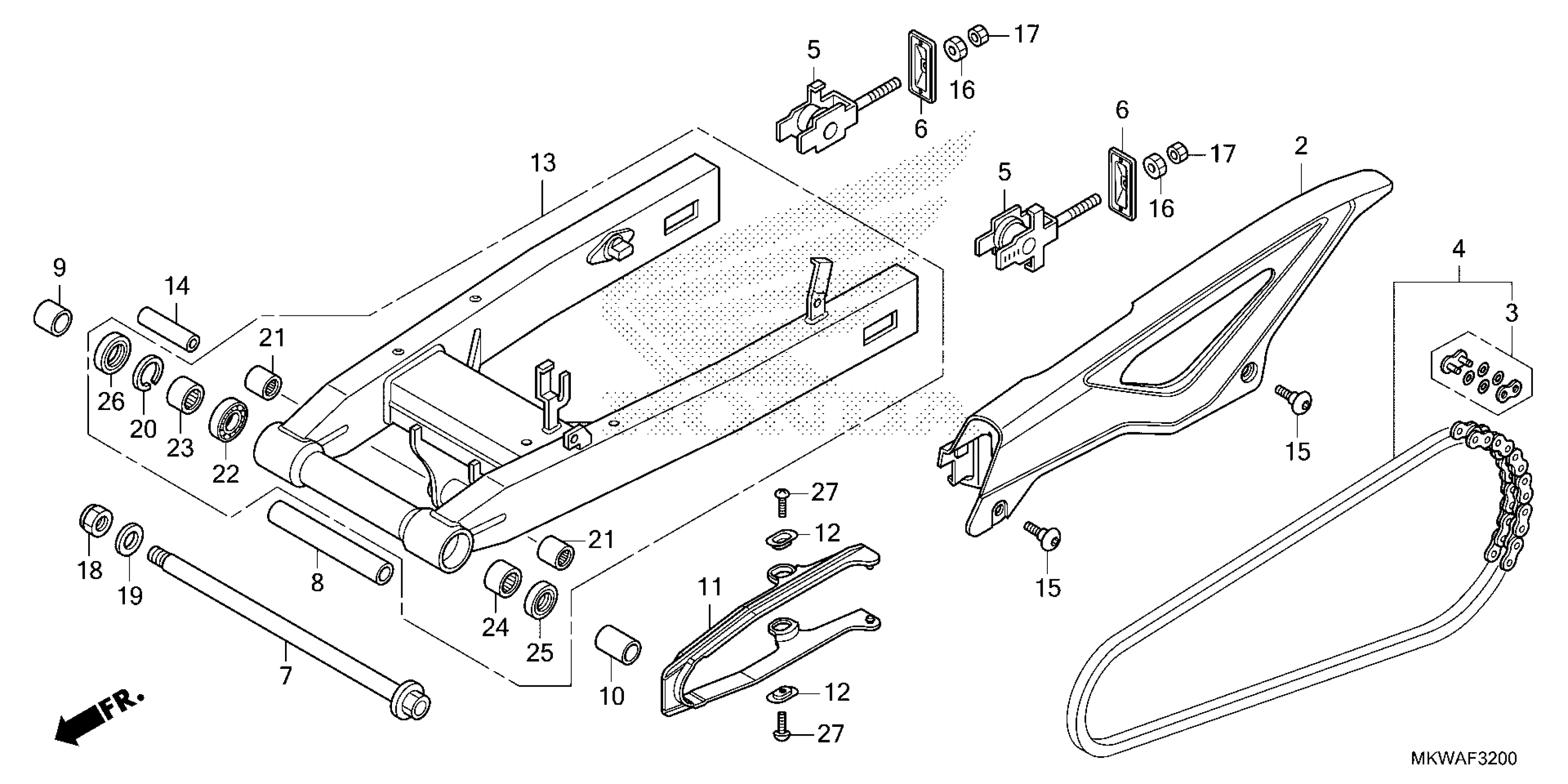

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN

40510-MGS-D30

$105.96

3

MASTER LINK (RK EXCEL)

40531-MJF-A02

$12.22

3

MASTER LINK (DAIDO)

40545-MGS-D31

$12.41

4

CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MGS-D31

$213.63

4

CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MJF-A02

$210.44

5

ADJUSTER, CHAIN

40543-MGS-D30

$28.79

6

CAP, SWINGARM END

40546-MGS-D30

$17.70

7

BOLT, SWINGARM PIVOT

52101-MKT-D00

$32.34

8

COLLAR, PIVOT DISTANCE CENTER

52141-MGS-D10

$31.81

9

COLLAR, R. PIVOT DISTANCE

52142-MGS-D10

$17.22

10

COLLAR, L. PIVOT DISTANCE

52143-MGS-D10

$18.59

11

SLIDER, CHAIN

52170-MGS-D30

$39.13

12

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

13

SWINGARM SUB-ASSY., RR.

52200-MGS-D71

$1,070.75

14

COLLAR B, CUSHION ARM

52463-MGS-D10

$11.90

15

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.50

16

NUT, HEX. (8MM)

90302-MBZ-G00

$0.79

17

NUT, HEX. (8MM)

90303-MBZ-G00

$0.71

18

NUT, U (18MM)

90306-MCS-G01

$6.51

19

WASHER (18X32X2)

90401-KZ4-890

$4.28

20

CIRCLIP (INNER) (37)

90651-MEW-920

$2.90

21

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.00

22

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$9.25

23

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$17.75

24

BEARING, NEEDLE

91071-MR7-003

$23.57

25

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

26

DUST SEAL (30X37X4)

91253-KZ3-861

$7.99

27

SCREW, TAPPING (5X12)

93901-25280

$0.84
