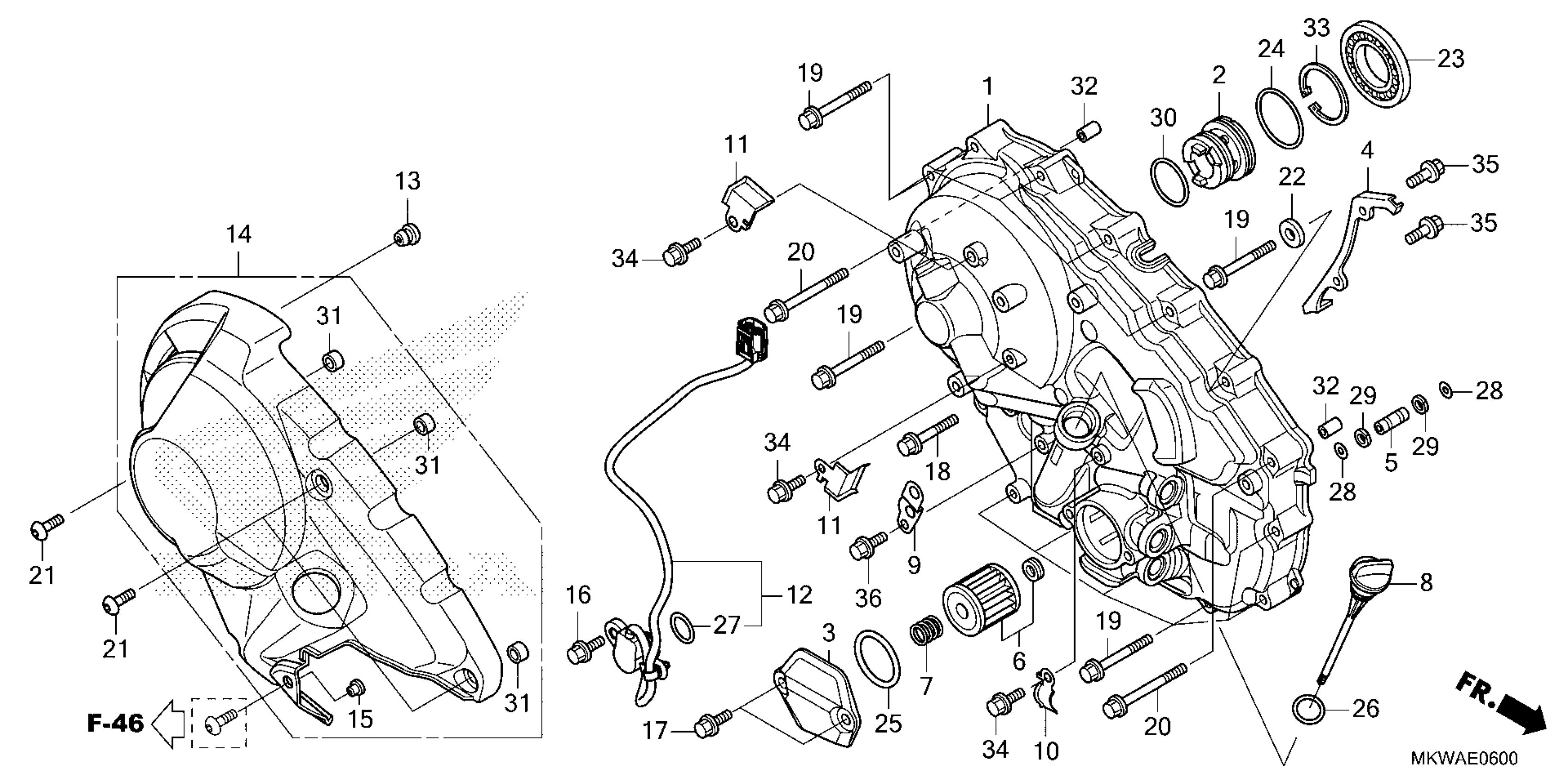

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MGS-D40

$301.53

2

COLLAR, OIL GUIDE

11332-MGS-D20

$24.43

3

COVER, OIL FILTER

11337-MGS-D40

$52.51

4

CLAMP, SOLENOID CORD

11339-MGS-D20

$9.16

5

PIPE, OIL PASSAGE

15104-MGS-D20

$9.03

6

ELEMENT, OIL FILTER

15412-MGS-D21

$7.80

7

SPRING, OIL FILTER

15414-MEB-670

$2.43

8

DIPSTICK, OIL

15651-MKT-D00

$9.43

9

STAY, HARNESS CLIP (B)

32171-MGS-D20

$2.50

10

STAY, HARNESS

32172-MGS-D70

$2.50

11

STAY, HARNESS

32173-MGS-D70

$2.50

12

SENSOR ASSY., ANGLE (40DEGREE)

38810-MKW-D11

$177.43

13

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

14

COVER, R. ENGINE SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64520-MGS-D50ZA

$74.53

15

COLLAR, FENDER SETTING

80103-MCJ-750

$2.38

16

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

17

BOLT, FLANGE (6X16) (S-NSHF)

90028-GHB-640

$2.01

18

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

19

BOLT, FLANGE (6X40) (S-NSHF)

90028-GHB-740

$2.16

20

BOLT, FLANGE (6X50) (S-NSHF)

90028-GHB-760

$2.44

21

BOLT, SPECIAL (6X17)

90085-MCZ-000

$1.97

22

WASHER, SEALING (6MM)

90488-425-000

$2.10

23

BEARING, RADIAL BALL (40X68X7.5)

91029-MGS-D21

$19.54

24

O-RING (35X2.2)

91302-MGS-D20

$2.13

25

O-RING (39.8X2.2)

91302-K0G-911

$4.66

26

O-RING (18X3)

91307-035-000

$2.75

27

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

28

O-RING (7.7X1.9)

91311-RFH-003

$2.41

29

RING, BACK-UP (8X11)

91315-MGS-D20

$3.09

30

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.36

31

COLLAR

91502-MGS-D50

$2.51

32

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.76

33

CIRCLIP (INNER) (40)

94520-40150

$1.87

34

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

35

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

36

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
