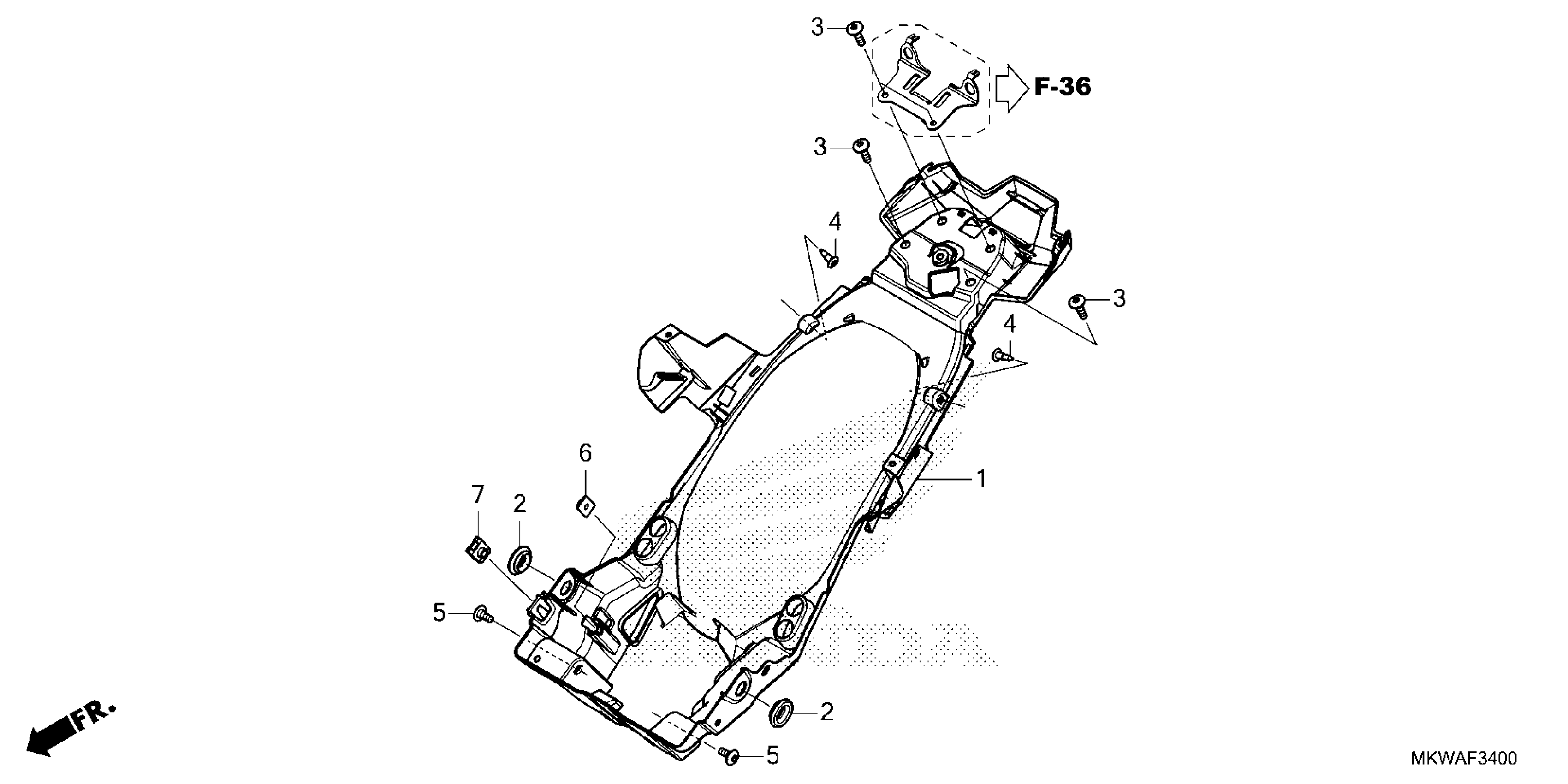

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 REAR FENDER Diagram

#

Description

Price

1

FENDER B, RR.

80105-MKW-D00

$119.51

2

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

3

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

4

CLIP, BUMPER SEAL

90116-K2P-V61

$1.39

5

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.50

6

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

7

NUT, CLIP (6MM)

90305-GEE-710

$1.50
