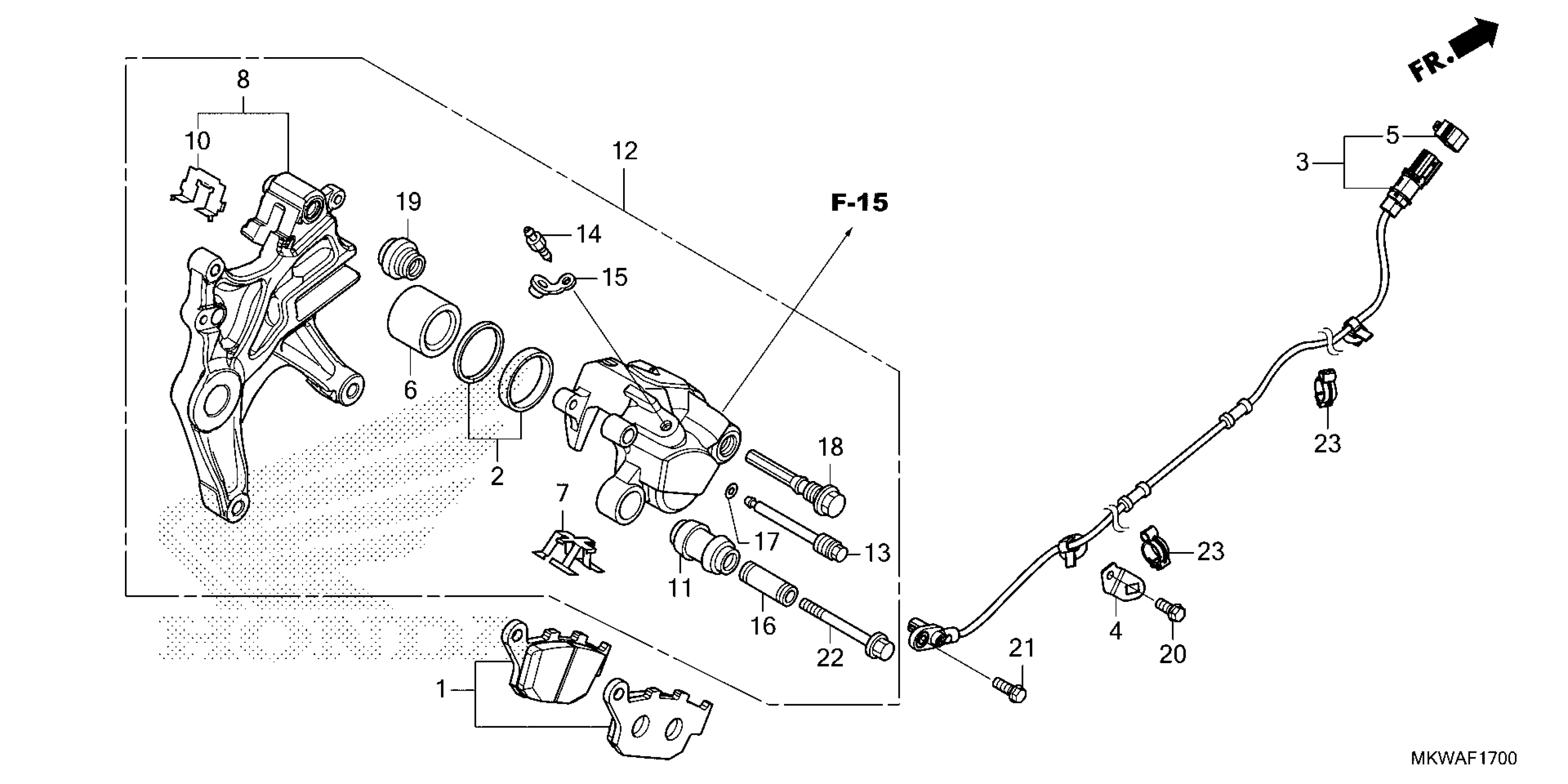

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGS-D32

$49.46

SEAL SET, PISTON

06451-443-405

$13.23

SENSOR, RR. SPEED

38510-MKW-D71

$56.48

STAY, SENSOR WIRE

38515-MKA-D80

$3.46

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$3.00

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR. BRAKE

43110-MKA-D51

$164.69

RETAINER

43112-MFF-D01

$7.61

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR.

43150-MKA-D51

$306.80

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.21

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

CLIP, CABLE (12MM)

90690-MGS-D81

$2.23
