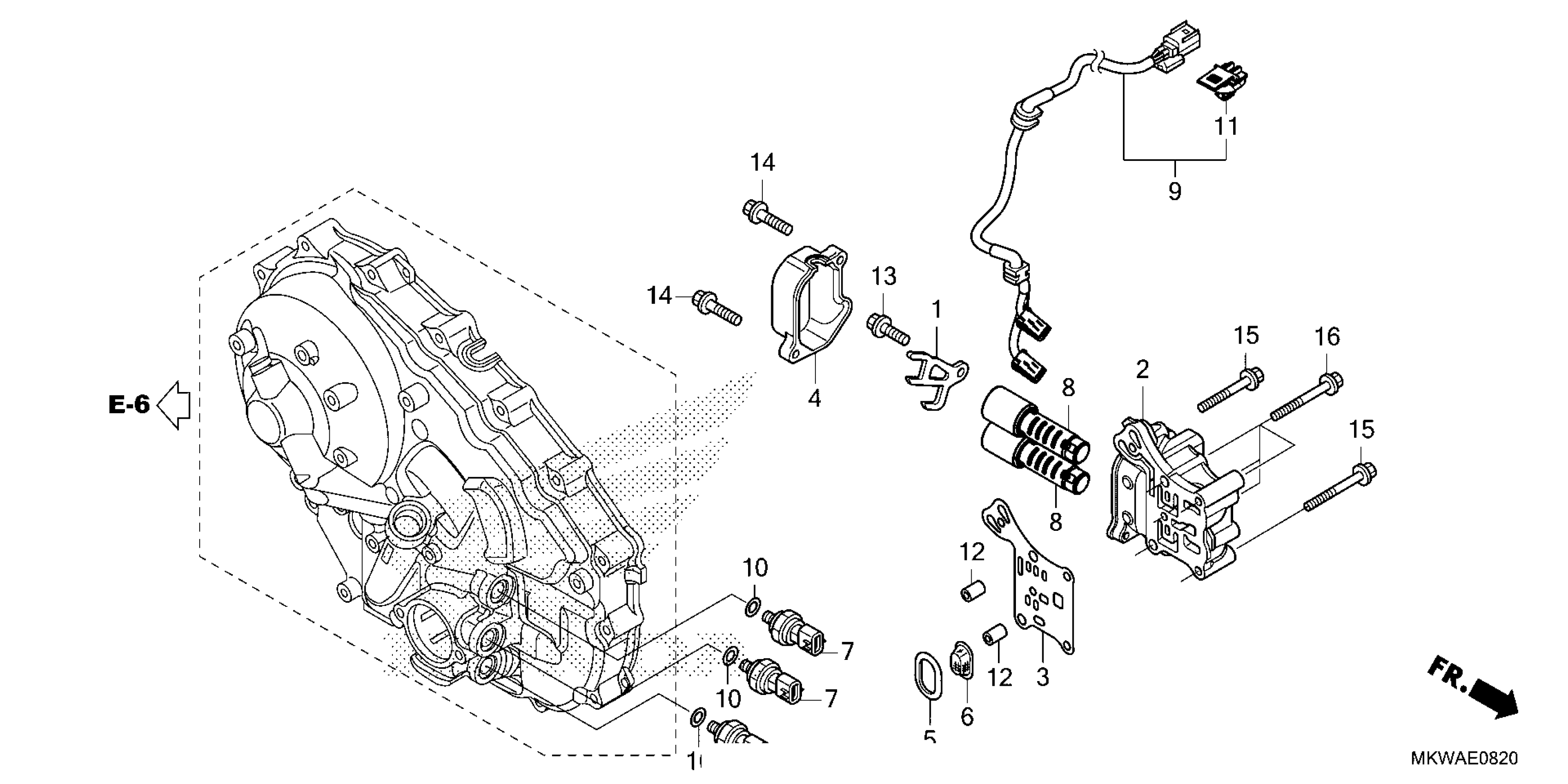

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 LINEAR SOLENOID Diagram

PLATE, SOLENOID STOPPER

11338-MGS-D20

$13.02

BODY, LINEAR SOLENOID

11361-MGS-D20

$103.10

PLATE, SEPARATOR

11362-MGS-D20

$6.77

COVER, LINEAR SOLENOID

11363-MGS-D20

$9.07

GASKET, BASE

11371-MGS-D20

$4.15

FILTER, SPOOL VALVE

11372-MGS-D20

$15.84

SENSOR (2MPA)

37270-MLN-E61

$56.52

VALVE

38610-MLN-E61

$91.26

HARNESS

38611-MKW-D80

$31.28

O-RING (13X1.5)

91301-MEH-003

$1.62

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
