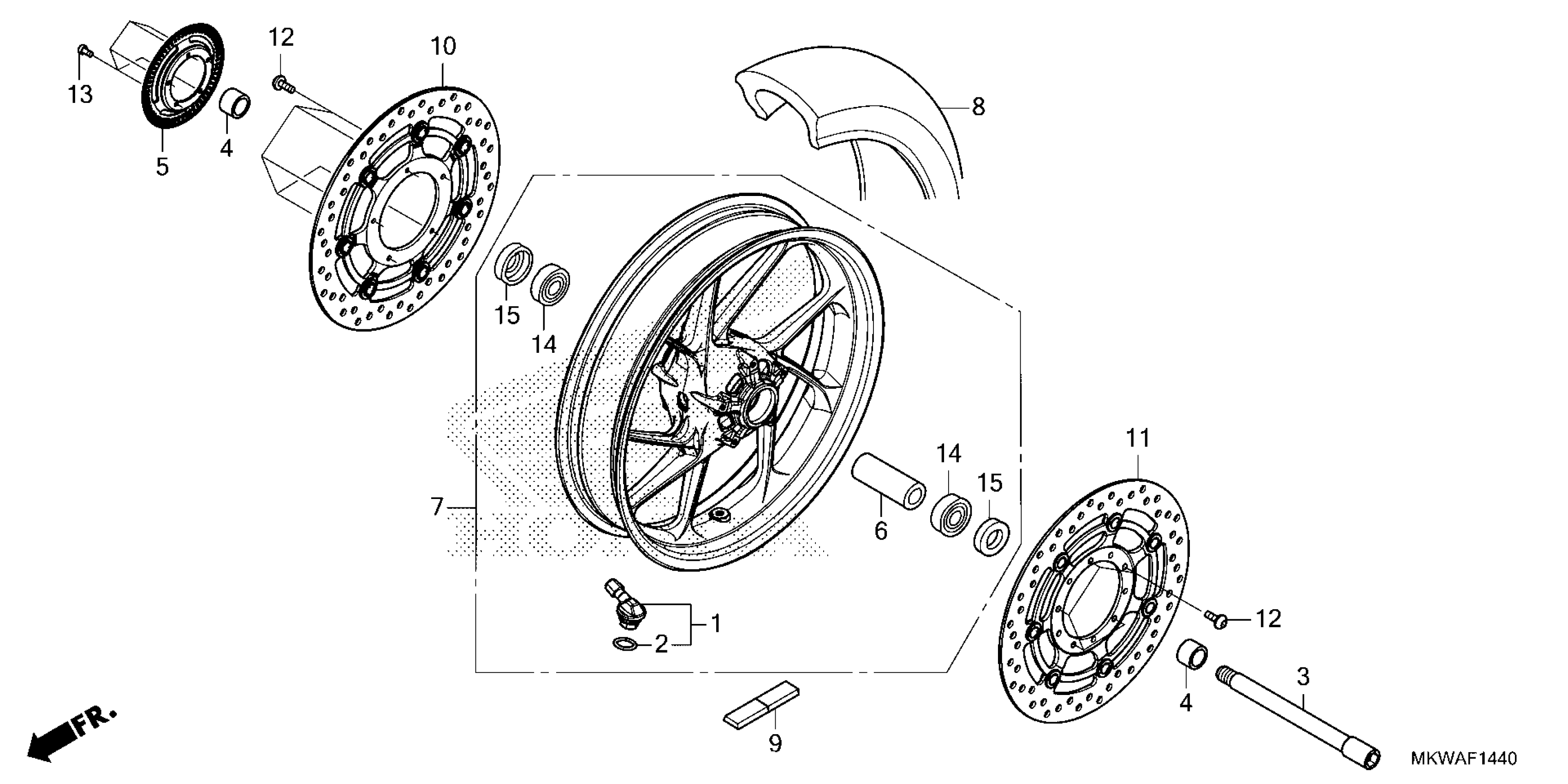

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

O-RING

42758-MKA-D81

$1.52

AXLE, FR. WHEEL

44301-MGS-D30

$53.20

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$10.72

RING, FR. PULSER

44515-MFP-600

$78.63

COLLAR, FR. AXLE DISTANCE

44620-MGC-N20

$14.92

WHEEL SUB-ASSY., FR.

44650-MKV-D50

$496.43

TIRE (120/70ZR17)

44711-MJL-D34

$148.42

TIRE (120/70ZR17)

44711-MKW-D02

$122.77

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.80

DISK, R. FR. BRAKE

45120-MFM-FA1

$397.43

DISK, L. FR. BRAKE

45220-MFM-H21

$385.84

BOLT (6X17)

90106-MJM-D30

$2.66

BOLT, TORX (5X10)

90131-MJM-D30

$3.31

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$15.62

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
