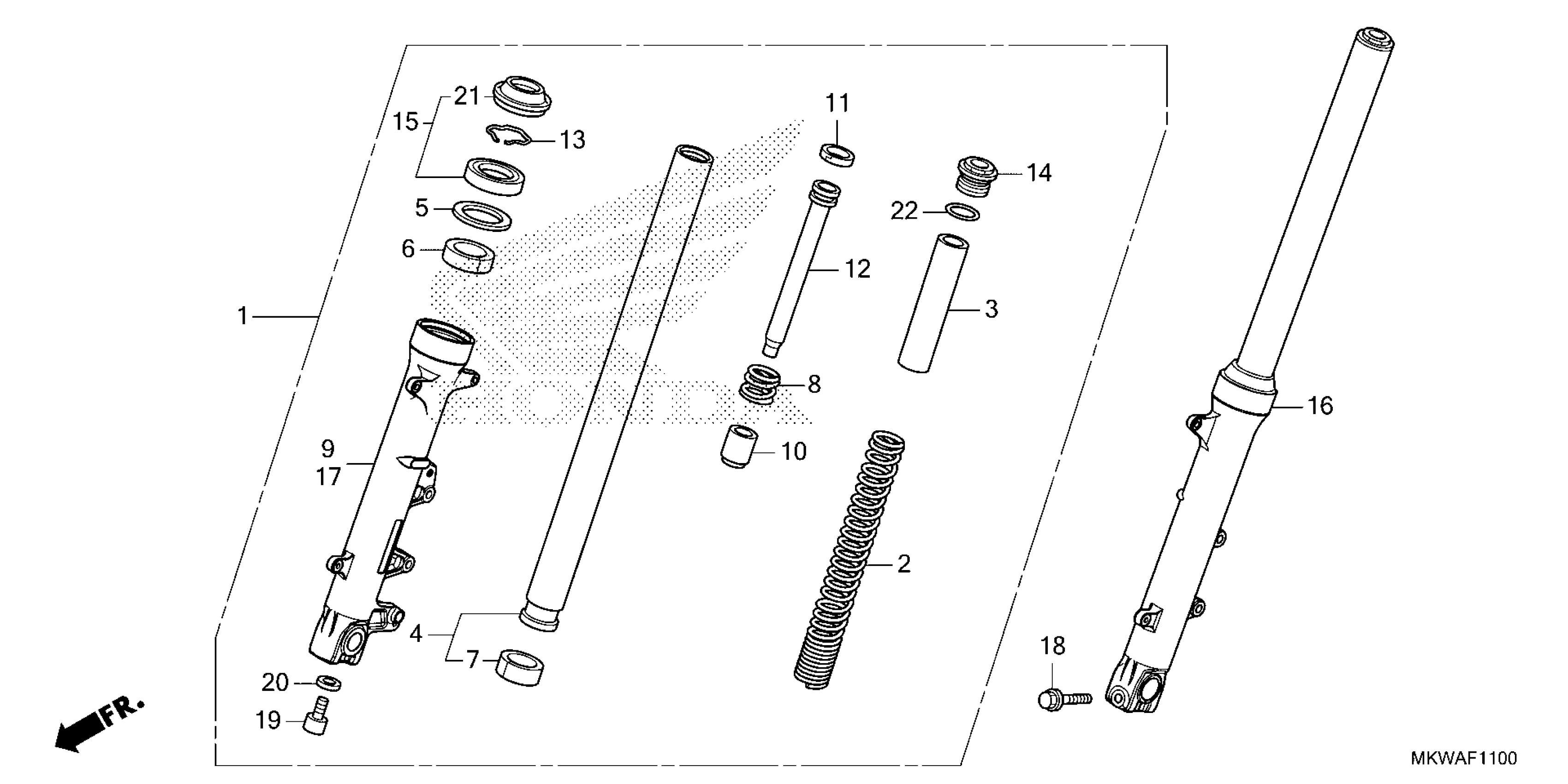

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 FRONT FORK Diagram

FORK ASSY., R. FR.

51400-MKW-D71

$498.91

SPRING, FR. FORK

51401-MKW-D01

$85.31

COLLAR, SPRING

51402-MGZ-J01

$18.27

PIPE, FR. FORK

51410-MKW-D71

$215.47

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND

51416-MKL-D81

$6.02

CASE, R. (LOWER)

51420-MKW-D71

$227.39

PIECE, OIL LOCK

51432-MV4-003

$14.02

RING, PISTON (NOT AVAILABLE)

51437-MKL-D81

$5.77

PIPE, SEAT

51440-MKW-D71

$26.87

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT, FR. FORK (NOT AVAILABLE)

51454-MKL-D81

$31.16

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

FORK ASSY., L. FR.

51500-MKW-D71

$498.91

CASE, L. (LOWER)

51520-MKW-D71

$227.39

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL

91251-MKL-D81

$10.67

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
