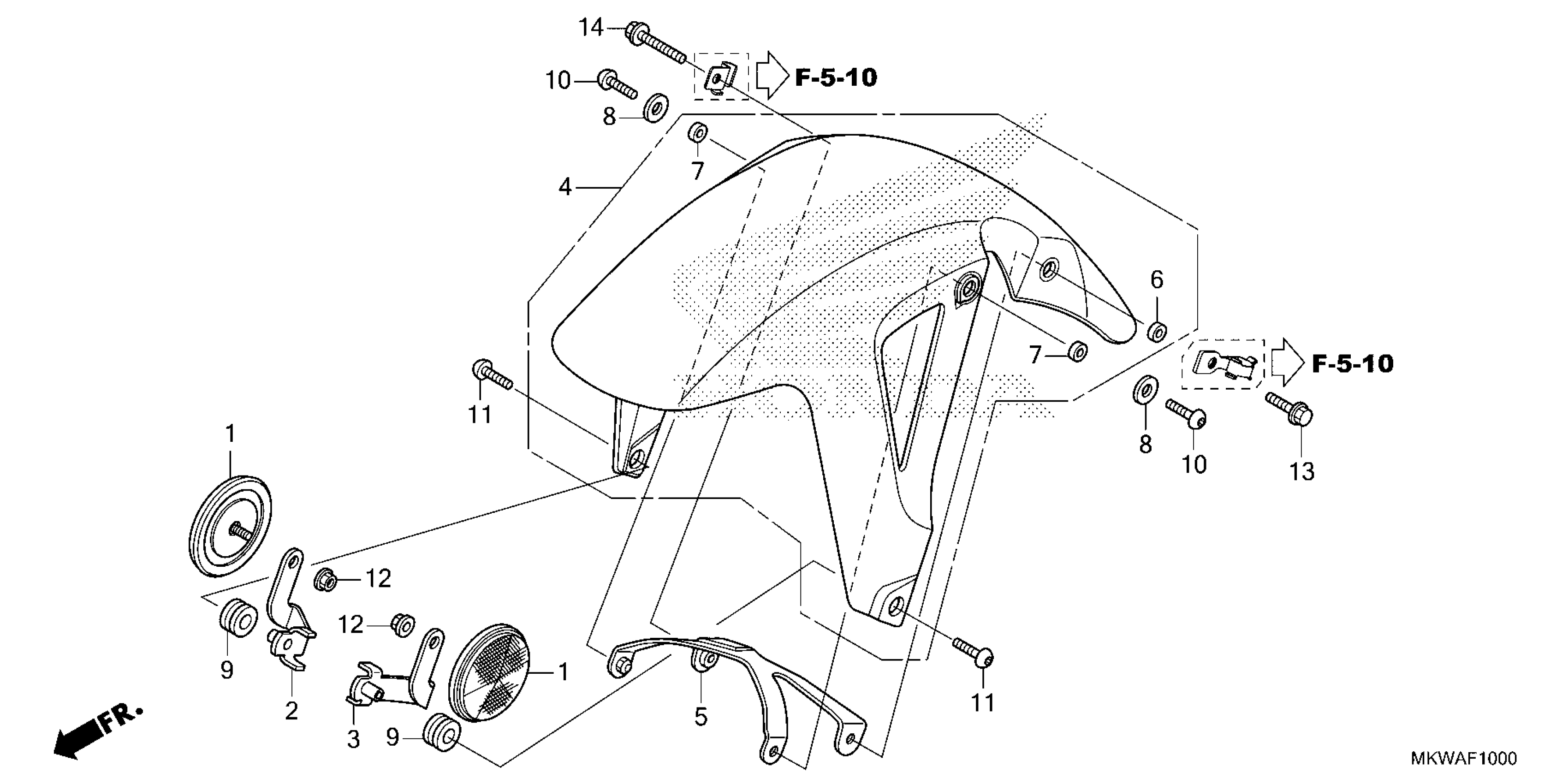

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KAK-971

$9.18

STAY, R. FR. REFLECTOR

33742-MGS-R80

$10.48

STAY, L. FR. REFLECTOR

33743-MGS-R80

$10.48

FENDER, FR. *NHB01* (GRAPHITE BLACK)

61100-MGS-D30ZF

$186.85

BRACE, FR. FENDER

61101-MGS-D30

$24.48

COLLAR, FR. FENDER

61102-MGS-D30

$1.49

COLLAR B, FR. FENDER

61103-MGS-D30

$1.57

WASHER, RUBBER

61104-MGS-D30

$1.49

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

BOLT, SPECIAL (6X22)

90106-MFF-D00

$2.18

SCREW, PAN (6X20)

90118-MEL-000

$1.95

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, FLANGE (6X35)

90013-GHB-700

$2.23
