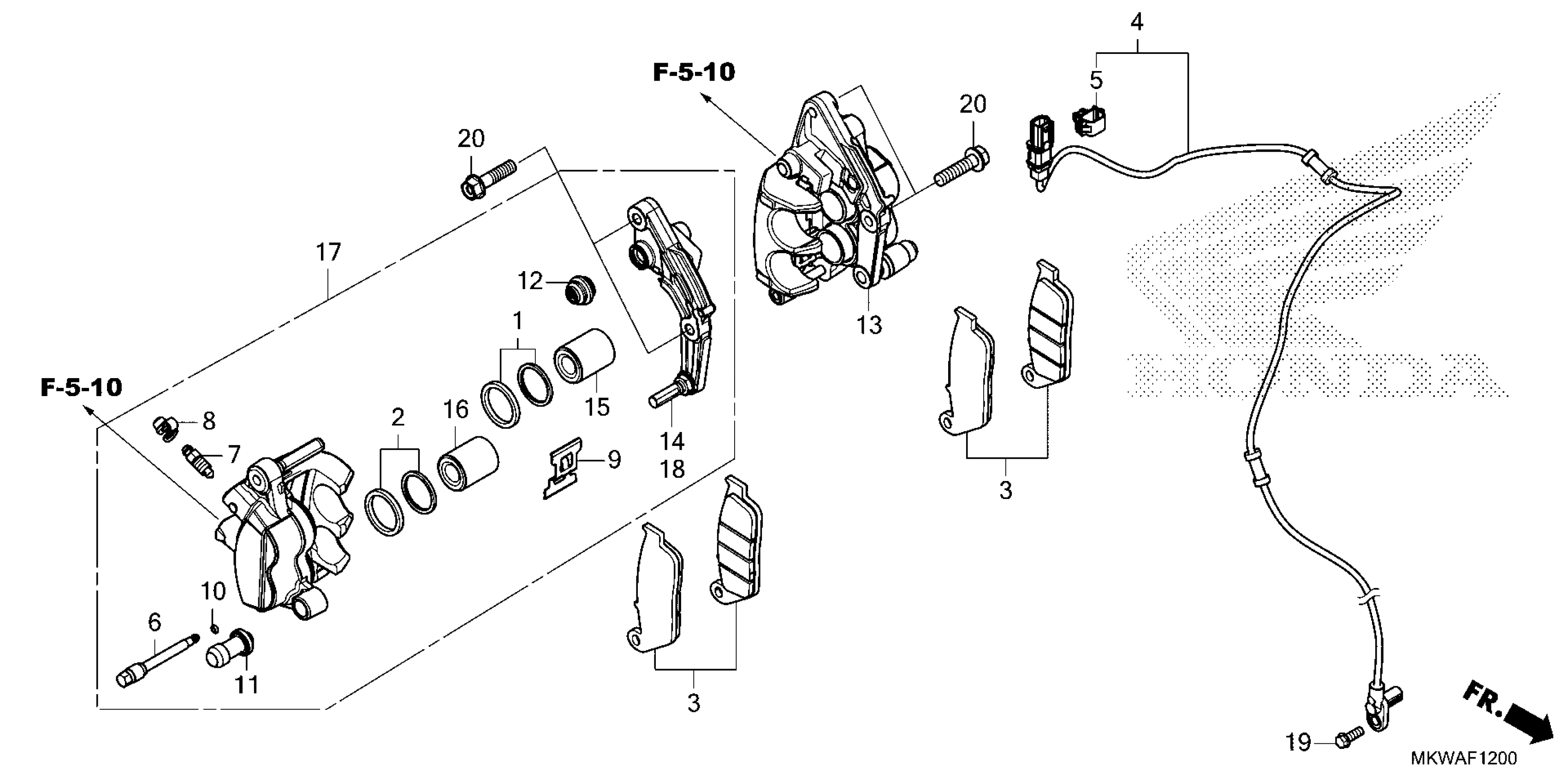

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, FR.

06455-MKW-D71

$48.88

SENSOR, FR. SPEED

38520-MKW-D71

$56.48

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$3.00

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY.

45150-MKW-D71

$211.31

BRACKET SUB-ASSY.

45190-MKP-DQ1

$33.49

PISTON B (25X35)

45217-MAJ-G41

$36.94

PISTON B (27X35)

45218-MAJ-G41

$39.18

CALIPER SUB-ASSY.

45250-MKW-D71

$211.31

BRACKET SUB-ASSY.

45290-MKP-DQ1

$33.49

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.21

BOLT, FLANGE (8X32)

90131-MKW-D70

$2.99
