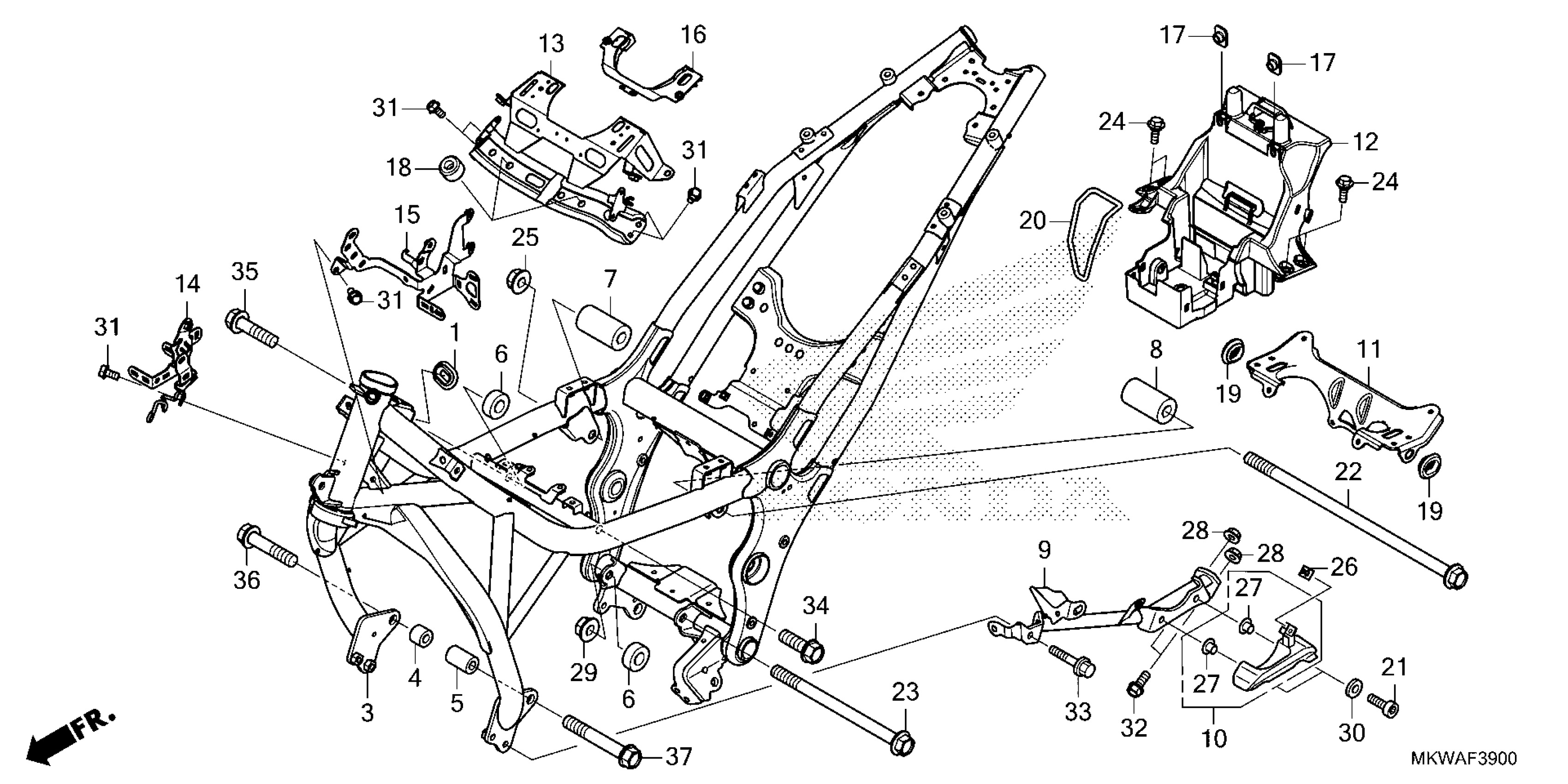

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 FRAME Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.75

3

FRAME *NHA86M*

50100-MKW-D70ZA

$1,621.19

4

COLLAR A, R. ENGINE HANGER

50191-MGS-D10

$7.41

5

COLLAR A, L. ENGINE HANGER

50192-MGS-D10

$11.06

6

COLLAR B, ENGINE HANGER

50193-MGS-D10

$5.13

7

COLLAR C, R. ENGINE HANGER

50194-MKT-D00

$14.69

8

COLLAR C, L. ENGINE HANGER

50195-MKT-D00

$17.49

9

PIPE, GUARD

50196-MKW-D00

$112.62

10

COVER, MOTOR

50197-MGS-D50

$18.57

11

STAY, FR. TANK

50230-MKW-D00

$28.69

12

BRACKET, CENTER CROSS

50234-MKW-D00

$42.32

13

PLATE B, CROSS

50236-MKW-D70

$61.56

14

STAY, R. AIR CLEANER HOUSING

50237-MKW-D00

$26.82

15

STAY, L. AIR CLEANER HOUSING

50238-MKW-D00

$29.88

16

RUBBER, CROSS PLATE

50239-MGS-D30

$7.16

17

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

18

RUBBER, SEAT SETTING

77206-GF0-000

$5.21

19

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

20

BAND, TOOL

83606-KWS-901

$3.25

21

BOLT, SOCKET (8X25)

90102-MN8-700

$3.96

22

BOLT, FLANGE (12X276)

90103-MGS-D30

$18.10

23

BOLT, FLANGE (12X168)

90104-MGS-D30

$11.21

24

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.83

25

NUT, FLANGE (12MM)

90364-MEJ-000

$1.59

26

NUT, CLIP (5MM)

90677-KAN-961

$3.89

27

COLLAR

91501-MGS-D30

$2.81

28

NUT, FLANGE (8MM)

94050-08070

$1.38

29

NUT, FLANGE (12MM)

94050-12000

$0.96

30

WASHER, PLAIN (8MM)

94101-08700

$0.91

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

32

BOLT, FLANGE (8X20)

95701-08020-07

$1.72

33

BOLT, FLANGE (8X22)

95701-08022-08

$1.94

34

BOLT, FLANGE (12X35)

95701-12035-08

$3.97

35

BOLT, FLANGE (12X45)

95701-12045-08

$2.54

36

BOLT, FLANGE (12X55)

95701-12055-08

$4.07

37

BOLT, FLANGE (12X80)

95701-12080-08

$4.07
