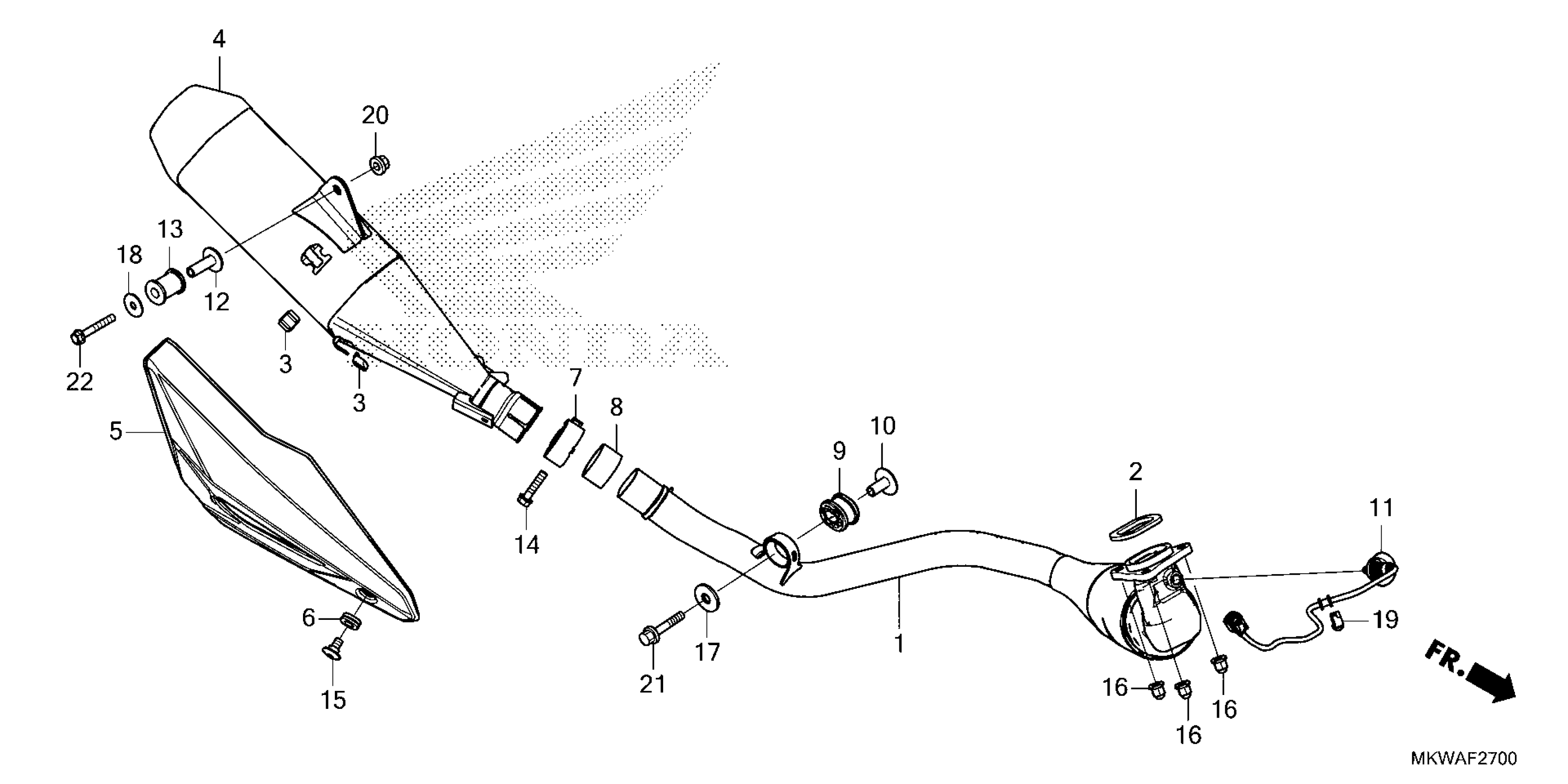

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 EXHAUST MUFFLER Diagram

PIPE COMP, EX.

18150-MKW-G61

$720.22

GASKET, EX. PIPE

18291-MGS-D31

$10.46

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

MUFFLER

18310-MKW-D71

$329.40

COVER, MUFFLER

18342-MKA-D81

$66.72

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$35.97

GASKET, MUFFLER

18392-MK4-000

$12.54

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.10

SENSOR, AIR FUEL RATIO

36533-MKW-D01

$216.82

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.42

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$5.95

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

NUT, CAP (8MM)

90304-ME1-670

$5.68

WASHER (8MM)

90501-819-000

$1.38

WASHER (8.5X28)

90534-MV4-000

$2.66

CLIP, HARNESS

90683-MGC-920

$2.88

NUT, FLANGE (8MM)

94050-08080

$0.87

BOLT, FLANGE (8X45)

96300-08045-04

$1.40

BOLT, FLANGE (8X50)

96300-08050-04

$1.65
