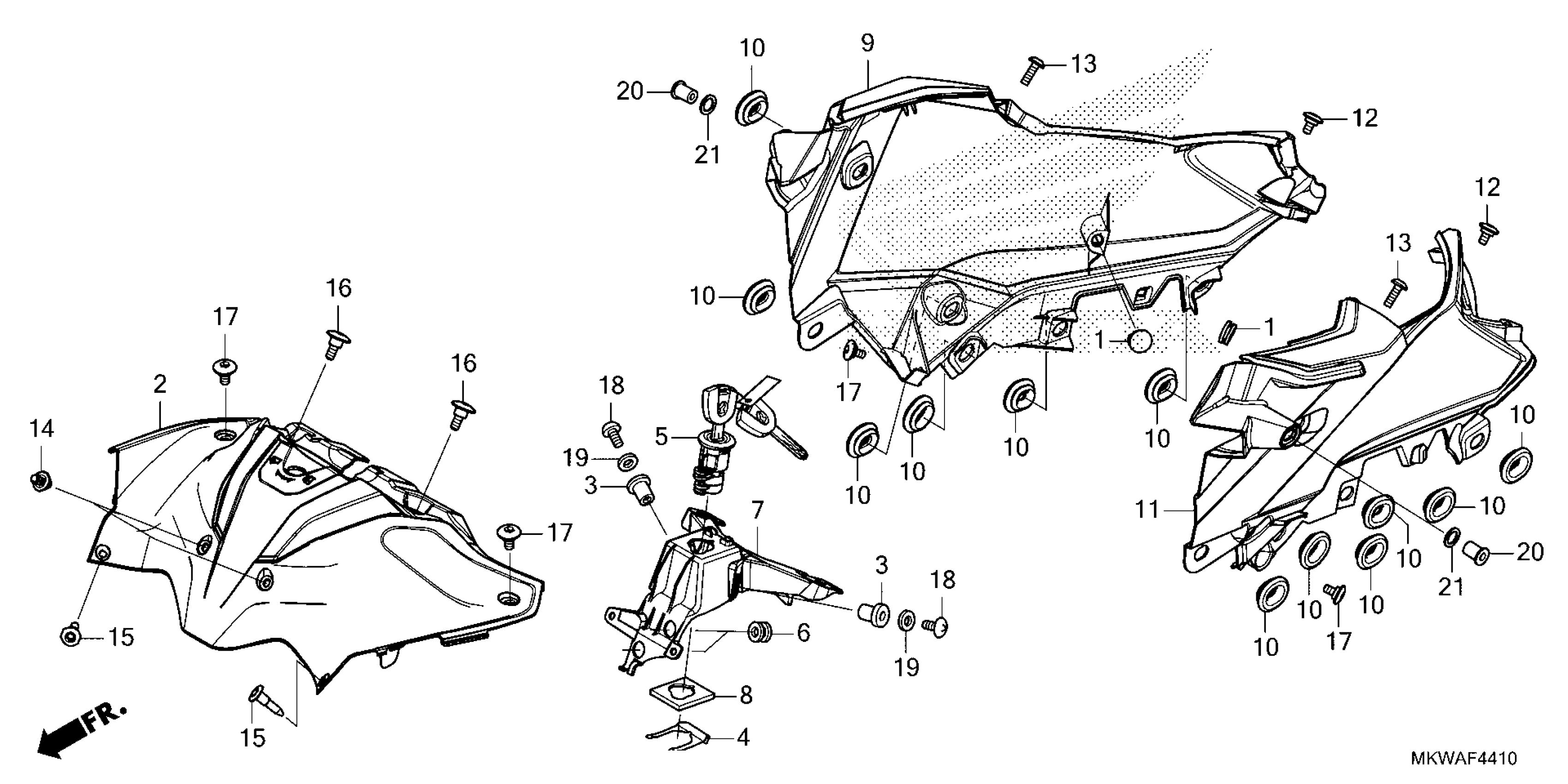

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 CENTER COVER@SHELTER Diagram

PLUG, HOLE

50318-041-600

$2.04

COWL, CENTER

64141-MKW-D00

$53.51

NUT, WELL (5MM)

64528-KV3-000

$8.13

PLATE, LOCK KEY SETTING

75581-MGP-D60

$3.75

KEY, SEAT LOCK

77239-MKA-D83

$111.59

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.56

STAY, KEY LOCK

81331-MKW-D00

$12.24

PLATE, KEY CYLINDER

81335-MKA-N60

$5.06

SHELTER, R. *NHB54P*

83521-MKW-D70ZC

$221.69

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

SHELTER, L. *NHB54P*

83621-MKW-D70ZC

$221.69

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

SCREW, TRUSS (5X16)

90103-MKW-D00

$1.88

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

SCREW, SPECIAL (5X14)

90117-MJK-N20

$2.29

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.29

SCREW, PAN (5X12)

93500-05012-0H

$0.84

WASHER, PLAIN (5MM)

94101-05000

$0.91

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

WASHER, NYLON (9MM)

90507-ZV1-000

$1.85
