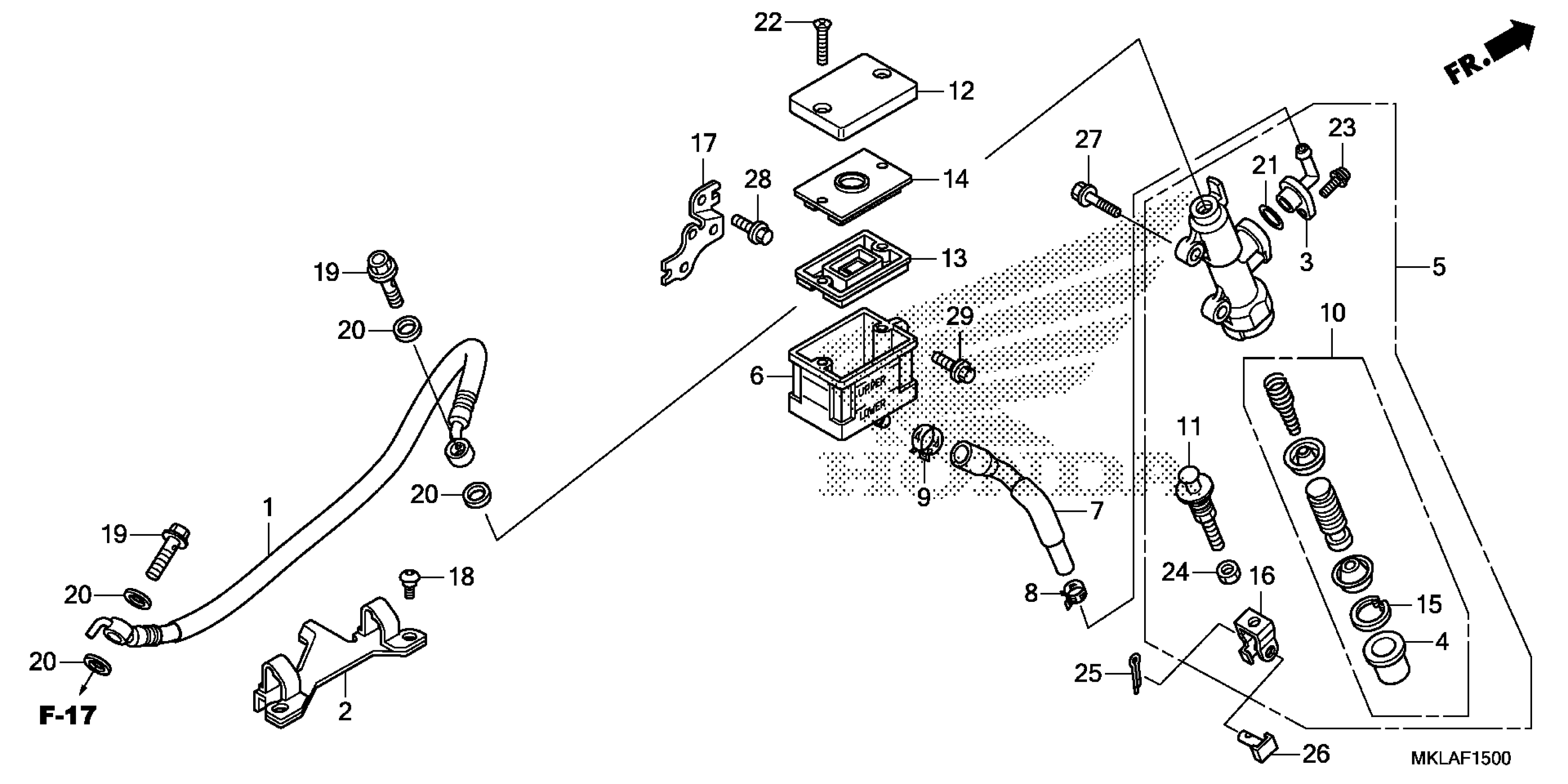

Honda NC750XAC (20) MOTORCYCLE, JPN, VIN# JH2RC901-LK200001 REAR BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MJH-Y01

$49.62

2

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$15.10

3

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

4

BOOT

43504-MB2-006

$9.01

5

M/CYL SUB-ASSY, RR.

43510-MGS-D31

$191.52

6

CUP, OIL

43511-KT8-006

$32.58

7

HOSE, RR. MASTER CYLINDER

43512-MGS-D31

$17.64

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

11

ROD, PUSH

43530-MJ0-006

$18.94

12

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

12

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

13

DIAPHRAGM

45520-MG7-006

$9.52

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

15

CIRCLIP

46182-MEL-D21

$1.77

16

JOINT, BRAKE ROD

46504-KV6-702

$7.30

17

STAY, OIL CUP

50601-MGS-D30

$4.52

18

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

O-RING (14.8X2.4)

91212-422-006

Unavailable

22

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

23

SCREW-WASHER (4X12)

93893-04012-07

$1.22

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

24

NUT, HEX. (8MM)

94002-08000-0S

$1.19

25

PIN, COTTER (2.0X15)

94201-20150

$0.94

26

PIN D, JOINT

95015-54000

$3.95

27

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
