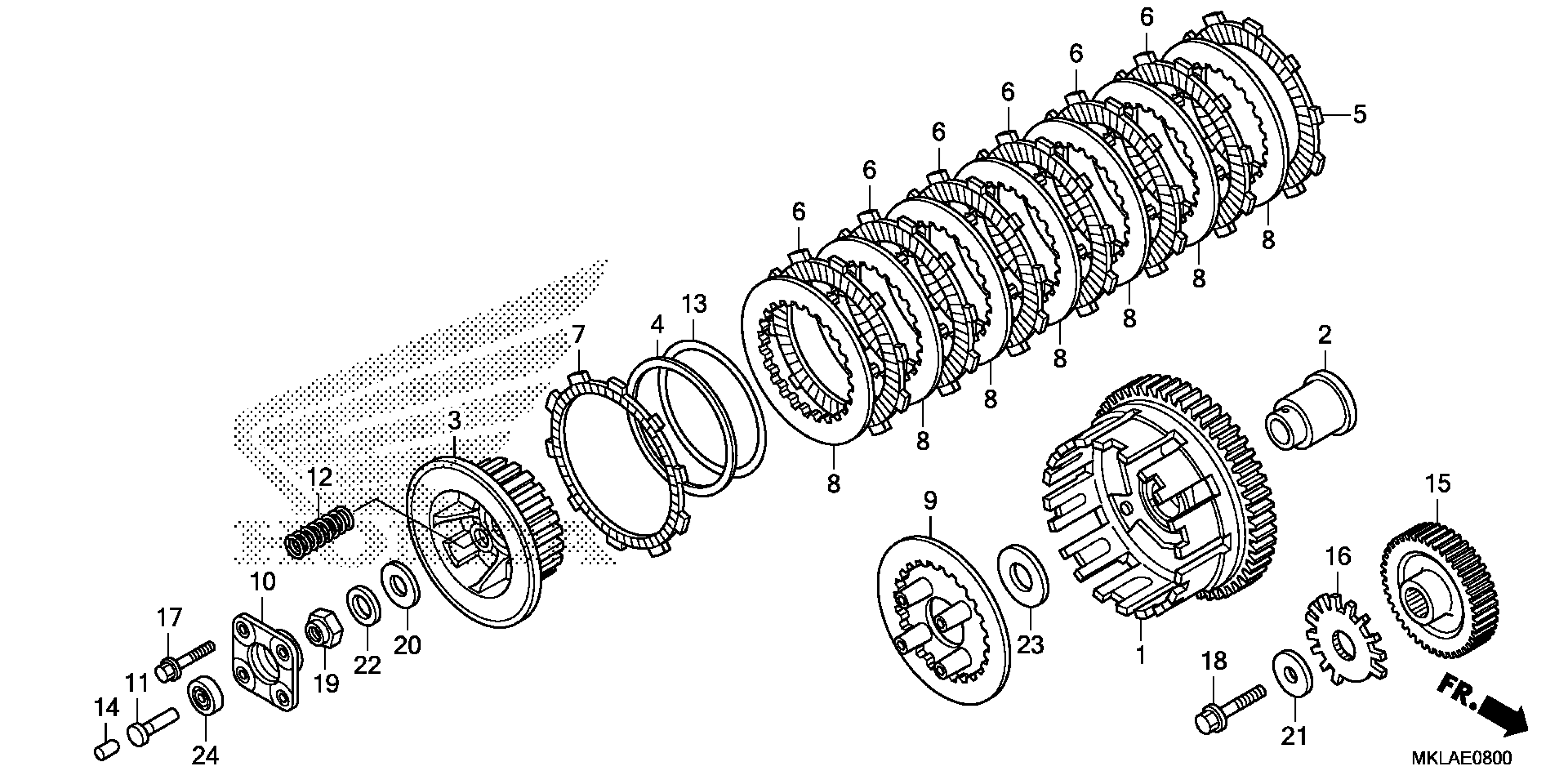

Honda NC750XAC (20) MOTORCYCLE, JPN, VIN# JH2RC901-LK200001 CLUTCH (1) Diagram

#

Description
Price

1

CLUTCH OUTER (71T)

22100-MGS-D30

$368.30

2

GUIDE, CLUTCH (OUTER)

22116-MGS-D30

$34.39

3

CENTER, CLUTCH (24T)

22120-MKA-D30

$88.17

4

SEAT, JUDDER SPRING

22125-MJL-D30

$8.20

5

DISK, CLUTCH FRICTION

22201-MAV-000

$11.69

6

DISK, CLUTCH FRICTION

22201-MEW-920

$12.60

7

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.37

8

PLATE, CLUTCH

22321-MJH-Y00

$10.84

9

PLATE, CLUTCH PRESSURE

22350-MS6-922

$53.91

10

PLATE, CLUTCH LIFTER

22361-MR1-000

$19.01

11

ROD, CLUTCH CENTER

22366-MFF-D00

$10.78

12

SPRING, CLUTCH

22401-MJL-D30

$4.52

13

SPRING, JUDDER

22402-MJL-D31

$42.58

14

ROD, CLUTCH LIFTER

22847-MFF-D00

$6.13

15

GEAR, PRIMARY DRIVE (41T)

23103-MGS-D30

$133.84

16

ROTOR, PULSE

30291-MGS-D30

$7.30

17

BOLT, FLANGE (6X35)

90007-MJH-Y01

$2.77

18

BOLT, FLANGE (10MM)

90023-MBW-000

$8.91

19

NUT, LOCK (18MM)

90236-HA0-000

$9.38

20

WASHER (18MM)

90401-MZ8-B40

$2.30

21

WASHER (10.5X36X4)

90414-MGE-D00

$2.42

22

WASHER, LOCK

90432-428-000

$7.05

23

WASHER, THRUST (22MM)

90452-471-000

$4.45

24

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
