Description

Price

1

MAINSHAFT (16T)

23211-MKA-D30

$213.21

2

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$2.96

3

COUNTERSHAFT

23220-MKA-D30

$226.96

4

GEAR, COUNTER FIRST (45T)

23421-MGS-D30

$166.26

5

GEAR, MAINSHAFT SECOND (19T)

23431-MGS-D30

$66.88

6

GEAR, COUNTERSHAFT SECOND (36T)

23441-MGS-D30

$131.78

7

COLLAR (28MM)

23442-MM4-000

$20.44

8

GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)

23451-MGS-D30

$158.12

9

GEAR, COUNTERSHAFT THIRD (32T)

23461-MGS-D30

$87.19

10

GEAR, COUNTER FOURTH (30T)

23481-MGS-D30

$79.12

11

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$17.72

12

GEAR, MAINSHAFT FIFTH (30T)

23491-MGS-D30

$87.19

13

COLLAR (25X28X19)

23492-MGS-D30

$8.44

14

GEAR, COUNTERSHAFT FIFTH (31T)

23501-MGS-D30

$156.09

15

GEAR, MAINSHAFT SIXTH (37T)

23511-MGS-D30

$98.32

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$25.06

17

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGS-D30

$135.81

18

SPROCKET (17T)

23801-MKA-D30

$61.81

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.02

20

BOLT, SPECIAL (10MM)

90037-422-003

$6.99

21

WASHER, THRUST (24X32X1.5)

90402-MEW-920

$2.09

22

WASHER A, THRUST (20MM)

90451-704-000

$2.96

23

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.65

24

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

25

WASHER, THRUST (25MM)

90456-MA6-000

$2.46

26

WASHER (10.2MM)

90459-438-000

$5.57

27

WASHER, SPLINE (25MM)

90461-MW0-000

$5.13

28

WASHER, LOCK (25MM)

90462-MBW-000

$6.31

29

WASHER, SPLINE (28MM)

90463-MR7-000

$9.76

30

WASHER, LOCK (28MM)

90464-MR7-000

$9.76

31

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.44

32

CIRCLIP (25MM)

90601-107-000

$3.58

33

CIRCLIP (28MM)

90603-MN4-000

$3.58

34

BEARING, RADIAL BALL (31X68X15)

91001-MGS-D31

$19.54

35

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$16.01

36

BEARING, NEEDLE (20MM) (NTN)

91022-MJE-DB1

$40.38

37

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$10.04

38

OIL SEAL (34X62X8)

91207-KT8-003

$11.73

39

RING, SNAP (62MM)

94560-62200

$3.88

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

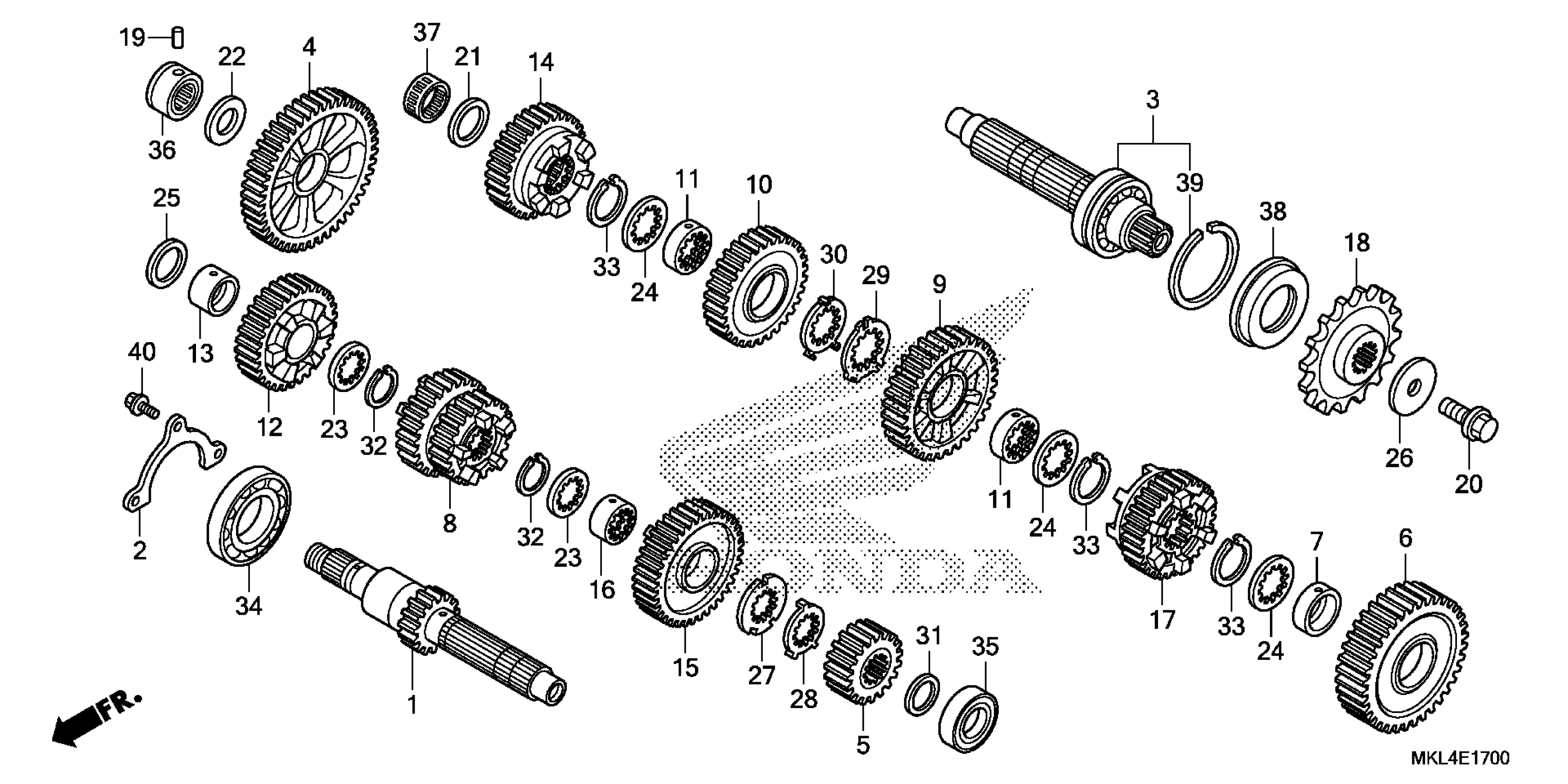

Honda NC750XAC (19) MOTORCYCLE, JPN, VIN# JH2RC901-KK100001 TRANSMISSION (NC750X/XA) Diagram
