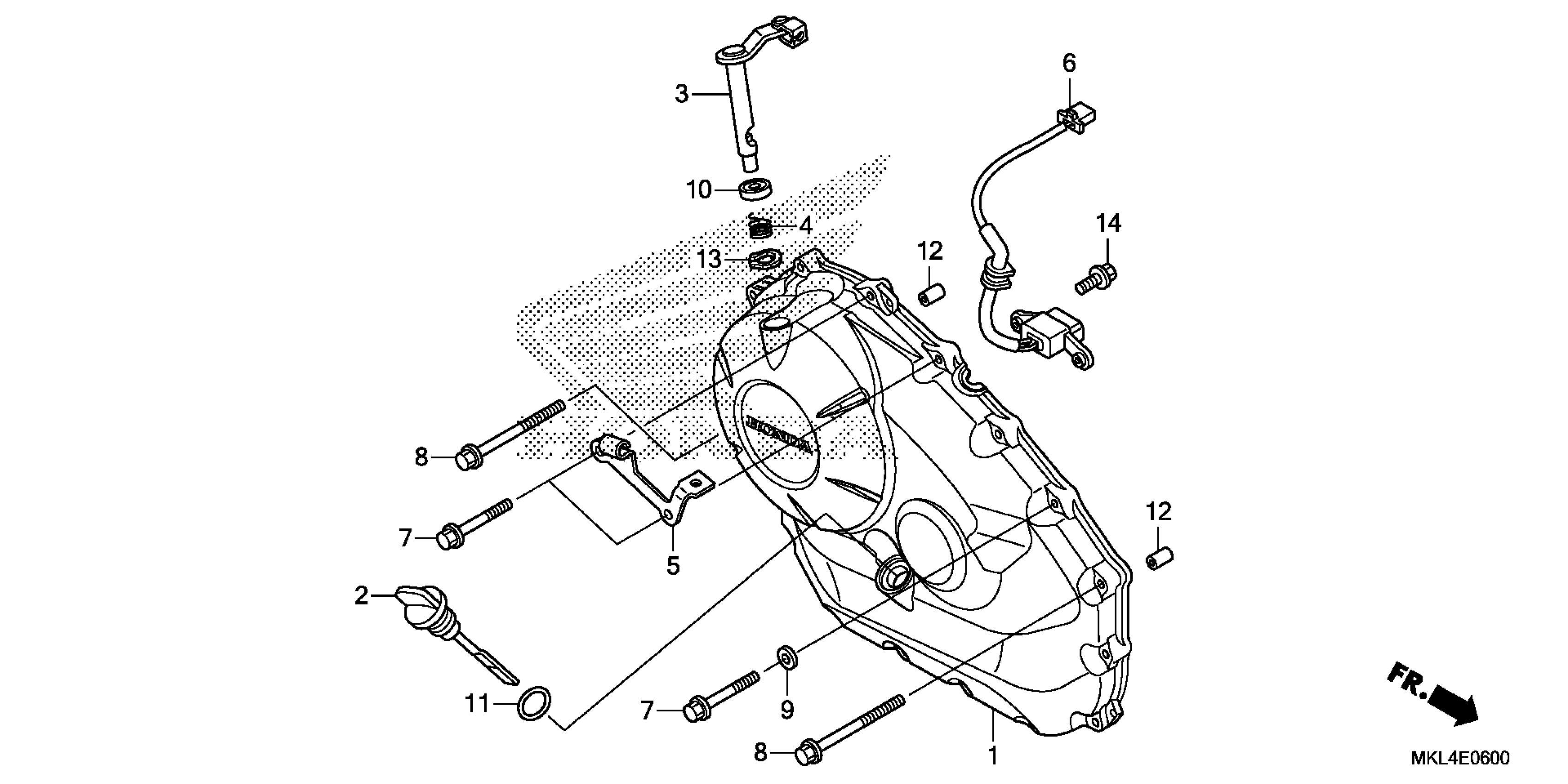

Honda NC750XAC (19) MOTORCYCLE, JPN, VIN# JH2RC901-KK100001 RIGHT CRANKCASE COVER (1) Diagram

#

Description

Price

1

COVER, R. CRANKCASE

11330-MJL-D30

$309.90

2

DIPSTICK, OIL

15650-MGS-D30

$28.61

3

LEVER, CLUTCH

22810-MKA-D31

$54.08

4

SPRING, CLUTCH LEVER

22815-413-000

$3.08

5

RECEIVER, CLUTCH CABLE

22821-MJF-A00

$11.26

6

GENERATOR ASSY., PULSE (TOYO)

30300-MGS-D31

$119.92

7

BOLT, FLANGE (6X28)

90027-GHB-690

$2.33

8

BOLT, FLANGE (6X40)

90027-GHB-740

$2.72

9

WASHER, SEALING (6MM)

90488-425-000

$2.28

10

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

11

O-RING (18X3)

91307-035-000

$2.92

12

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

13

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

14

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
