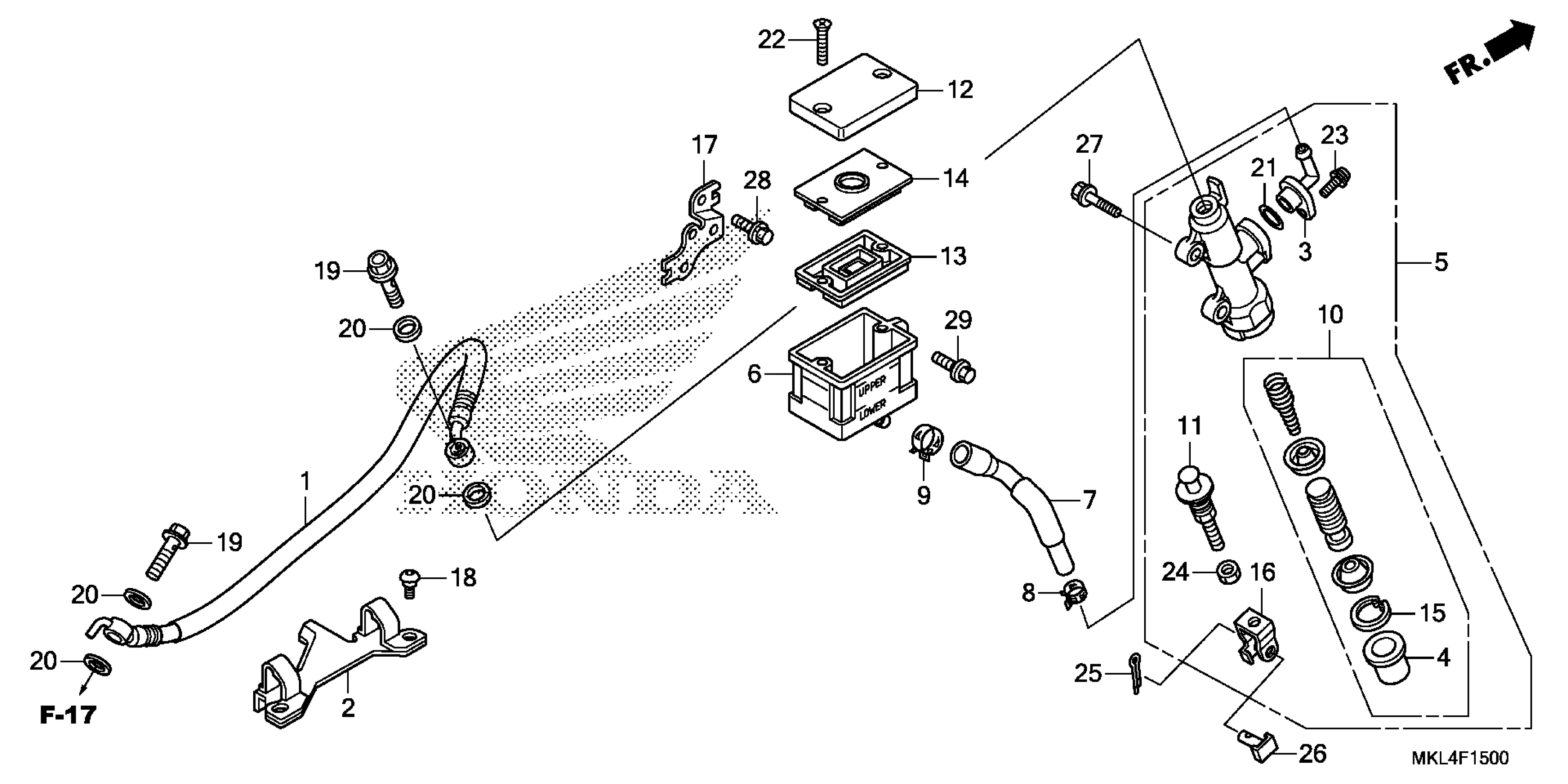

Honda NC750XAC (19) MOTORCYCLE, JPN, VIN# JH2RC901-KK100001 REAR BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MJH-Y01

$54.49

2

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$16.59

3

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

4

BOOT

43504-MB2-006

$10.04

5

M/CYL SUB-ASSY, RR.

43510-MGS-D31

$210.31

6

CUP, OIL

43511-KT8-006

$35.77

7

HOSE, RR. MASTER CYLINDER

43512-MGS-D31

$19.36

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

11

ROD, PUSH

43530-MJ0-006

$20.80

12

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

12

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

13

DIAPHRAGM

45520-MG7-006

$10.61

14

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-KV6-702

$7.84

17

STAY, OIL CUP

50601-MGS-D30

$4.97

18

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

PIN, COTTER (2.0X15)

94201-20150

$1.49

26

PIN D, JOINT

95015-54000

$4.24

27

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
