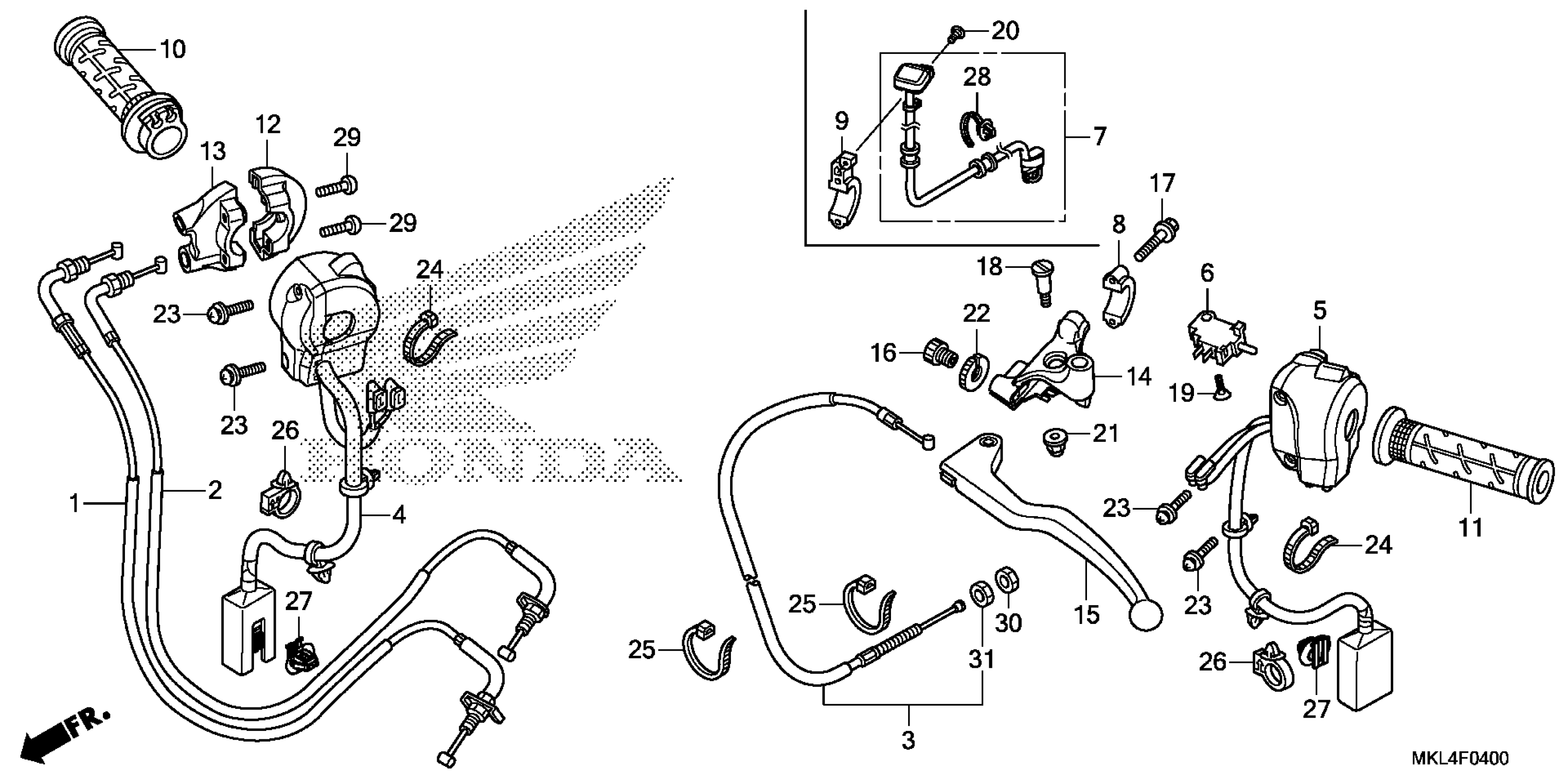

Honda NC750XAC (19) MOTORCYCLE, JPN, VIN# JH2RC901-KK100001 HANDLE LEVER@SWITCH@CABLE (NC750X/XA) Diagram

CABLE A, THROTTLE

17910-MKA-D81

$30.85

CABLE B, THROTTLE

17920-MKA-D81

$30.85

CABLE, CLUTCH

22870-MKA-D81

$23.87

SWITCH ASSY., ENGINE STOP

35130-MKA-D81

$146.20

SWITCH, TURN SIGNAL

35200-MJL-A32

$44.15

SWITCH ASSY., CLUTCH

35330-MCJ-751

$8.25

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$16.86

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$17.98

HOLDER, CLUTCH LEVER

53172-MKA-D80

$36.08

LEVER, L. HANDLE (COO) This part replaces 53178-MJE-D00.

53178-MJE-305

$19.75

LEVER, L. HANDLE (COO)

53178-MJE-305

$19.75

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.04

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

BAND, WIRE

90650-KW3-000

$4.48

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

SCREW, PAN (5X22)

93500-05022-0G

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

NUT, HEX. (8MM)

94031-08070

$1.49
