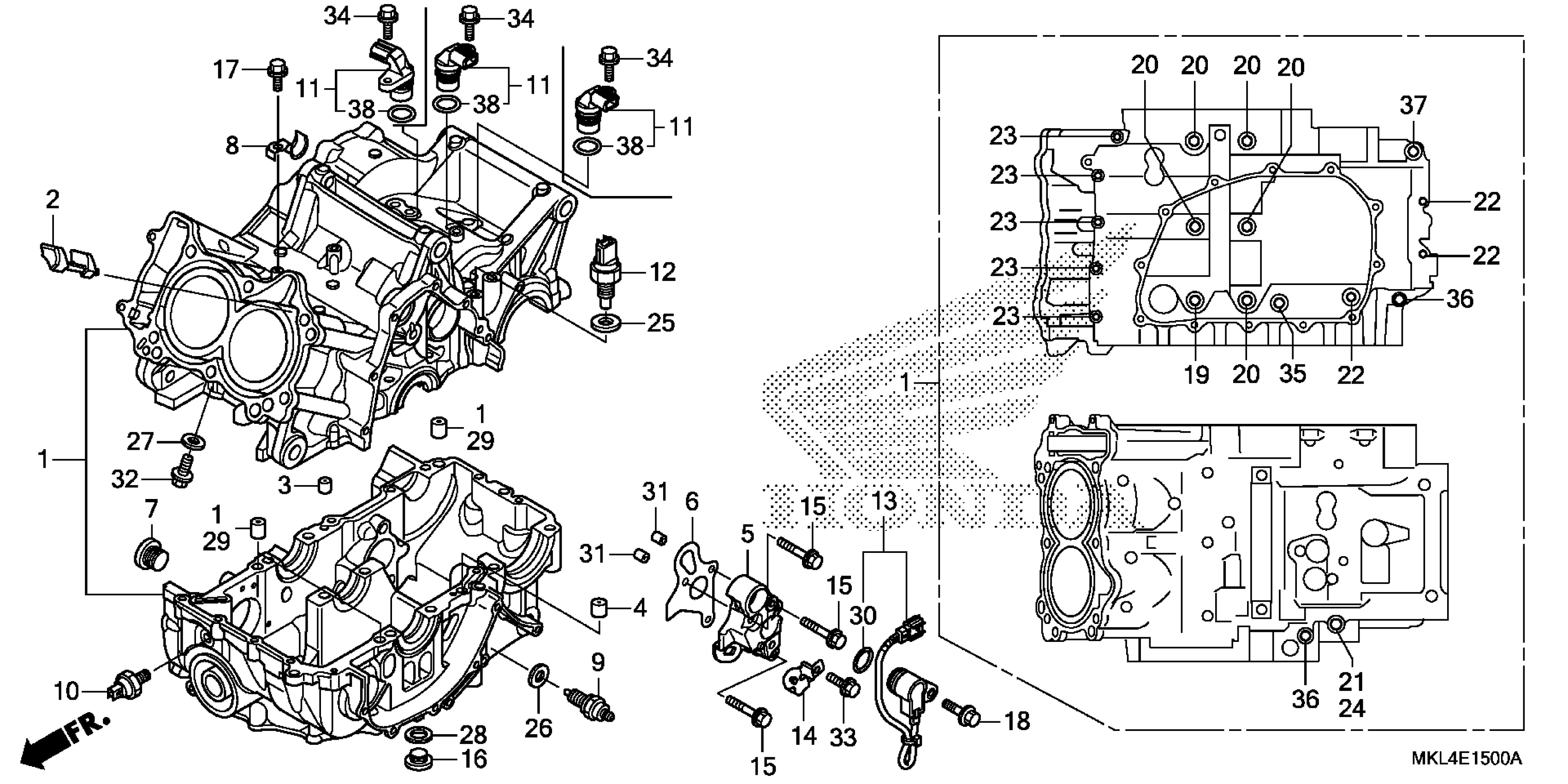

Honda NC750XAC (19) MOTORCYCLE, JPN, VIN# JH2RC901-KK100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MKA-D30

$2,383.67

2

PLATE, PARTITION

11103-MGS-D31

$5.72

3

ORIFICE (1.1MM)

11207-MFL-000

$3.75

4

ORIFICE (1.5MM)

11207-MGS-D30

$4.13

5

HOLDER, ANGLE SENSOR

11521-MJL-D30

$43.39

6

GASKET, CHANGE SWITCH

11522-MJL-D30

$7.23

7

BOLT, SEALING (20MM)

12208-PR3-000

$9.11

8

STAY, FUEL HOSE

17640-MGS-D30

$4.54

9

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$21.16

10

SWITCH ASSY., OIL PRESSURE

37241-RNA-A01

$87.02

11

SENSOR ASSY., SPEED

37700-K48-A01

$59.61

13

SENSOR ASSY., ANGLE (350DEGREE)

38800-MJL-D11

$199.66

14

STAY, ANGLE SENSOR WIRE

38815-MJL-D10

$3.28

15

BOLT, FLANGE (6X28)

90001-MGS-D20

$1.95

16

BOLT, SEALING (12X8)

90002-RGA-000

$6.36

17

BOLT, FLANGE (6X16)

90004-MGS-D30

$1.49

18

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

19

BOLT, FLANGE (9X150)

90015-MGS-D31

$13.21

20

BOLT, FLANGE (9X125)

90016-MFA-D01

$4.80

21

BOLT, FLANGE (8X100)

90021-MGS-D30

$3.34

22

BOLT, SPECIAL (6X45)

90021-MJL-D30

$3.26

23

BOLT, SPECIAL (6X32)

90022-MJL-D30

$2.75

24

WASHER, SEALING (8MM)

90442-028-000

$1.77

26

WASHER, NEUTRAL

90443-MJ6-000

$1.92

27

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

28

WASHER (12MM)

90545-KF0-000

$3.26

29

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

30

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

31

PIN A, DOWEL (8X10)

94301-08100

$2.25

32

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

33

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

34

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

35

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

36

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

37

BOLT, FLANGE (10X70)

95701-10070-00

$2.09

38

O-RING B

91303-MKH-D21

$2.61
