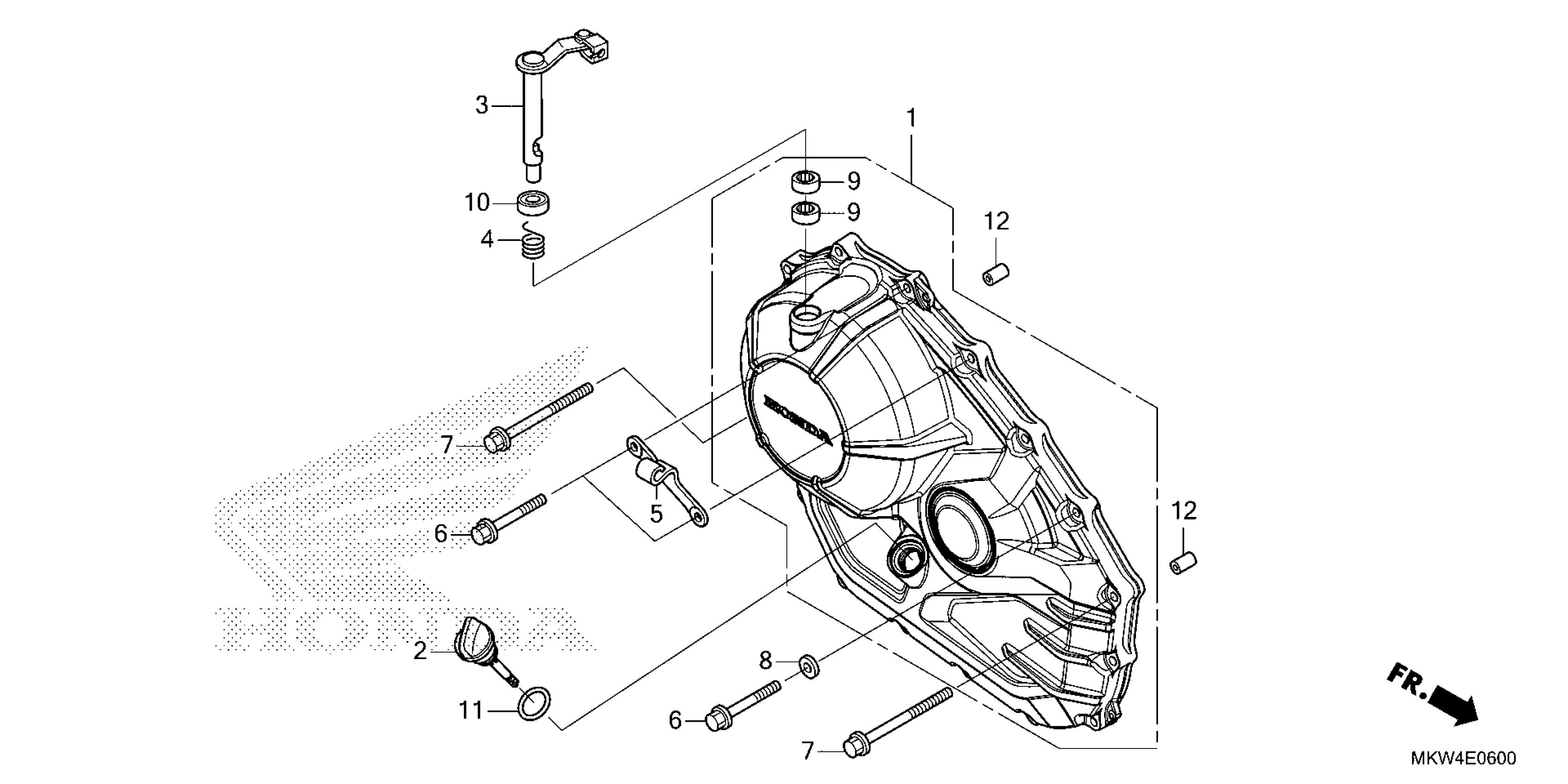

Honda NC750XAAC (21) MOTORCYCLE, JPN, VIN# JH2RH090-MK000001 TO JH2RH090-MK099999 RIGHT CRANKCASE COVER (1) Diagram

COVER, R. CRANKCASE

11330-MKW-D00

$261.10

DIPSTICK, OIL

15651-MKW-D00

$7.94

LEVER, CLUTCH

22810-MKW-D00

$44.72

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.01

RECEIVER, CLUTCH CABLE

22821-MKW-D00

$6.57

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

BOLT, FLANGE (6X40) (S-NSHF)

90028-GHB-740

$2.16

WASHER, SEALING (6MM)

90488-425-000

$2.10

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.08

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

O-RING (18X3)

91307-035-000

$2.75

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
