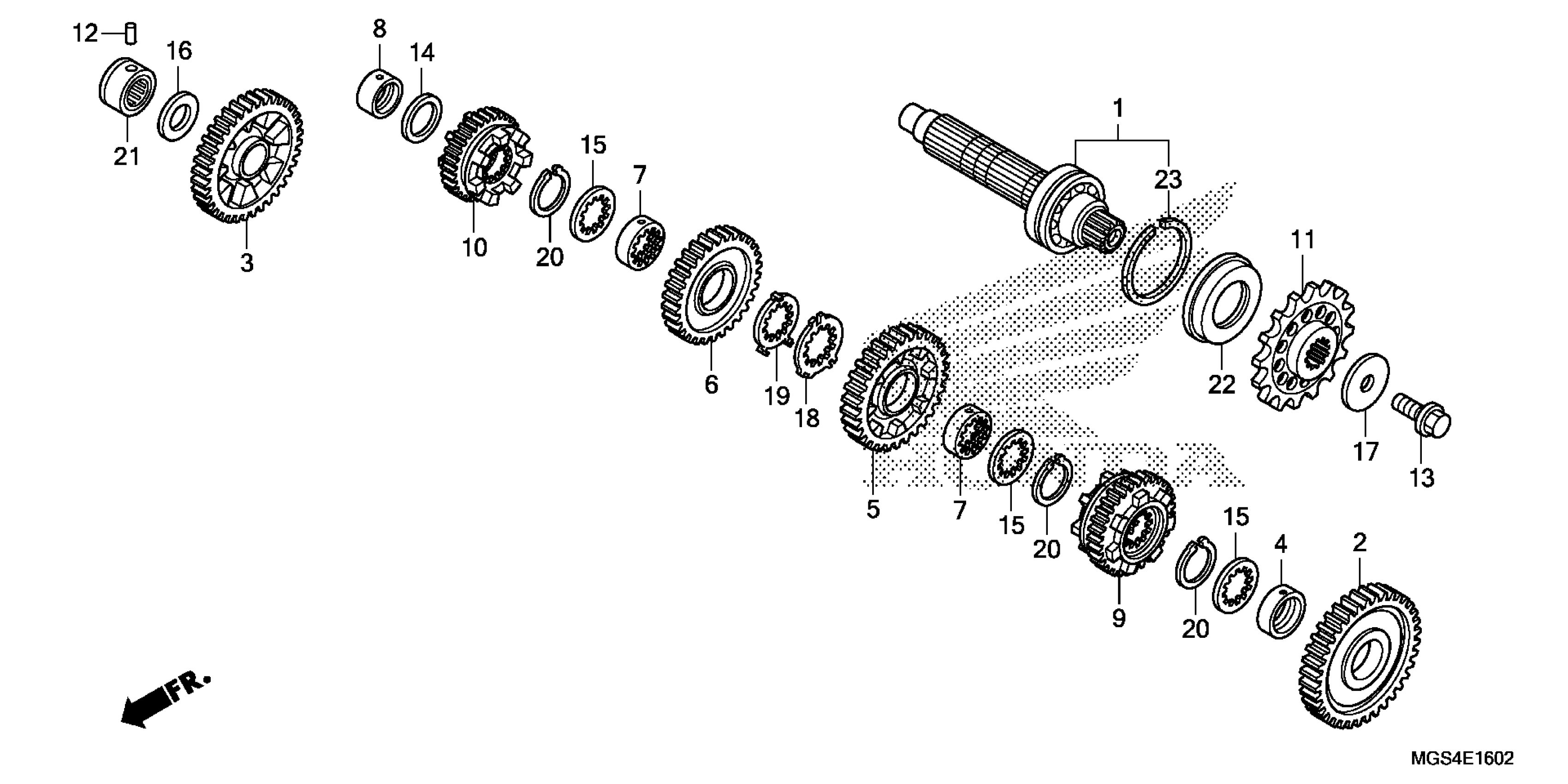

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 TRANSMISSION (NC700XD) (COUNTERSHAFT) Diagram

COUNTERSHAFT

23220-MGS-D20

$281.43

GEAR, COUNTERSHAFT FIRST (40T)

23421-MGS-D20

$179.26

GEAR, COUNTERSHAFT SECOND (40T)

23441-MGS-D20

$151.30

COLLAR (28MM)

23442-ML7-000

$27.93

GEAR, COUNTERSHAFT THIRD (32T)

23461-MGS-D20

$100.10

GEAR, COUNTERSHAFT FOURTH (30T)

23481-MGS-D20

$90.84

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

COLLAR (22X13)

23495-KY1-000

$20.90

GEAR, COUNTERSHAFT FIFTH (31T)

23501-MGS-D20

$179.26

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGS-D20

$156.00

SPROCKET, DRIVE (16T)

23801-MGS-D30

$64.00

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, THRUST (22X30X1)

90452-KZ4-000

$5.05

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (20MM)

90458-292-000

$3.54

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

CIRCLIP (28MM)

90603-MN4-000

$4.11

BEARING, NEEDLE (20MM) (NTN) This part replaces 91022-KT7-003.

91022-MJE-DB1

$45.02

OIL SEAL (34X62X8)

91207-KT8-003

$12.78

RING, SNAP (62MM)

94560-62200

$3.31
