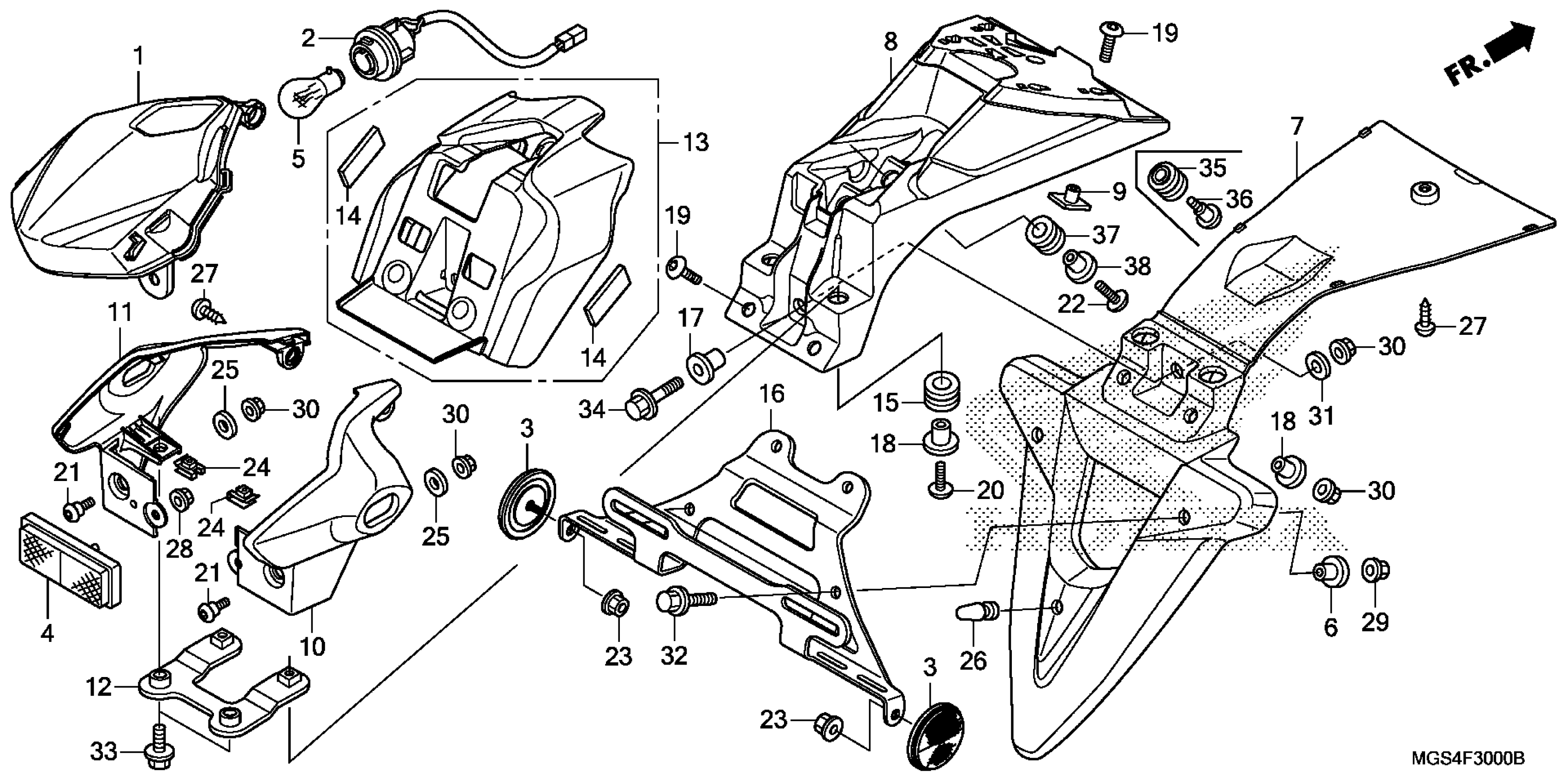

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 TAILLIGHT Diagram

#

Description
Price

1

BASE, TAILLIGHT (COO)

33703-MGS-305

$101.95

2

WIRE, TAILLIGHT

33704-MGS-A31

$21.41

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

4

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

5

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$9.38

6

COLLAR, FR. FENDER (RR.)

61105-KM7-910

$3.10

7

FENDER A, RR.

80100-MJJ-C80

$46.90

8

STAY A, FENDER

80101-MGS-D30

$94.56

9

NUT, RR. FENDER

80104-KJ2-000

$4.08

10

COVER, R. TAILLIGHT

80115-MGS-D30

$18.00

11

COVER, L. TAILLIGHT

80116-MGS-D30

$18.00

12

STAY, TAILLIGHT COVER

80118-MGS-C80

$7.67

13

SPLASH GUARD ASSY., RR. FENDER

80120-MGS-C80

$29.41

14

RUBBER, RR. FRAME

80129-MEG-000

$1.49

15

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

16

BRACKET, NUMBER PLATE

84700-MGS-C80

$30.00

17

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

18

COLLAR, SIDE MOUNTING

90001-961-670

$5.62

19

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.42

20

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.78

21

SCREW, PAN (6X14)

90106-KBV-000

$3.90

23

NUT, U (6MM)

90301-MG3-000

$6.91

24

NUT, CLIP (6MM)

90305-GK8-000

$2.39

25

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

26

PLUG, CONE

90899-MFJ-A00

$3.24

27

SCREW, TAPPING (4X12)

93903-24320

$1.49

28

NUT, FLANGE (5MM)

94050-05000

$1.49

29

NUT, FLANGE (6MM)

94050-06070

$1.49

30

NUT, FLANGE (6MM)

94050-06080

$1.49

31

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

32

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

34

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

35

RUBBER, TAILLIGHT MOUNTING

83545-KZZ-900

$1.64

36

SCREW, PAN (6X16.5)

90113-MGS-D30

$3.05

37

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

38

COLLAR, SIDE MOUNTING

90001-961-670

$5.62
