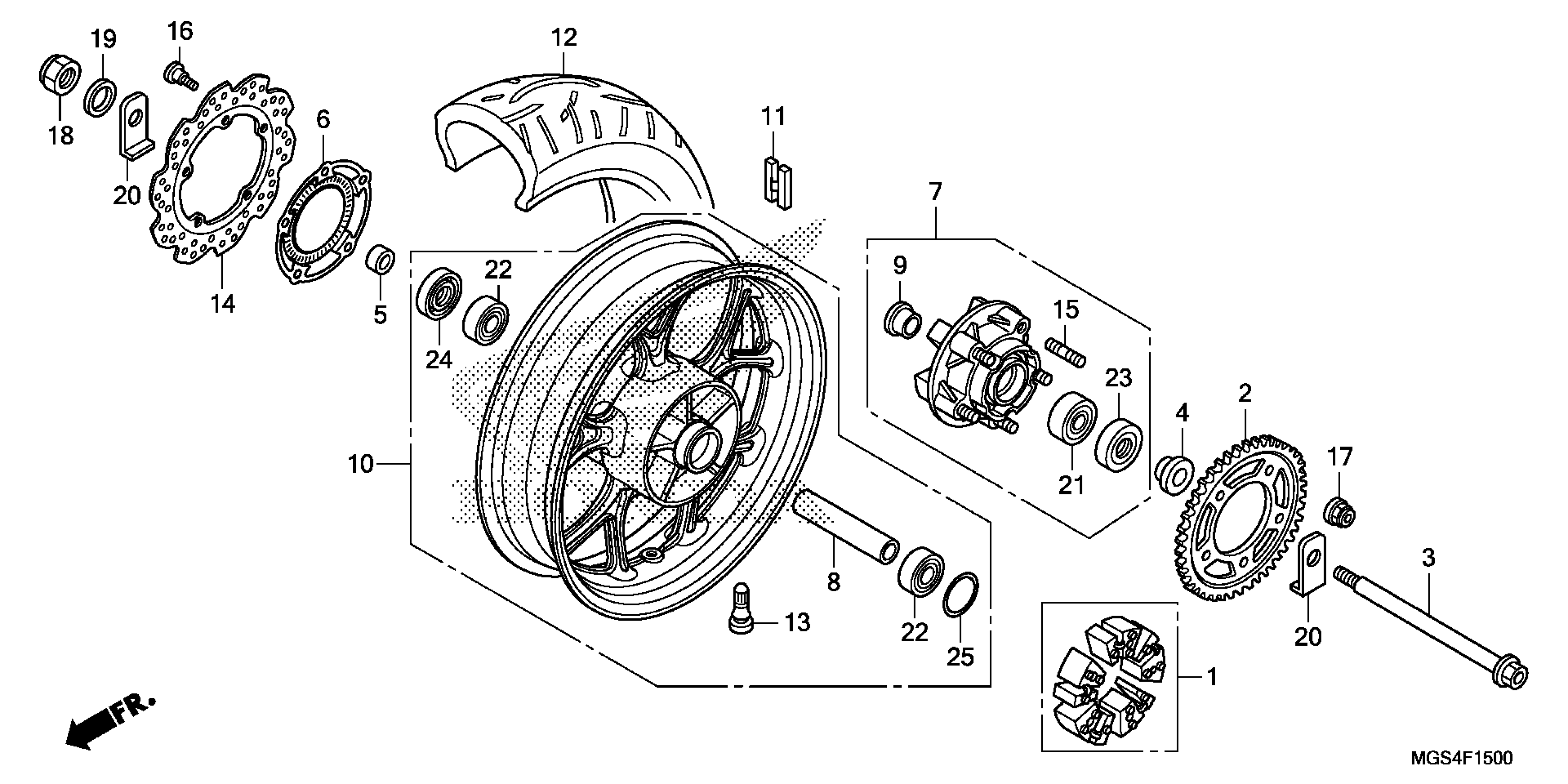

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$52.73

2

SPROCKET, FINAL DRIVEN (39T)

41201-MGS-D70

$71.79

3

AXLE, RR. WHEEL This part replaces 42301-MGS-D30.

42301-MGS-D31

$43.94

4

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$19.60

5

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$14.34

6

RING, RR. PULSER

42515-MGS-D80

$58.21

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGS-D30

$240.12

8

COLLAR, RR. AXLE DISTANCE

42620-MGS-D10

$23.51

9

COLLAR B, RR. WHEEL DISTANCE

42625-MGS-D30

$17.88

10

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-MGS-306.

42650-MGS-316

$806.90

10

WHEEL SUB-ASSY., RR. (COO)

42650-MGS-316

$806.90

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

12

TIRE, RR. (160/60ZR17 M/C 69W) (METZELER) (NOT AVAILABLE)

42711-MGS-D31

Unavailable

12

TIRE, RR. (160/60ZR17 M/C 69W) (BS) This part replaces 42711-MGS-D32.

42711-MGS-D35

$264.17

12

TIRE, RR. (160/60ZR17 M/C 69W) (BS)

42711-MGS-D35

$264.17

13

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$6.72

13

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.69

14

DISK, RR. BRAKE (SUNSTAR)

43251-MGS-D31

$314.28

15

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

16

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

16

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

17

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.68

18

NUT, U (18MM)

90306-MCS-G01

$6.51

19

WASHER (20X31.5X2)

90401-MAS-000

$3.06

20

WASHER, RR. SWINGARM

90559-MER-R60

$4.01

21

BEARING, ANGULAR BALL (22X50X15)

91051-MGS-D31

$34.98

22

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

23

DUST SEAL (30X50X7)

91251-MGS-D31

$11.81

24

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.64

25

O-RING (55X2)

91351-MGS-D30

Unavailable
