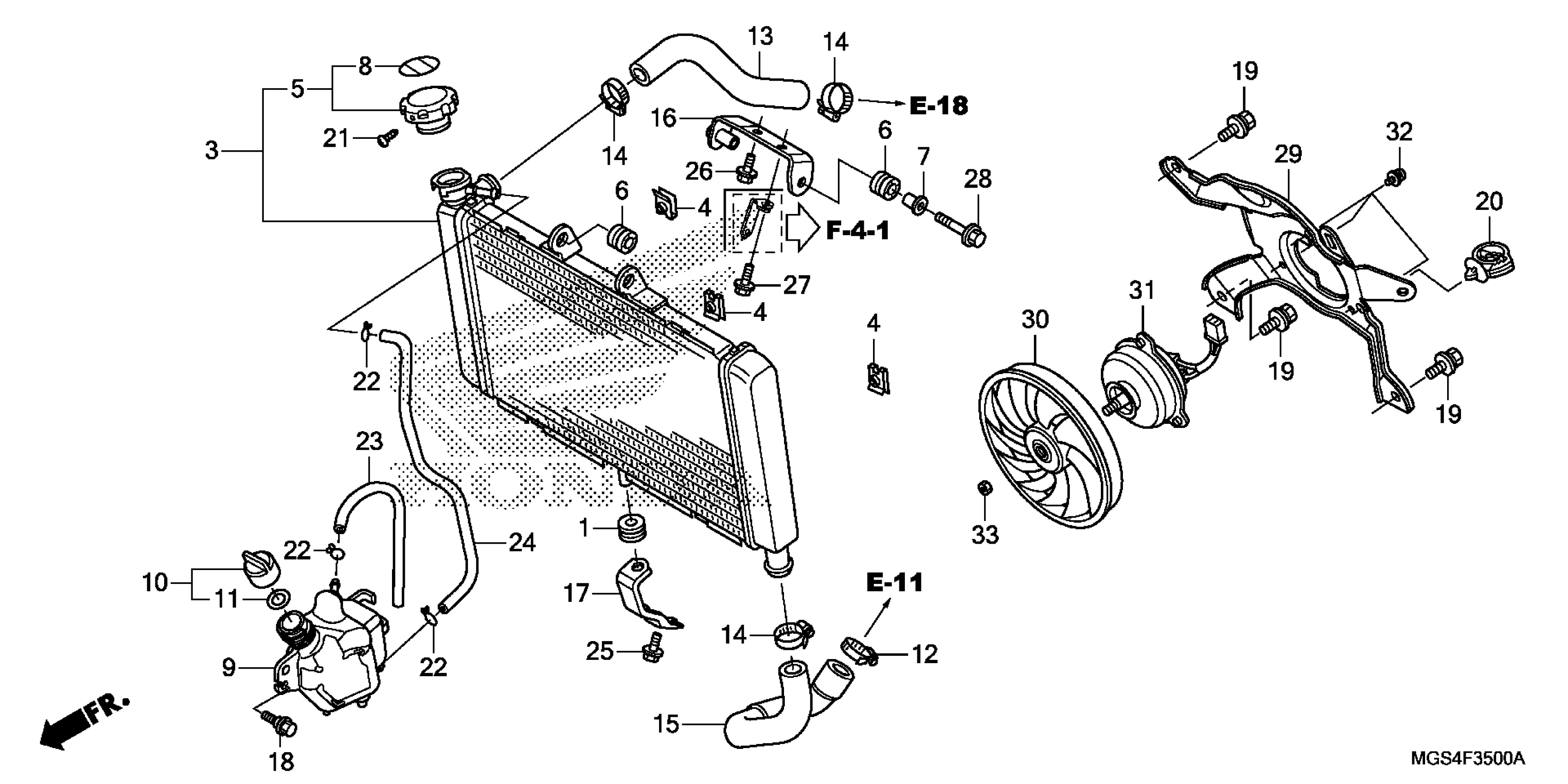

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 RADIATOR Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.78

2

SHROUD ASSY.

19006-MGS-D31

Unavailable

3

RADIATOR

19010-MGS-J31

$877.34

3

RADIATOR This part replaces 19010-MGS-305.

19010-MGS-J31

$877.34

4

NUT, SETTING (6MM)

19014-KEA-003

$3.10

5

CAP, RADIATOR

19045-MY3-621

$40.44

6

RUBBER, RADIATOR MOUNTING

19051-MGS-D30

$1.82

7

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

9

TANK, RADIATOR RESERVE

19101-MGS-D30

$38.85

10

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

11

GASKET, RESERVE TANK

19107-GET-000

$3.74

12

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$9.41

13

HOSE, RADIATOR (UPPER)

19505-MGS-D30

$14.51

14

CLAMP, WATER HOSE

19505-ML3-770

$7.08

15

HOSE, RADIATOR (LOWER)

19506-MGS-D30

$22.85

16

STAY, RADIATOR (UPPER)

19515-MGS-D30

$8.33

17

STAY, RADIATOR (LOWER) *NH167MU* (IRON NAIL SILVER METALLIC-U)

19516-MGS-D30ZB

$7.80

18

BOLT, FLANGE (6MM)

90111-162-000

$2.89

19

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

20

CLIP, HARNESS

90683-MGC-920

$3.11

21

SCREW, TAPPING (3X8)

93901-22180

$1.49

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

24

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

25

BOLT, FLANGE (6X14) (Honda Code 3707114)

95701-06014-02

$1.49

26

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

27

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

28

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72

29

SHROUD

19016-MGS-D31

$80.79

30

FAN, COOLING (TOYO)

19020-MGS-D31

$39.67

31

MOTOR ASSY., FAN

19080-MGS-D31

$215.93

32

SCREW-WASHER (4X6)

93891-04006-07

$1.49

33

NUT, HEX. (3MM)

94001-03000-0S

$1.49
