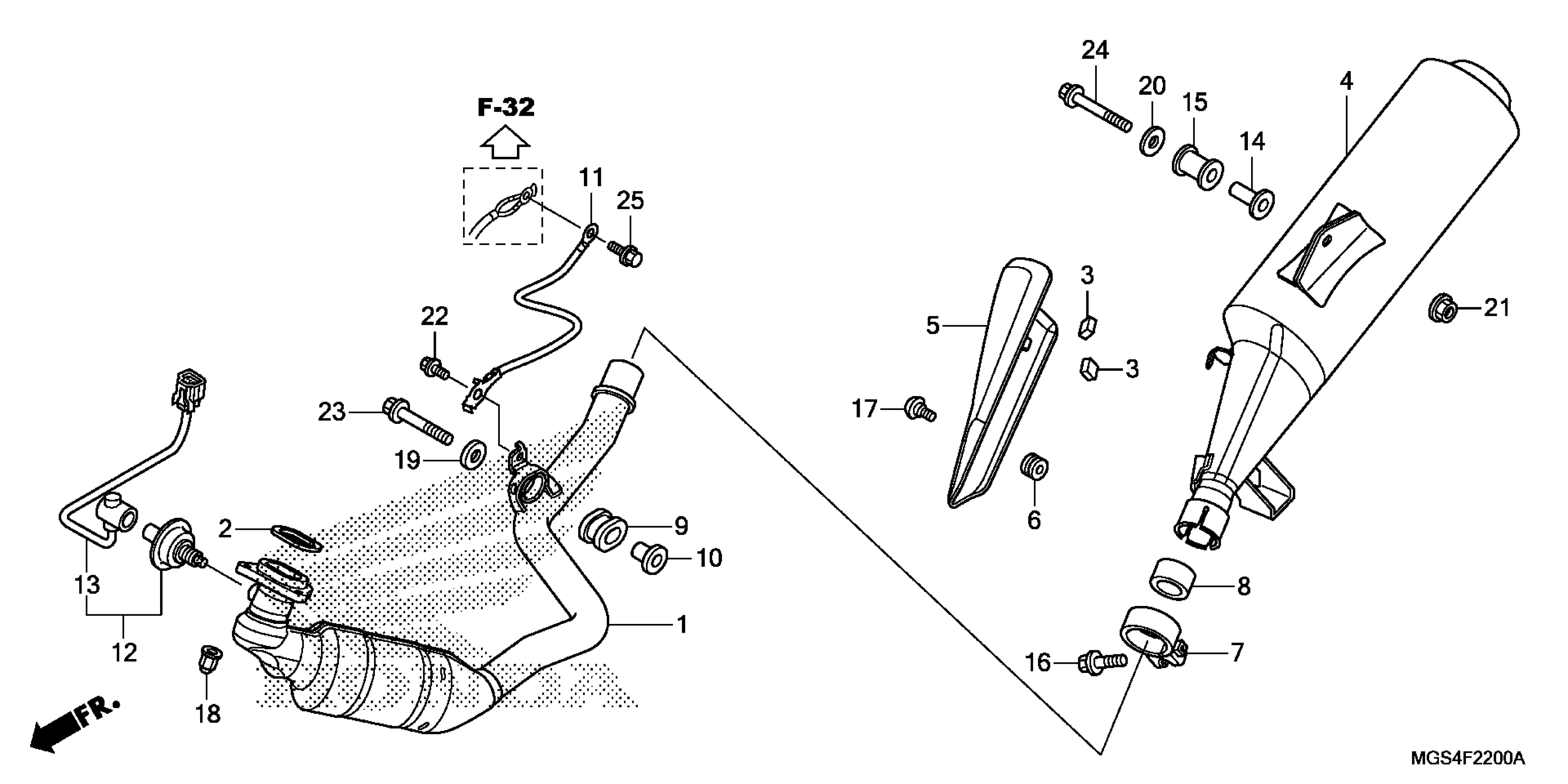

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 MUFFLER Diagram

PIPE, EX.

18150-MGS-D33

$1,101.87

GASKET, EX. PIPE

18291-MGS-D31

$11.31

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER (COO) This part replaces 18310-MGS-D32.

18310-MGS-305

$563.59

MUFFLER (COO)

18310-MGS-305

$563.59

COVER, MUFFLER

18342-MGS-D31

$59.26

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$38.92

GASKET, MUFFLER

18392-MK4-000

$13.66

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.69

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-MGS-D30

$8.66

SENSOR, OXYGEN

36532-MGS-D31

$283.82

WIRE, OXYGEN SENSOR

36533-MGS-D31

$56.98

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$6.22

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

NUT, CAP (8MM)

90304-ME1-670

$5.94

WASHER (8MM)

90501-819-000

$1.49

WASHER (8.5X28)

90534-MV4-000

$2.89

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X45)

96300-08045-04

$1.51

BOLT, FLANGE (8X50)

96300-08050-04

$1.79

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
