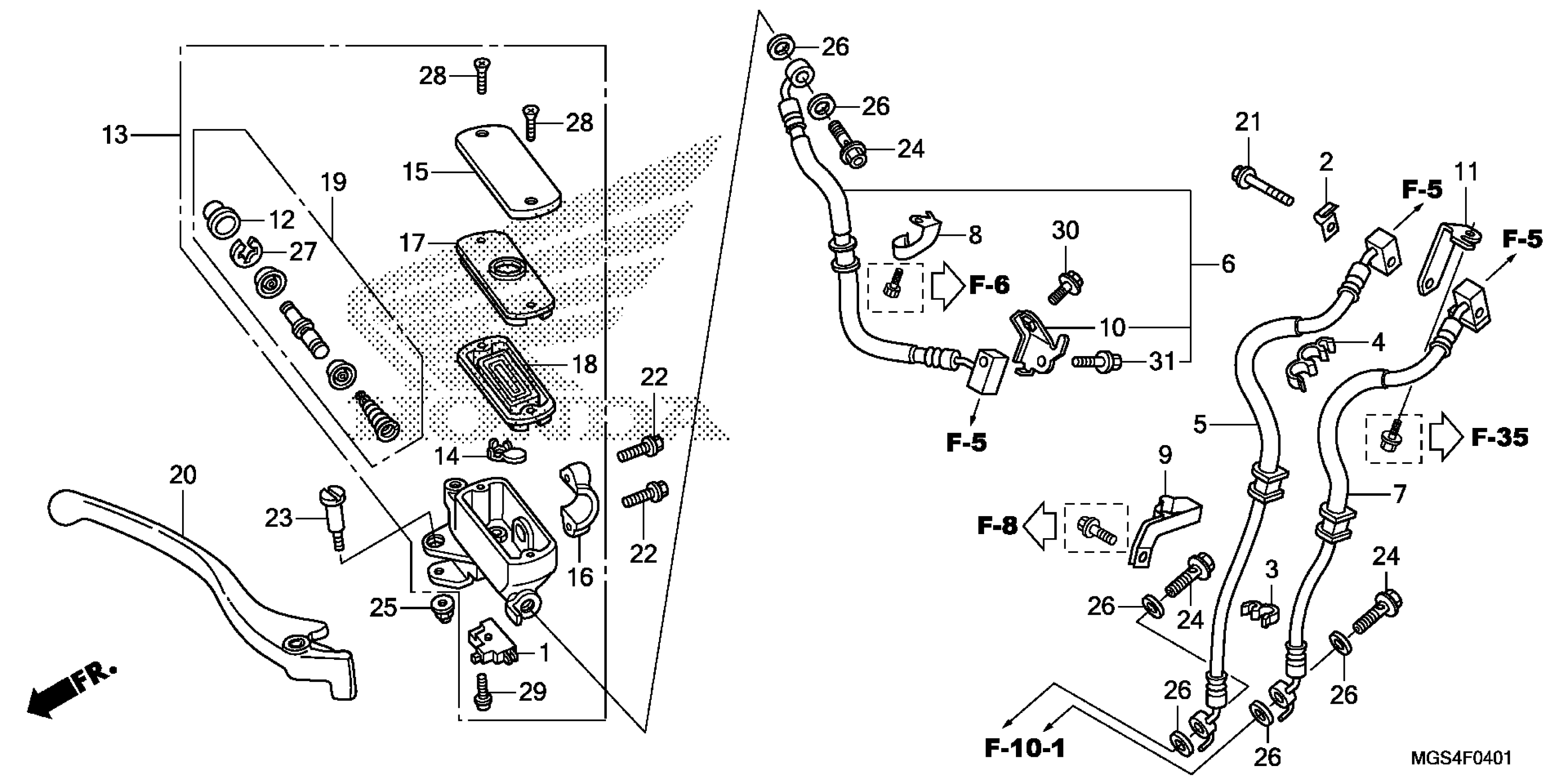

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.09

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.80

4

CLAMP, ABS WIRE (D12)

38516-MGS-D81

$2.28

5

HOSE C, BRAKE SUB

43322-MGS-D82

$68.56

6

HOSE A, FR. BRAKE

45125-MGS-D81

$52.29

7

HOSE D, FR. BRAKE

45128-MGS-D82

$59.88

8

CLAMP A, FR. BRAKE HOSE

45155-MGS-D80

$5.50

9

CLAMP B, FR. BRAKE HOSE

45156-MGS-D81

$9.66

10

STAY, FR. BRAKE HOSE

45158-MGS-D80

$5.49

11

STAY, FR. BRAKE HOSE

45163-MGS-D80

$5.57

12

BOOT

45504-410-003

$11.17

13

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGS-305.

45510-MGS-D31

$258.54

14

PROTECTOR

45512-MA6-006

$4.09

15

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

16

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

17

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

18

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

19

MASTER CYLINDER SET

45530-KVY-911

$23.84

20

LEVER, R. HANDLEBAR (COO)

53175-MFR-305

$17.22

21

BOLT, FLANGE (6X35)

90011-GHB-700

$1.66

22

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

23

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

25

NUT, CAP (6MM)

90201-415-000

$1.99

26

WASHER, OIL BOLT

90545-300-000

$6.56

27

CIRCLIP

90651-MA5-671

$2.38

28

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

28

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

29

SCREW-WASHER (4X12)

93893-04012-07

$1.24

29

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

30

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

31

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
