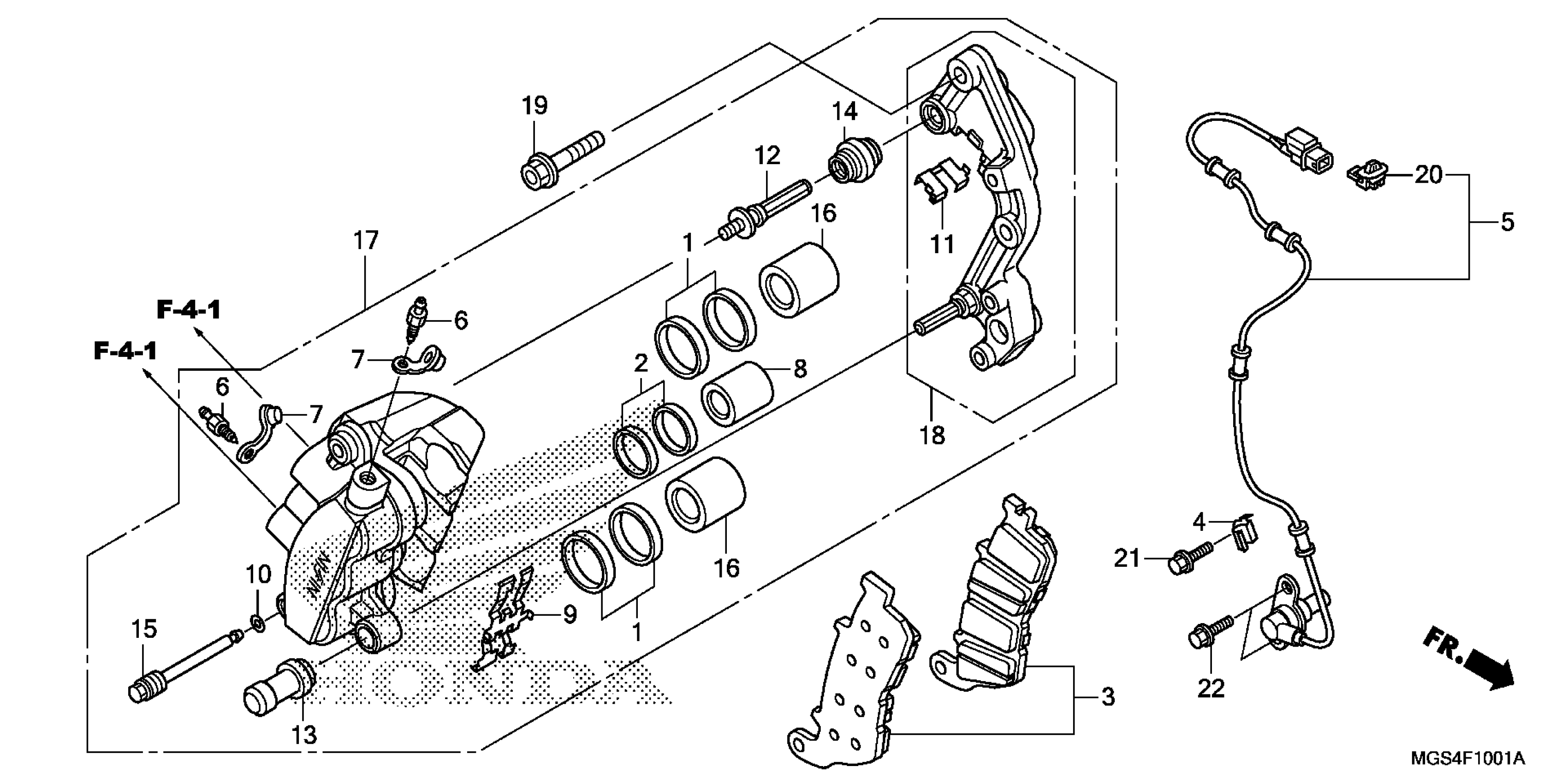

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET, FR.

06455-MGS-D81

$53.01

CLAMP, SENSOR WIRE

38517-MGS-D80

$4.76

SENSOR, FR. WHEEL SPEED

38520-MGS-D81

$211.63

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MET-652

$5.35

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY., R. FR.

45250-MGS-D81

$939.97

BRACKET SUB-ASSY., R. FR.

45290-MGS-D81

Unavailable

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
