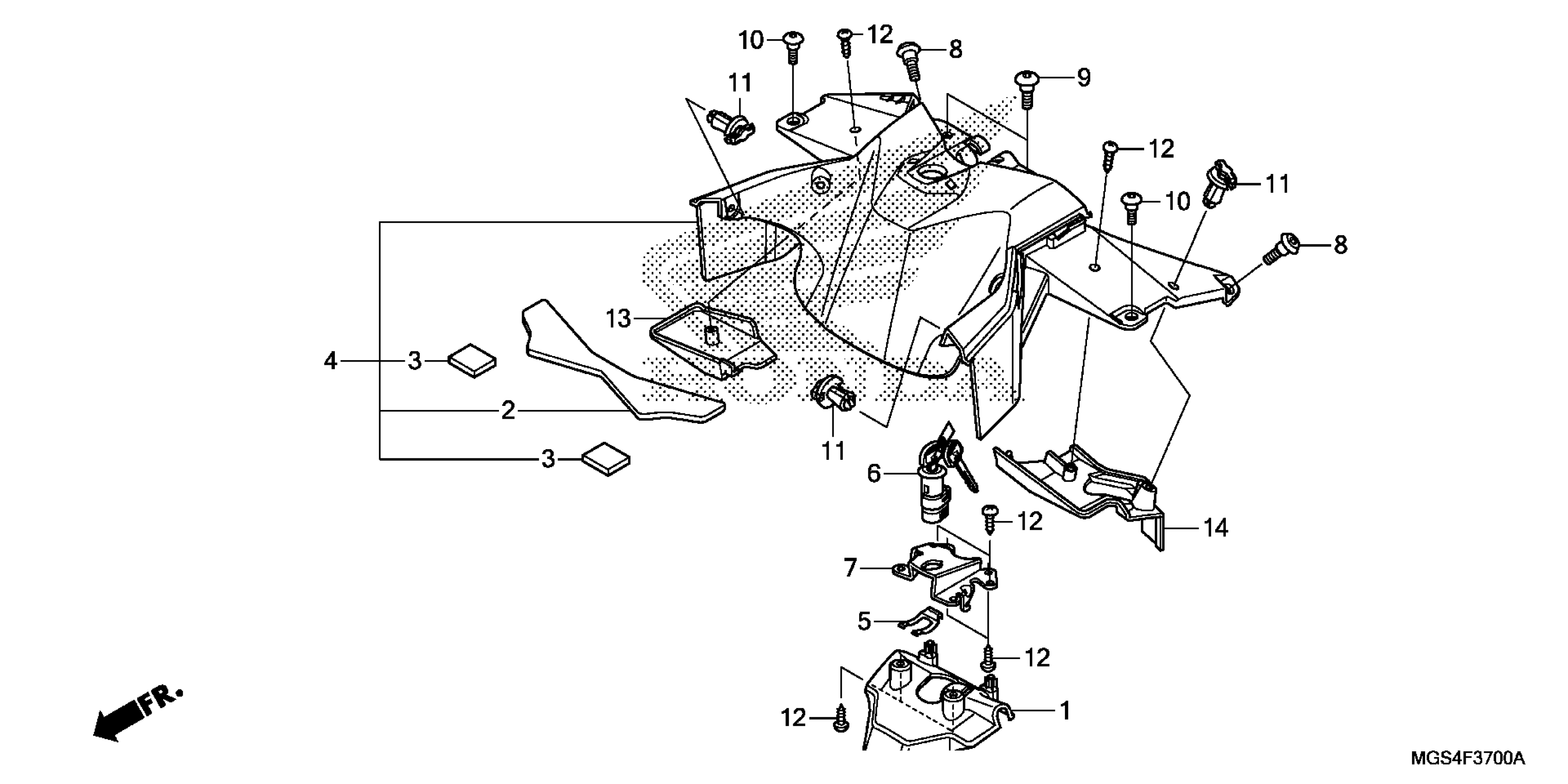

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 CENTER COVER Diagram

COVER, CENTER (INNER)

64502-MGS-D30

$9.51

MAT, CENTER COVER

64503-MGS-D30

$8.38

SEAL, CENTER COVER

64504-MGS-D30

$0.60

COVER, ASSY. CENTER *NH1* (BLACK)

64510-MGS-D31ZA

$57.49

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

KEY, SEAT LOCK This part replaces 77239-MGS-D31.

77239-MGS-D32

$36.96

KEY, SEAT LOCK

77239-MGS-D32

$36.96

STAY, KEY LOCK

81331-MGS-D30

$7.19

SCREW, SPECIAL (5X17)

90105-MBY-000

$2.47

SCREW, PAN (6X14)

90106-KBV-000

$3.73

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.40

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.63

SCREW, TAPPING (5X12)

93903-25280

$1.25

COVER, R. CABLE (LOWER)

64507-MGS-B30

$5.29

COVER, L. CABLE (LOWER)

64508-MGS-B30

$6.62
