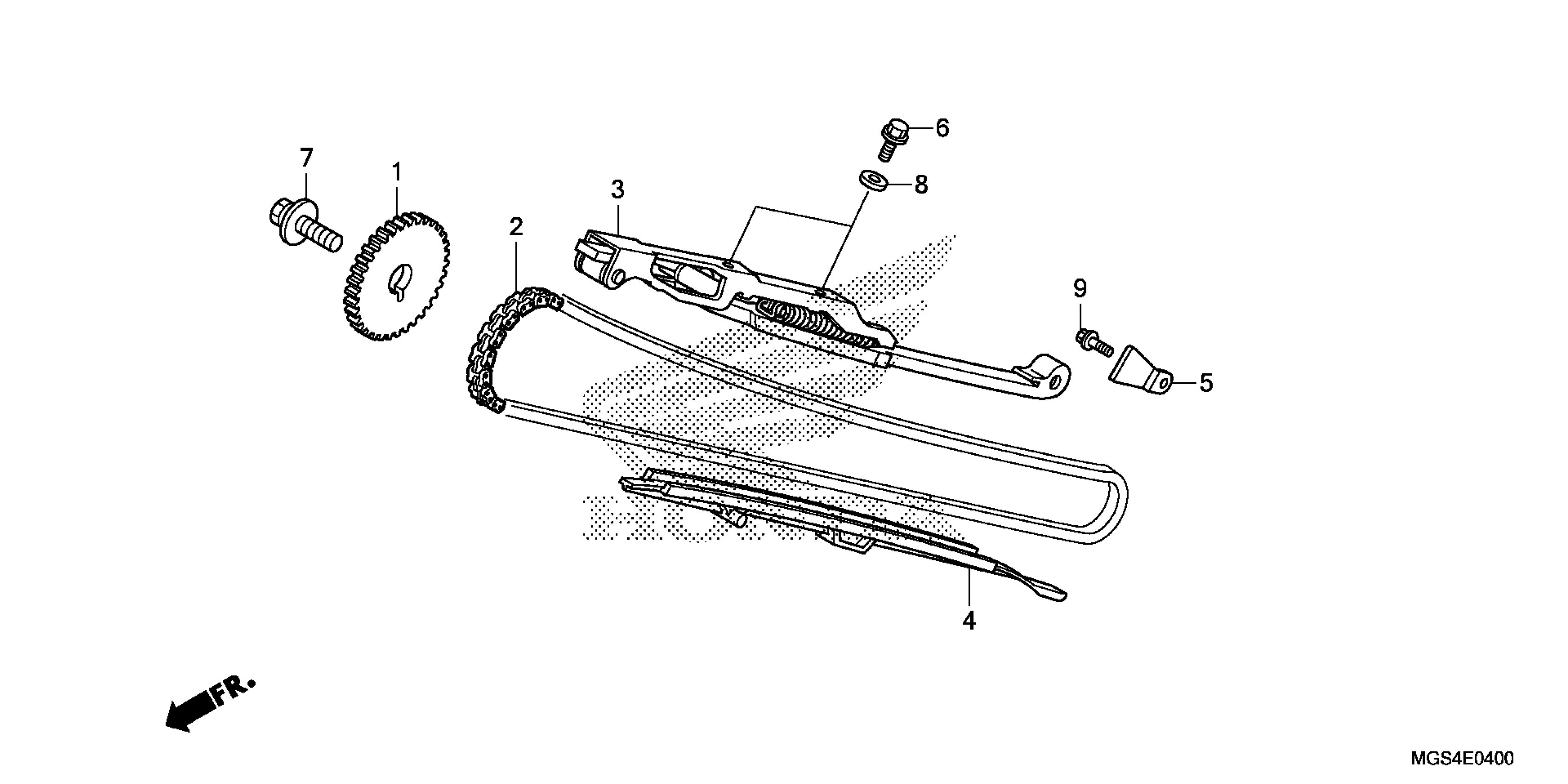

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MGS-D30

$83.98

CHAIN, CAM (114L) (SCH-0409 SV) (DAIDO)

14401-MGS-D31

$79.26

TENSIONER, CAM CHAIN

14510-MGS-D30

$149.84

GUIDE, CAM CHAIN

14530-MGS-D30

$57.90

PLATE, TENSIONER SETTING

14623-MBA-000

$5.66

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.90

BOLT-WASHER (10X30) This part replaces 90031-PV0-003.

90031-PV0-305

$10.38

BOLT-WASHER (10X30)

90031-PV0-305

$10.38

WASHER, SEALING (6MM)

90488-425-000

$2.28

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
