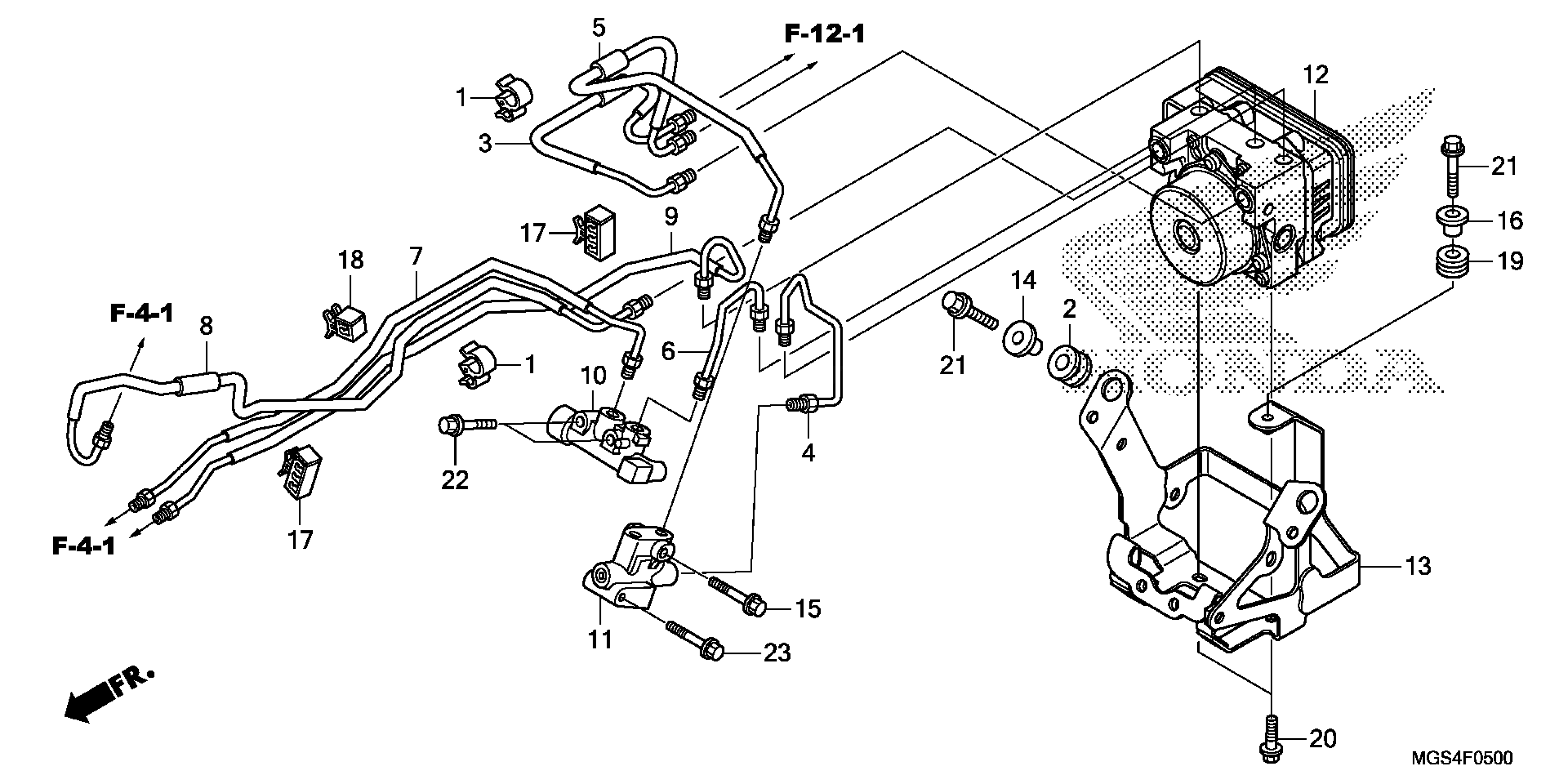

Honda NC700XDAC (13) NC700XD, JPN, VIN# JH2RC631-DK100001 ABS MODULATOR Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$6.80

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

3

PIPE B, RR. BRAKE

43311-MGS-D80

$16.25

4

PIPE C, RR. BRAKE

43312-MGS-D80

$10.51

5

PIPE D, RR. BRAKE

43313-MGS-D80

$17.88

6

SUB-PIPE A, BRAKE

43320-MGS-D80

$11.47

7

SUB-PIPE B, BRAKE

43321-MGS-D80

$22.94

8

PIPE B, FR. BRAKE

45126-MGS-D80

$26.00

9

PIPE C, FR. BRAKE

45127-MGS-D80

$26.97

10

VALVE ASSY., DELAY

46300-MGS-D81

$194.00

11

VALVE ASSY., PROPORTIONING CONTROL

46400-MEG-H11

$96.99

12

MODULATOR ASSY. (MSDS)

57110-MGS-D81

$1,822.16

13

BRACKET, MODULATOR

57250-MGS-D50

$82.25

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

15

BOLT, FLANGE (6X42)

90101-MGS-D80

$3.04

16

COLLAR, RR. FENDER

90502-GG2-000

$5.49

17

CLAMP, BRAKE PIPE (7.0X3)

90661-MGS-D81

$2.69

18

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$2.81

19

RUBBER, CONTROL BOX

90852-898-000

Unavailable

20

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

21

BOLT, FLANGE (6X22)

95701-06022-08

$1.79

22

BOLT, FLANGE (6X28)

96001-06028-00

$2.75

23

BOLT, FLANGE (6X40)

96001-06040-00

$2.75
