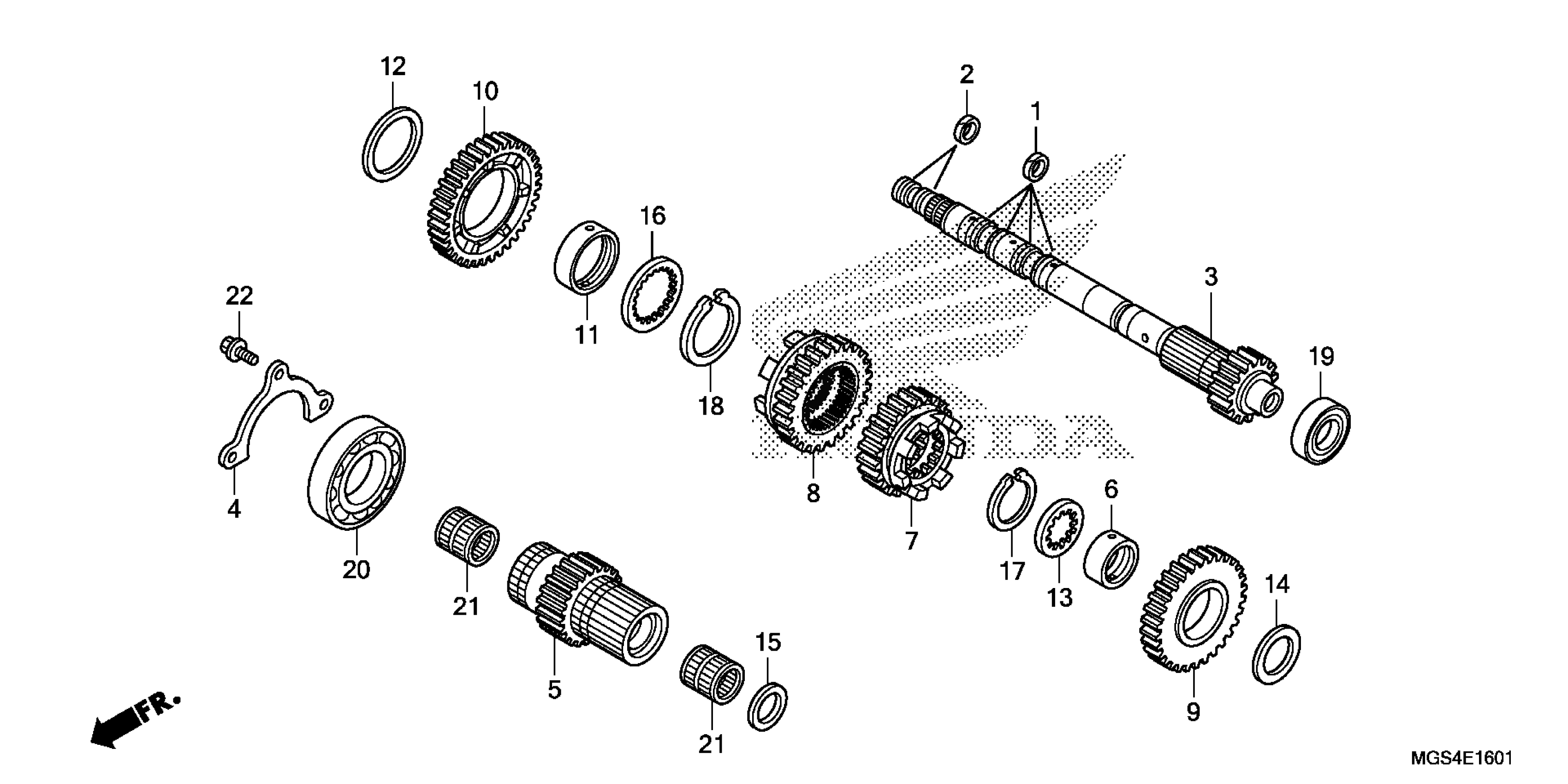

Honda NC700XDAC (12) NC700XD, JPN, VIN# JH2RC631-CK000001 TO JH2RC631-CK099999 TRANSMISSION (NC700XD) (MAINSHAFT) Diagram

RING, SEALING (26MM)

22814-PFL-003

$7.80

SEAL, RING (21.2MM)

22814-RGC-003

$10.40

MAINSHAFT (INNER) (15T)

23210-MGS-D20

$365.39

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$3.20

MAINSHAFT (OUTER) (21T)

23231-MGS-D20

$295.46

COLLAR (30X11.2)

23442-MS2-610

$23.74

GEAR, MAINSHAFT THIRD (22T)

23451-MGS-D20

$109.44

GEAR, MAINSHAFT FOURTH (25T)

23471-MGS-D20

$102.49

GEAR, MAINSHAFT FIFTH (30T)

23491-MGS-D20

$95.51

GEAR, MAINSHAFT SIXTH (37T)

23511-MGS-D20

$95.51

COLLAR (40X43X10)

23512-MGS-D20

$12.62

WASHER (40.2X51X1)

90411-MGE-D00

$11.79

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

WASHER, THRUST (30.5MM)

90458-MAT-E00

$1.84

WASHER (26X34X2)

90463-MGS-D20

$4.97

WASHER, SPLINE (40MM)

90493-MGE-D00

$8.07

CIRCLIP (30MM)

90604-MM5-000

$4.48

CIRCLIP (40MM)

90605-MGE-D00

$6.93

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

BEARING, RADIAL BALL (6008)

91023-MGS-D21

$23.93

BEARING, NEEDLE (26X31X24) (NTN)

91102-KR0-003

$30.16

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
