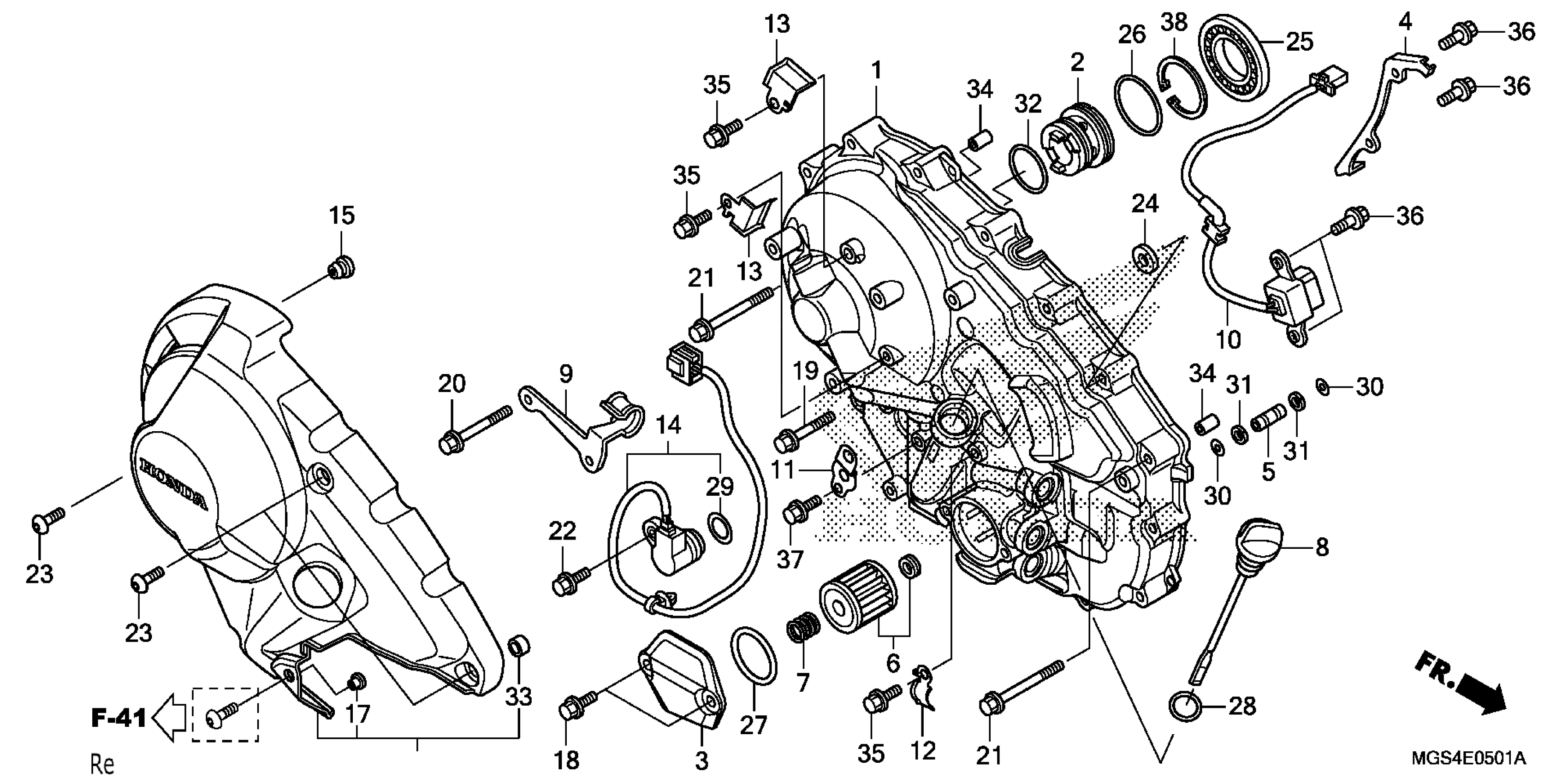

Honda NC700XDAC (12) NC700XD, JPN, VIN# JH2RC631-CK000001 TO JH2RC631-CK099999 RIGHT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MGS-D50

$318.41

2

COLLAR, OIL GUIDE

11332-MGS-D20

$24.43

3

COVER, OIL FILTER

11337-MGS-D50

Unavailable

4

CLAMP, SOLENOID CORD

11339-MGS-D20

$9.16

5

PIPE, OIL PASSAGE

15104-MGS-D20

$9.03

6

ELEMENT, OIL FILTER

15412-MGS-D21

$7.80

7

SPRING, OIL FILTER

15414-MEB-670

$2.43

8

DIPSTICK, OIL

15650-MGS-D20

$27.25

9

STAY, FUEL HOSE

22821-MGS-D20

$6.66

10

GENERATOR ASSY., PULSE (TOYO)

30300-MGS-D21

$109.19

11

STAY, HARNESS CLIP (B)

32171-MGS-D20

$2.50

12

STAY, HARNESS

32172-MGS-D70

$2.50

13

STAY, HARNESS

32173-MGS-D70

$2.50

14

SENSOR ASSY., ANGLE

38810-MGS-D51

$221.94

15

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

16

COVER, R. ENGINE SIDE *NH167MU* (IRON NAIL SILVER METALLIC-U)

64520-MGS-D50ZB

$78.63

17

COLLAR, FENDER SETTING

80103-MCJ-750

$2.38

18

BOLT, FLANGE (6X16) (NSHF)

90006-GHB-630

$1.66

19

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

20

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.78

21

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.66

22

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

23

BOLT, SPECIAL (6X17)

90085-MCZ-000

$1.97

24

WASHER, SEALING (6MM)

90488-425-000

$2.10

25

BEARING, RADIAL BALL (40X68X7.5)

91029-MGS-D21

$19.54

26

O-RING (35X2.2)

91302-MGS-D20

$2.13

27

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.66

28

O-RING (18X3)

91307-035-000

$2.75

29

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

30

O-RING (7.7X1.9)

91311-RFH-003

$2.41

31

RING, BACK-UP (8X11)

91315-MGS-D20

$3.09

32

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.36

33

COLLAR

91502-MGS-D50

$2.51

34

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.76

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

36

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

37

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

38

CIRCLIP (INNER) (40)

94520-40150

$1.87
