Description

Price

1

RECTIFIER, REGULATOR

31600-MJJ-D71

$404.47

2

RECTIFIER, SILICON

31700-MM8-610

$23.09

4

WIRE HARNESS

32100-MKA-C50

$778.94

5

COVER, STARTER MAGNETIC TERMINAL

32406-MGS-D31

$7.44

6

COVER, BATTERY TERMINAL

32411-MGS-D31

$6.12

7

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

8

BAND (BLACK 3.5X140)

35701-MG9-950

$1.84

9

HORN (HIGH)

38110-MEE-013

$32.69

10

COVER, POWER BOX

38201-MGS-D31

$9.43

11

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

12

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

13

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

14

RELAY, TURN SIGNAL (MITSUBA) | Use up to Frame SN HK100009. This part replaces 38301-MJE-D01.

38301-MJE-D02

$46.06

14

RELAY, TURN SIGNAL (MITSUBA) | Use from Frame SN HK100010.

38301-MJE-D02

$46.06

15

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

16

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

Unavailable

18

PGM-FI UNIT

38770-MKA-G52

$975.56

19

STAY, HORN

50311-MGS-D31

$6.34

20

BOLT, SOCKET (8X16)

90128-MGS-D30

$2.66

21

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

22

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

23

CLAMP, HARNESS

90652-HC4-003

$5.68

24

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

25

CLIP, CONNECTOR (DARK GRAY)

91534-SWA-003

$8.82

26

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

27

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

28

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

29

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

30

BOLT, FLANGE (8X25)

95701-08025-08

$0.68

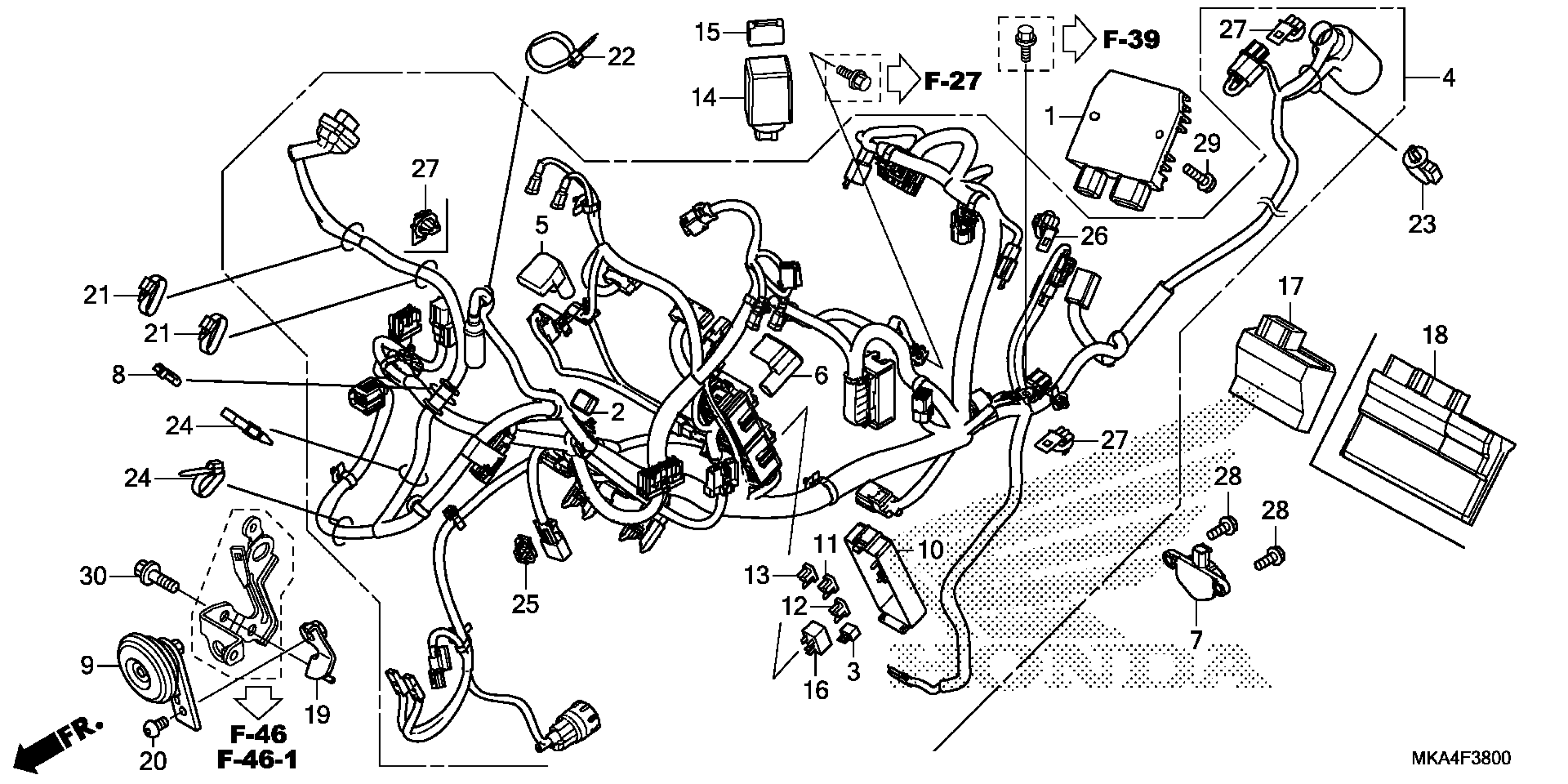

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 WIRE HARNESS Diagram
