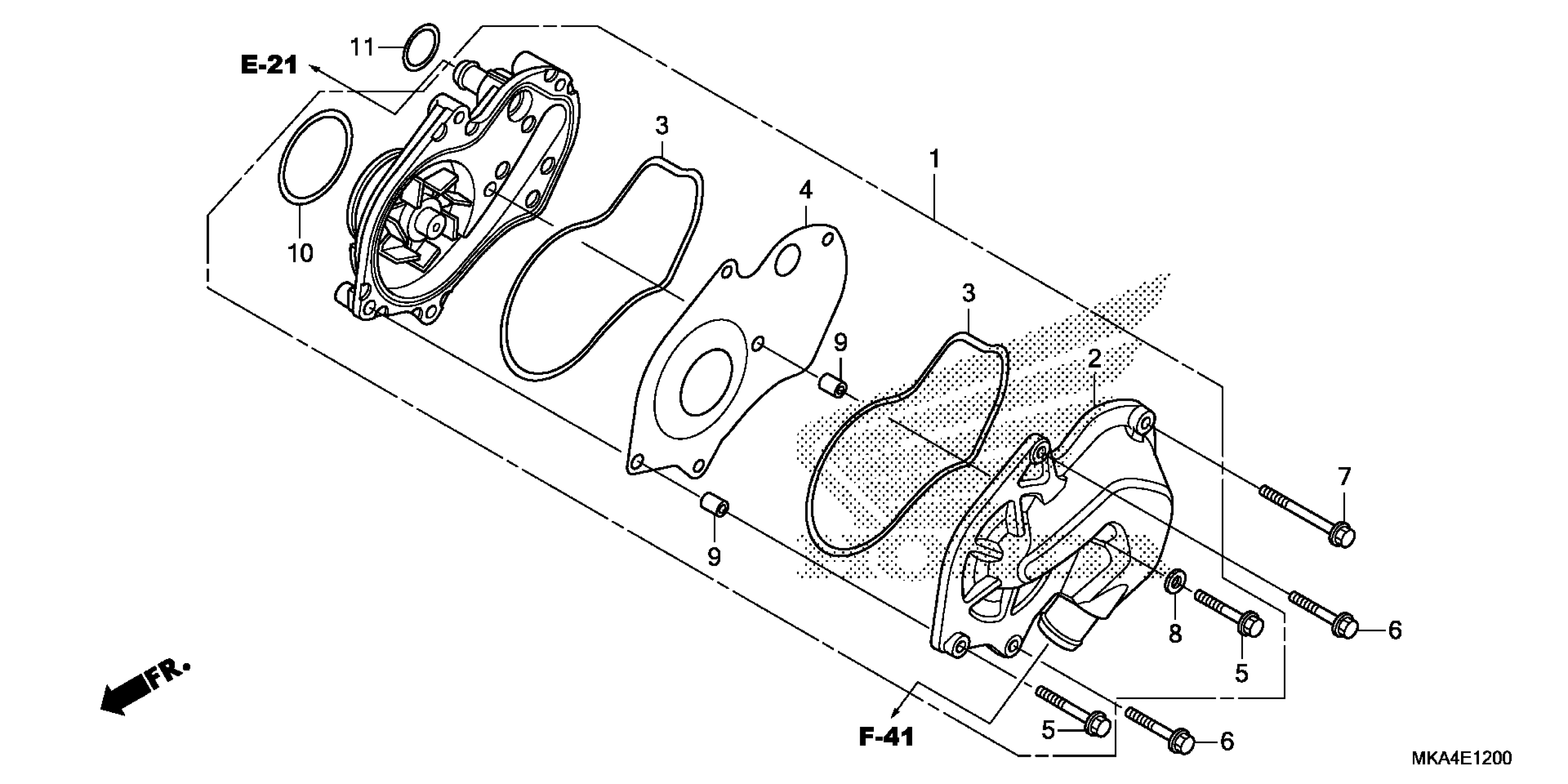

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 WATER PUMP Diagram

WATER PUMP ASSY.

19200-MGS-D30

$281.92

COVER, WATER PUMP

19221-MGS-D30

$128.90

GASKET, WATER PUMP BODY

19226-MGS-D30

$6.63

PLATE, WATER PUMP

19231-MGS-D30

$9.18

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.80

WASHER, SEALING (6.5MM)

90406-MGS-D30

$2.33

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (8X10)

90704-MGS-D30

$1.49

O-RING (48X2.6)

91301-MGS-D30

$2.89

O-RING (23.5X2)

91306-ZY3-003

$3.65
