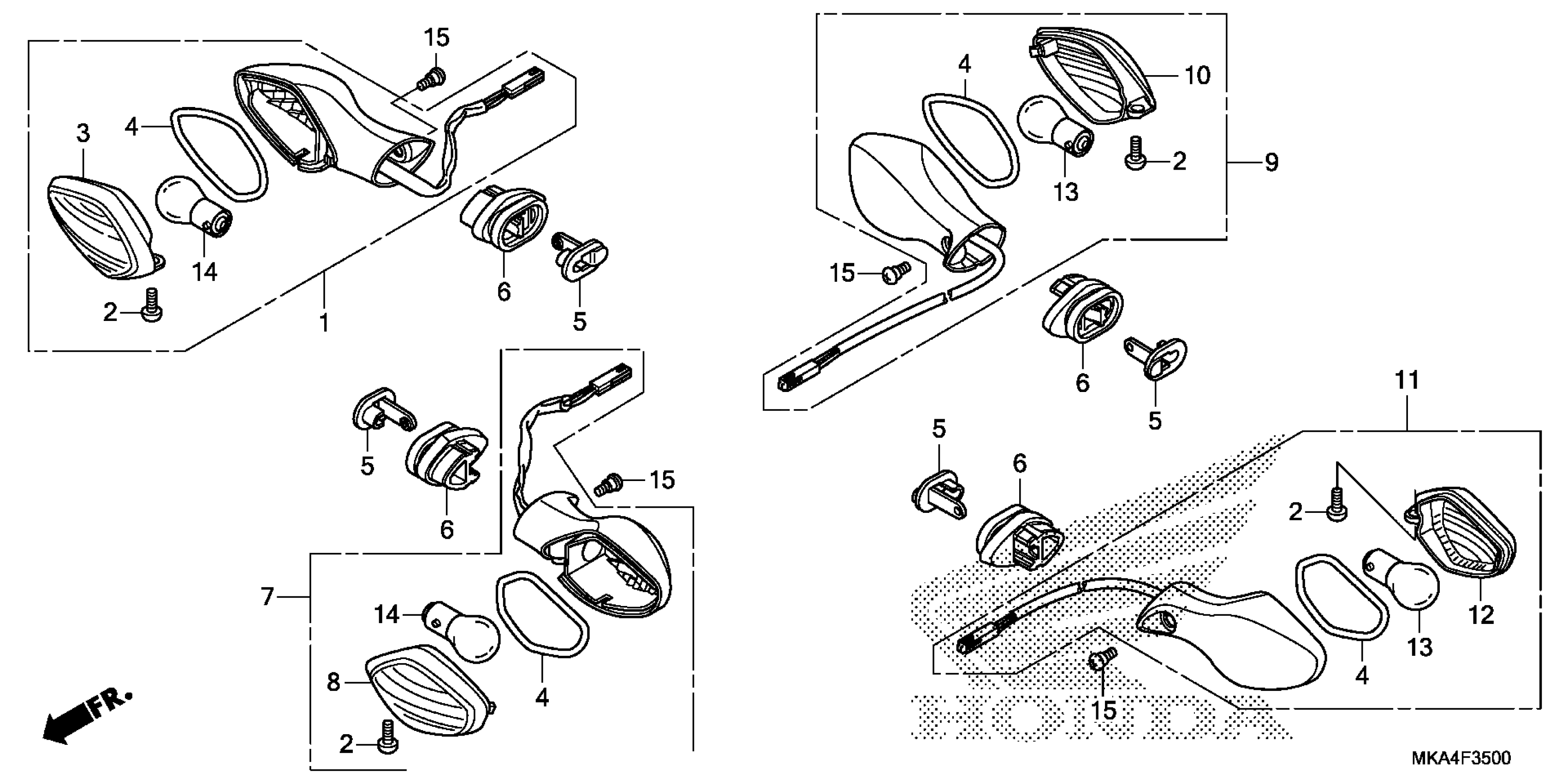

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL ASSY., R. FR. (12V 21W/5W) This part replaces 33400-MKA-305.

33400-MKA-J32

$21.65

2

SCREW, SPECIAL (4X10)

33402-MGS-D31

$1.01

3

LENS, R. TURN SIGNAL (COO) (R. FR./L. RR.)

33404-KZZ-315

$2.87

4

SEAL, GASKET

33405-MKA-D81

$0.50

5

STAY, TURN SIGNAL (RR.)

33412-MGS-D30

$7.36

6

RUBBER, TURN SIGNAL MOUNTING (RR.)

33413-MGS-D30

$5.54

7

TURN SIGNAL ASSY., L. FR. (12V 21W/5W) (COO)

33450-MKA-305

$21.65

8

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)

33454-KZZ-315

$2.82

9

TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)

33600-MKA-305

$89.49

10

LENS, R. TURN SIGNAL (COO)

33604-MJF-315

$3.00

11

TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)

33650-MKA-305

$18.13

12

LENS, L. TURN SIGNAL (COO)

33654-MJF-315

$3.00

13

BULB, TURN SIGNAL (12V 21W) (TOSHIBA)

34905-MGS-J31

$4.80

14

BULB, TAILLIGHT (P21/5W) (LIFE ELEX) (FR. WINKER)

34906-MGZ-J01

$6.40

15

SCREW, SPECIAL (6X8)

90380-MGS-D30

$3.34
