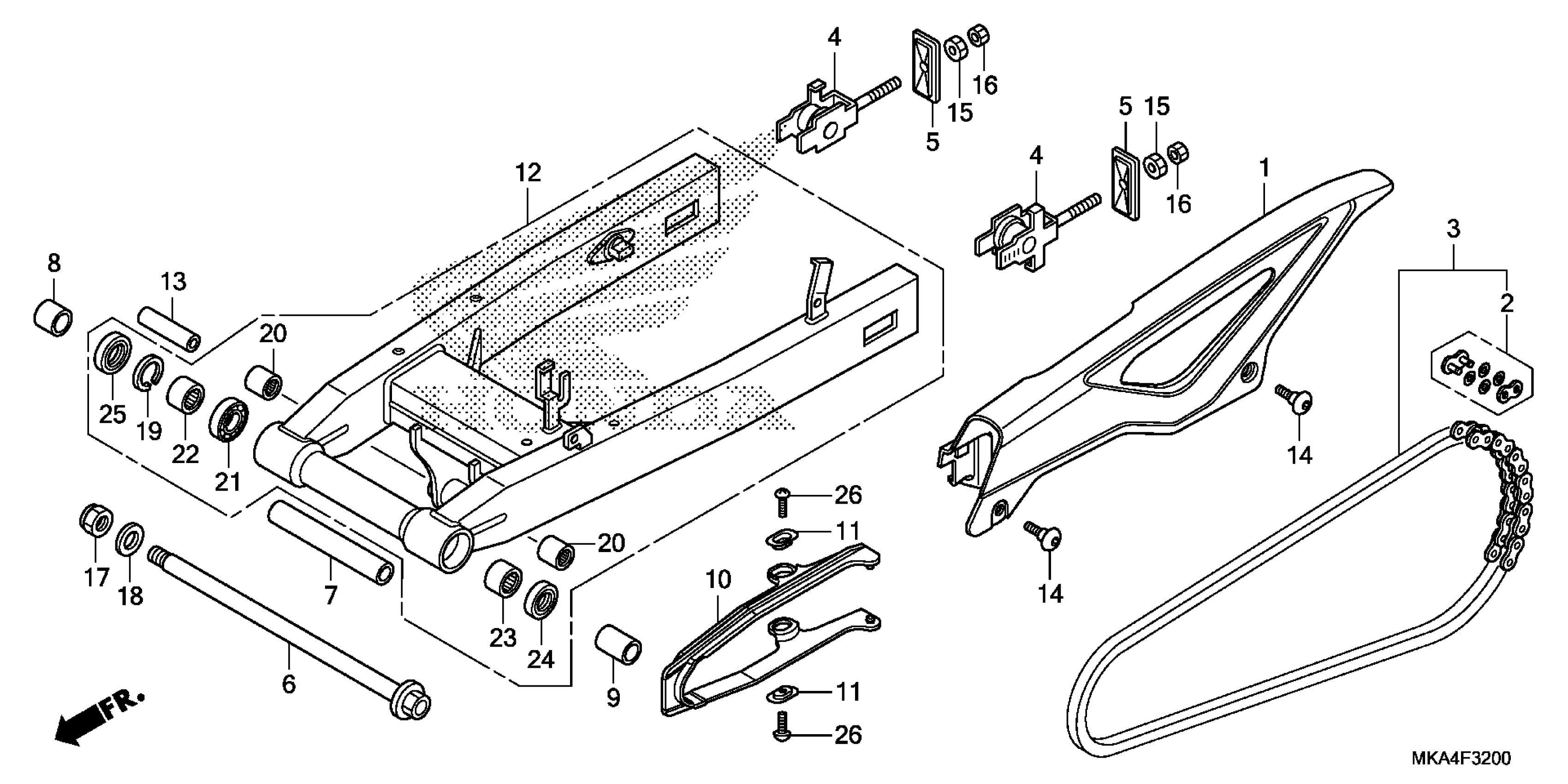

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MGS-D30

$114.67

2

MASTER LINK (RK EXCEL)

40531-MJF-A02

$13.23

2

MASTER LINK (DAIDO)

40545-MGS-D31

$13.43

3

CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MGS-D31

$231.23

3

CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MJF-A02

$227.79

4

ADJUSTER, CHAIN

40543-MGS-D30

$31.36

5

CAP, SWINGARM END

40546-MGS-D30

$20.56

6

BOLT, SWINGARM PIVOT

52101-MGS-D30

$39.51

7

COLLAR, PIVOT DISTANCE CENTER

52141-MGS-D10

$34.43

8

COLLAR, R. PIVOT DISTANCE

52142-MGS-D10

$18.64

9

COLLAR, L. PIVOT DISTANCE

52143-MGS-D10

$20.11

10

SLIDER, CHAIN

52170-MGS-D30

$43.90

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

12

SWINGARM SUB-ASSY., RR.

52200-MGS-D71

$1,158.77

13

COLLAR B, CUSHION ARM

52463-MGS-D10

$12.97

14

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

15

NUT, HEX. (8MM)

90302-MBZ-G00

$1.49

16

NUT, HEX. (8MM)

90303-MBZ-G00

$1.49

17

NUT, U (18MM)

90306-MCS-G01

$6.81

18

WASHER (20X31.5X2)

90401-MAS-000

$3.21

19

CIRCLIP (INNER) (37)

90651-MEW-920

$3.13

20

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.78

21

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$10.02

22

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$19.21

23

BEARING, NEEDLE

91071-MR7-003

$25.68

24

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

25

DUST SEAL (30X37X4)

91253-KZ3-861

$8.68

26

SCREW, TAPPING (5X12)

93901-25280

$1.49
