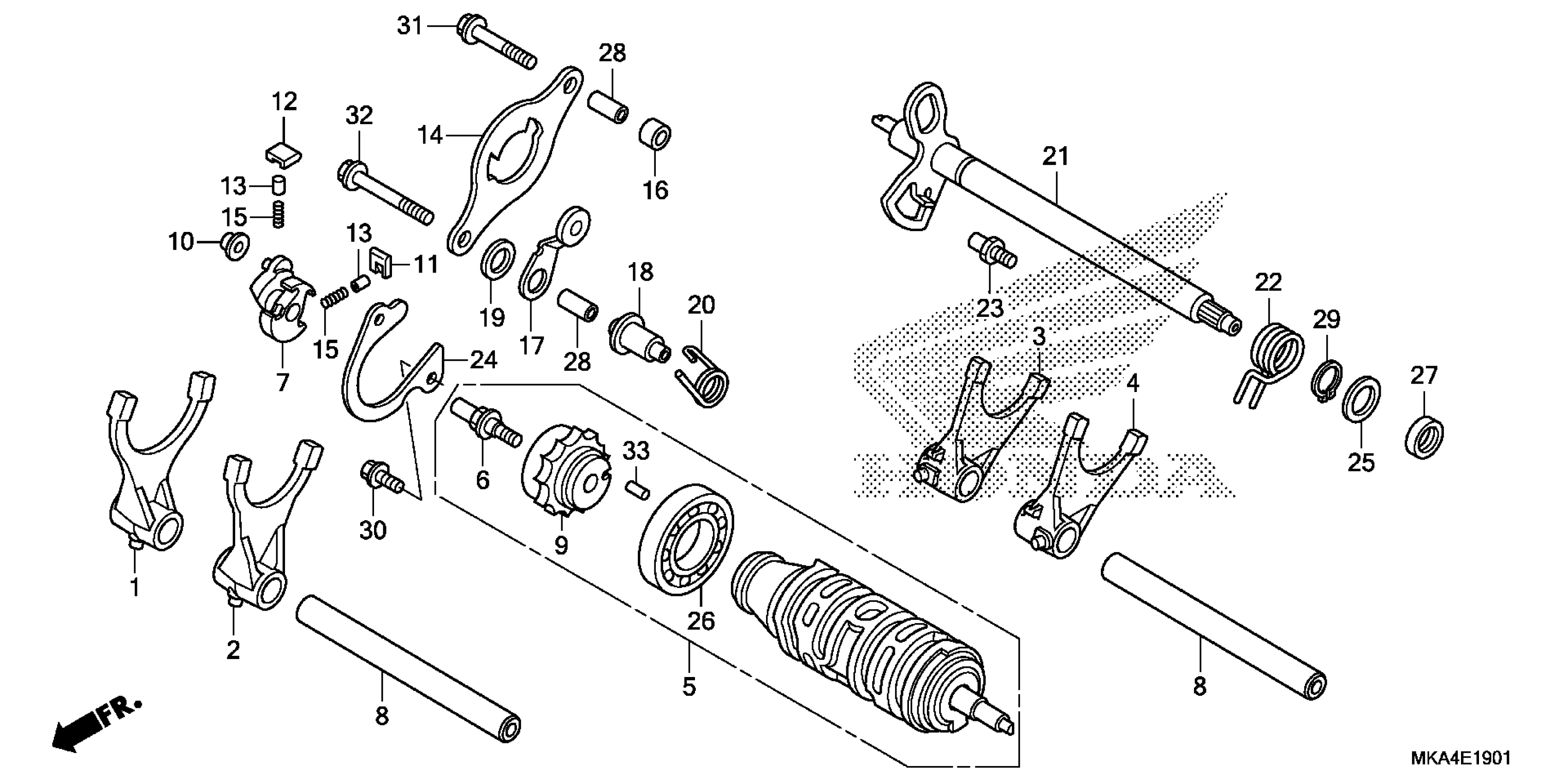

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 GEARSHIFT DRUM (2) Diagram

FORK, R. GEARSHIFT (MAIN)

24211-MGS-D20

$98.79

FORK, L. GEARSHIFT (MAIN)

24212-MKA-D50

$79.41

FORK, R. GEARSHIFT (COUNTER)

24213-MGS-D20

$99.84

FORK, L. GEARSHIFT (COUNTER)

24214-MGS-D20

$99.84

DRUM ASSY., GEARSHIFT

24310-MGS-D22

$262.66

PIN, SHIFTER

24315-HL4-000

$9.36

SHIFTER, DRUM

24321-KT8-030

$55.03

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

CENTER, SHIFT DRUM

24322-MGE-D01

$38.30

COLLAR, SHIFTER

24322-MM4-000

$5.12

PAWL A, RATCHET

24324-KA3-711

$13.21

PAWL B, RATCHET

24325-KA3-711

$13.21

PLUNGER, PAWL

24326-KBH-901

$5.81

PLATE, CHANGE GUIDE

24328-MGS-D20

$10.52

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

COLLAR, GUIDE PLATE DISTANCE

24329-MGS-D20

$4.03

STOPPER, DRUM

24430-MGE-000

$16.03

COLLAR, SHIFT DRUM STOPPER PLATE

24434-MGS-D20

$9.75

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

SPRING, SHIFT DRUM STOPPER

24435-MGS-D20

$5.44

SPINDLE, GEARSHIFT

24610-MGS-D20

$183.51

SPRING, GEARSHIFT RETURN

24651-MGS-D20

$10.44

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

PLATE, SHIFT DRUM BEARING SETTING

24655-MGS-D30

$4.25

WASHER (14MM)

90433-KE1-000

$2.00

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

ROLLER (4X8)

96220-40080

$1.49
