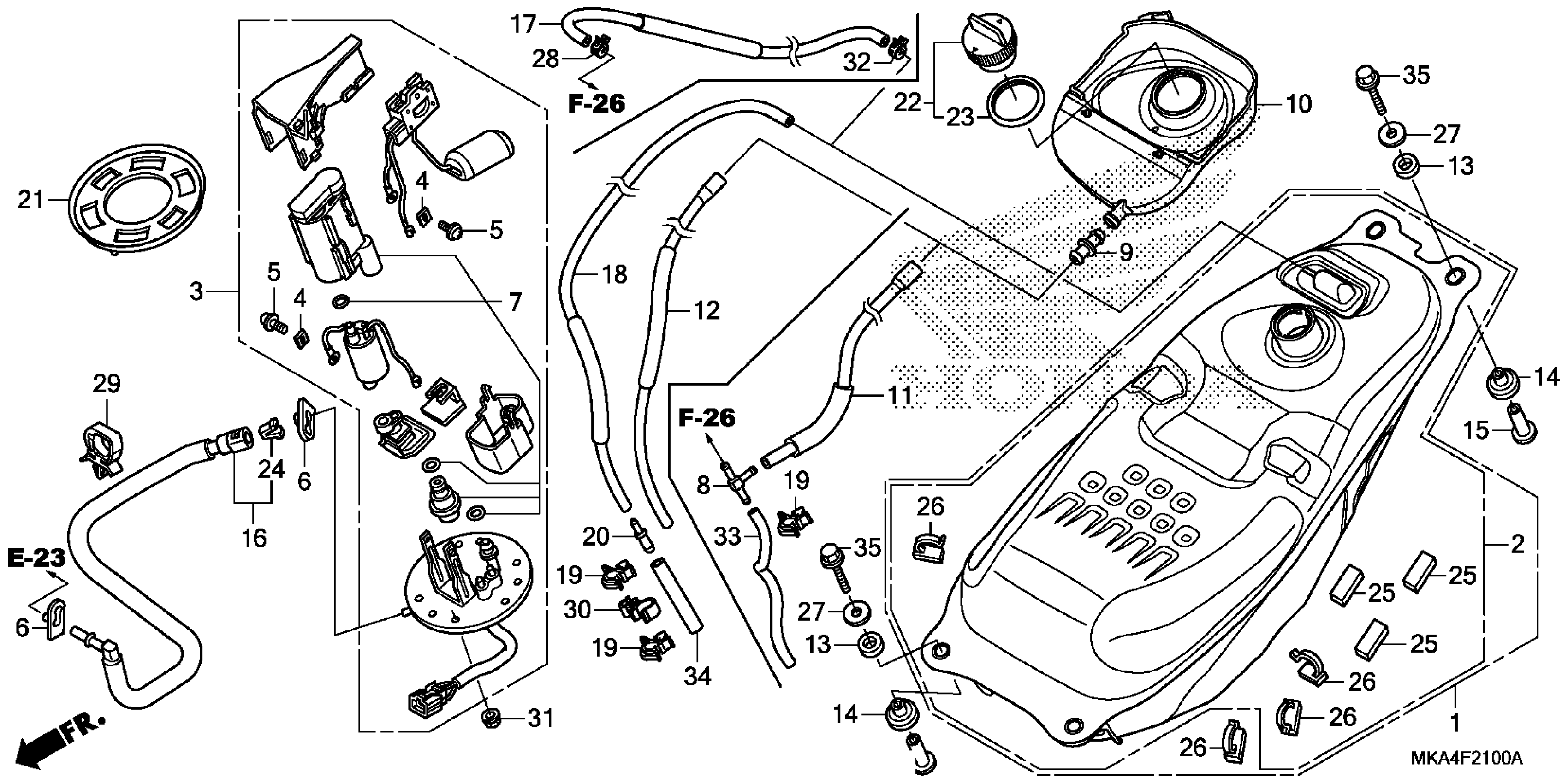

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 FUEL TANK@FUEL PUMP Diagram

TANK ASSY., FUEL *NHA86M* (MAT BALLISTIC BLACK)

04801-MGS-D31ZE

$764.72

PUMP ASSY., FUEL (MSDS)

16700-MKA-D81

$658.74

UNIT, FUEL PUMP This part replaces 16700-MKA-D82.

16700-MKA-D83

$714.51

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

DAMPER, CONNECTOR

16719-MEW-920

$2.92

FILTER ASSY., FUEL This part replaces 16730-MKA-D81.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$42.30

JOINT, BREATHER TUBE

17359-419-670

$1.95

TRAY, FUEL TANK

17507-MGS-D30

$18.75

TUBE, DRAIN

17508-MKA-C50

$17.97

RUBBER, FUEL TANK MOUNTING (UPPER)

17516-MGS-D30

$2.46

RUBBER, FUEL TANK MOUNTING (LOWER)

17517-MGS-D30

$3.90

COLLAR, FUEL TANK

17518-MGS-D30

$2.90

HOSE, FUEL FEED

17526-MGS-D31

$205.90

TUBE, SEPARATOR BREATHER

17530-MKA-C50

$20.70

JOINT, BREATHER TUBE

17561-MEE-000

$4.41

GASKET, BASE

17574-MGS-D30

$24.44

CAP, FUEL FILLER This part replaces 17620-KFR-840.

17620-KFR-841

$39.95

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

$7.79

RETAINER

17711-MGE-003

$6.34

RUBBER, RR. FRAME

80129-MEG-000

$1.49

CLIP, HARNESS

83705-MZ7-300

$7.18

WASHER (6.5X25X1.5)

90404-680-000

$4.07

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
