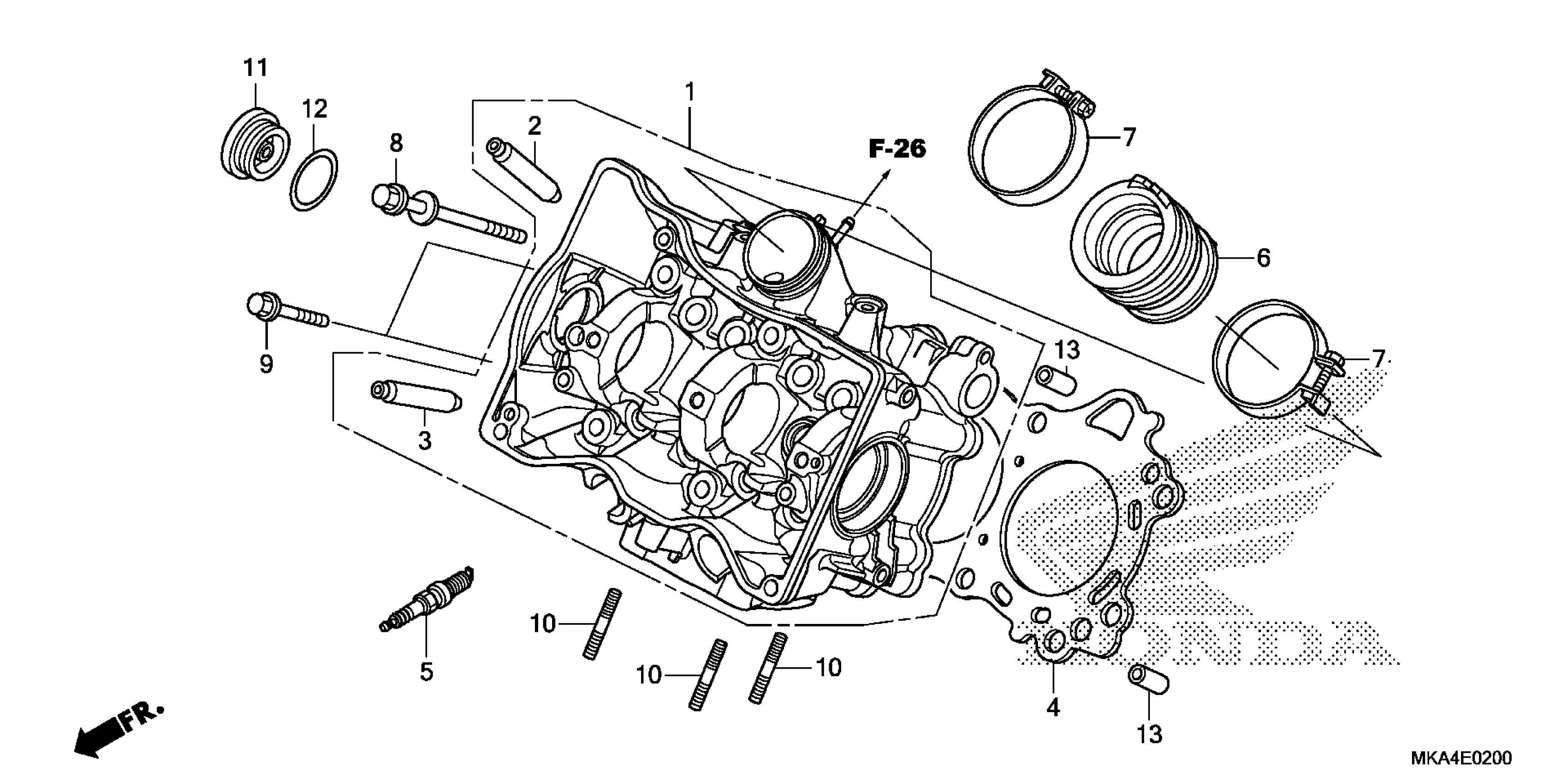

Honda NC700XDA (17) NC700XD, JPN, VIN# JH2RC874-HK100001 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-MGS-D30

$900.61

GUIDE, VALVE (OVER SIZE)

12204-MGS-305

$28.13

GUIDE, EX. VALVE (OVER SIZE)

12205-MGS-305

$26.51

GASKET, CYLINDER HEAD

12251-MGS-D31

$54.93

SPARK PLUG (IFR6G-11K) (DENSO)

12290-RSH-003

$17.73

INSULATOR, THROTTLE BODY

16211-MGS-D30

$19.95

BAND, INSULATOR

16218-MGS-D30

$5.64

BOLT-WASHER (9X130)

90007-MGS-D31

$9.31

BOLT, FLANGE (6X35) This part replaces 90010-GHB-700.

96001-06035-00

$1.49

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

BOLT, STUD (8X26)

90023-MGS-D30

$6.03

CAP (36MM)

90087-MGS-D30

$15.02

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.92

PIN A, DOWEL (12X20)

94301-12200

$2.29
