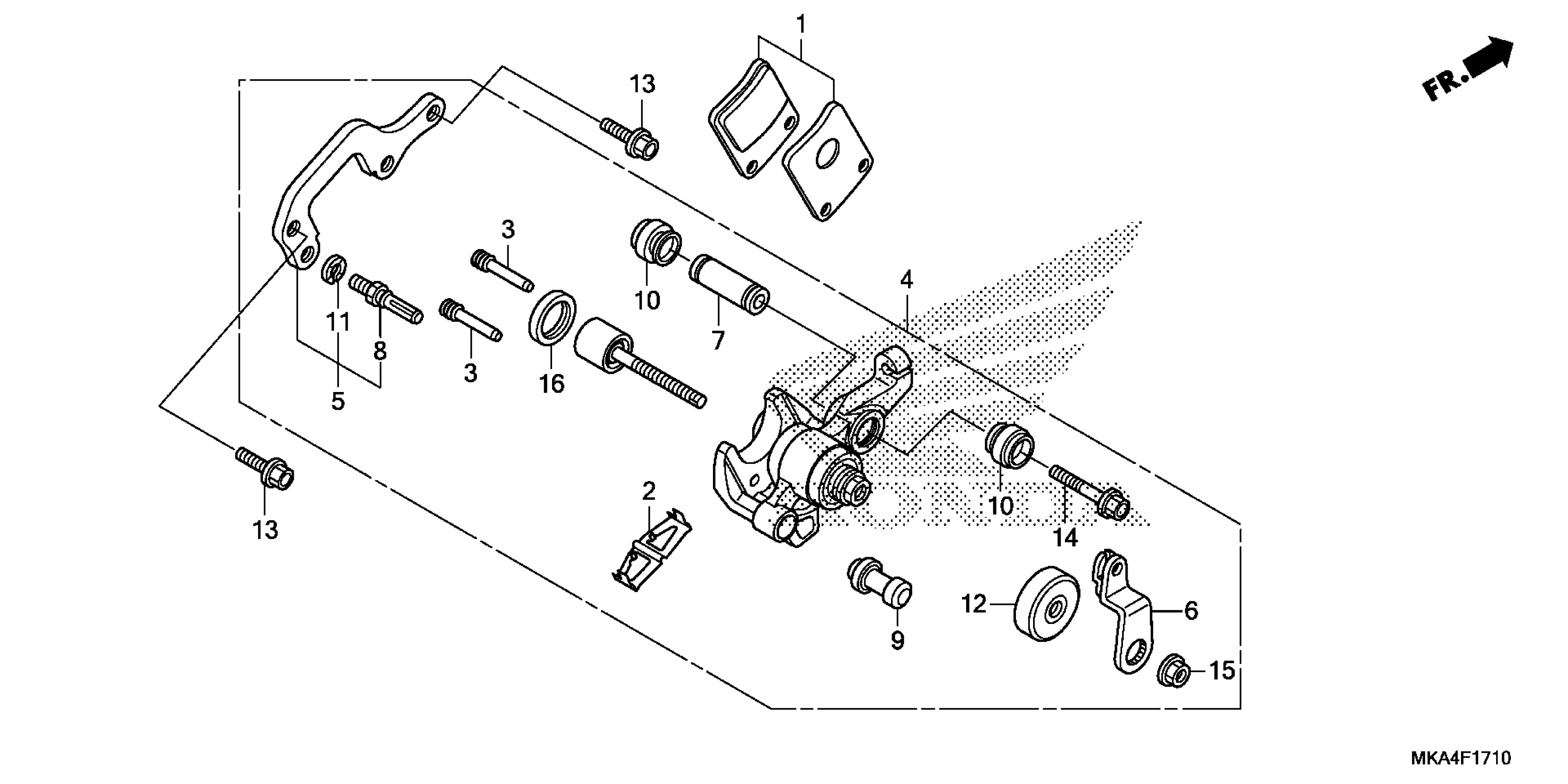

Honda NC700XDA (16) NC700XD, JPN, VIN# JH2RC874-GK000001 TO JH2RC874-GK099999 PARKING BRAKE CALIPER Diagram

Description

Price

PAD SET, PARKING BRAKE

06436-MCT-016

$43.42

SPRING, PAD

43208-MCT-006

$4.75

PIN, HANGER

43215-MCT-006

$6.39

CALIPER SUB-ASSY., RR. (NISSIN)

43250-MKA-D51

$273.31

BRACKET SUB-ASSY., PARKING BRAKE

43290-MKA-D51

$30.97

ARM

43362-MGS-D71

$11.56

SLEEVE

45111-MCT-006

$8.26

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

BOLT, FLANGE (8X28)

90101-MGS-D70

$4.97

BOLT, FLANGE (8X42)

90180-MGS-D71

$3.92

NUT-WASHER (8MM)

90313-HE0-006

$4.46

DUST SEAL (20X25X4) (NOK)

91208-PF5-005

$5.28
