Description

Price

1

RING, SEALING (26MM)

22814-PFL-003

$7.80

2

SEAL, RING (21.2MM)

22814-RGC-003

$10.40

3

MAINSHAFT (INNER)

23210-MJL-D50

$317.41

4

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$3.20

5

MAINSHAFT (OUTER) (19T)

23231-MJL-D50

$264.48

6

COLLAR (30X11.2)

23442-MS2-610

$23.74

7

GEAR, MAINSHAFT THIRD (22T)

23451-MGS-D20

$109.44

8

GEAR, MAINSHAFT FOURTH (25T)

23471-MJL-D50

$91.72

9

GEAR, MAINSHAFT FIFTH (30T)

23491-MGS-D20

$95.51

10

GEAR, MAINSHAFT SIXTH (37T)

23511-MGS-D20

$95.51

11

COLLAR (40X43X10)

23512-MGS-D20

$12.62

12

WASHER, SPECIAL

90401-MJL-D50

$5.08

13

WASHER (40.2X51X1)

90411-MGE-D00

$11.79

14

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

15

WASHER, THRUST (30.5MM)

90458-MAT-E00

$1.84

16

WASHER, SPLINE (40MM)

90493-MGE-D00

$8.07

17

CIRCLIP (30MM)

90604-MM5-000

$4.48

18

CIRCLIP (40MM)

90605-MGE-D00

$6.93

19

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

20

BEARING, RADIAL BALL (6008)

91023-MGS-D21

$23.93

21

BEARING, NEEDLE (26X31X24) (NTN)

91102-KR0-003

$30.16

22

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

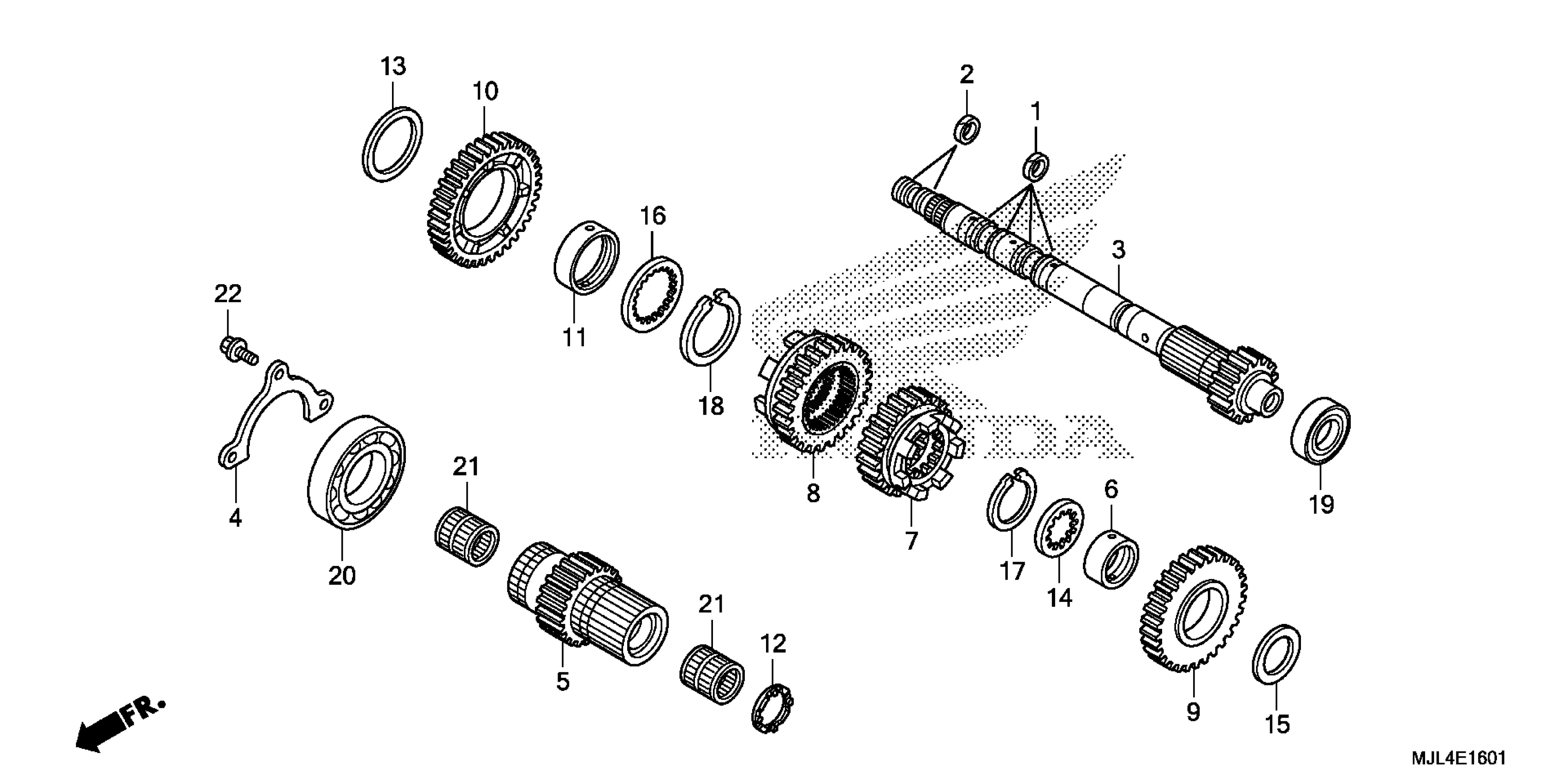

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 TRANSMISSION (2) Diagram
