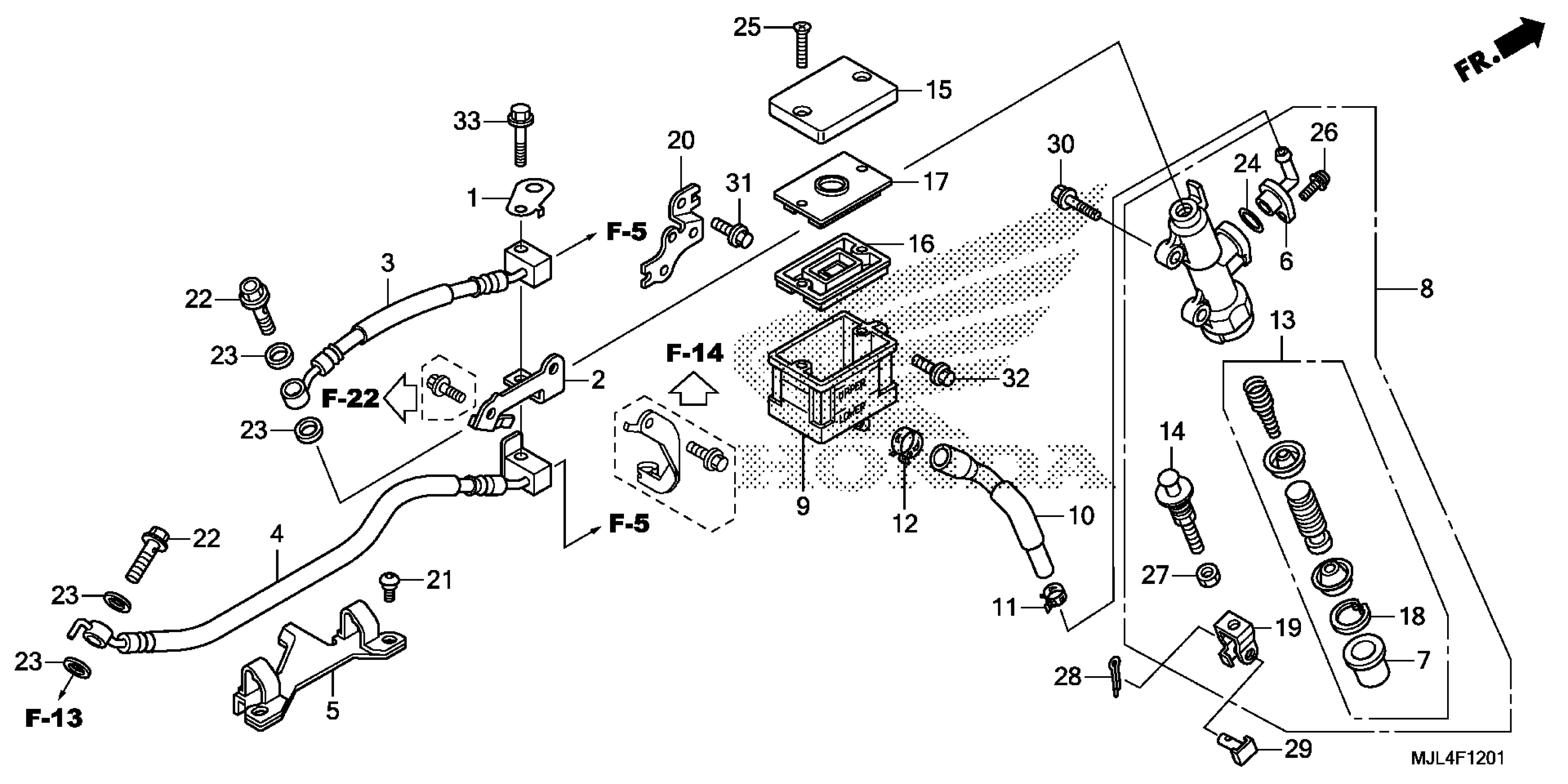

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 REAR BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

CLAMP, SENSOR WIRE

38514-MGS-D80

$3.68

2

STAY, RR. BRAKE HOSE

43160-MGS-D50

$11.81

3

HOSE A, RR. BRAKE

43310-MGS-D81

$32.97

4

HOSE E, RR. BRAKE

43314-MGS-D81

$65.03

5

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$15.32

6

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

7

BOOT

43504-MB2-006

$9.24

8

M/CYL SUB-ASSY, RR. This part replaces 43510-MGS-305.

43510-MGS-D31

$194.34

9

CUP, OIL

43511-KT8-006

$33.06

10

HOSE, RR. MASTER CYLINDER

43512-MGS-D31

$17.90

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.12

13

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$42.70

14

ROD, PUSH

43530-MJ0-006

$19.22

15

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.97

15

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.97

16

DIAPHRAGM

45520-MG7-006

$9.73

17

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

18

CIRCLIP

46182-MEL-D21

$1.79

19

JOINT, BRAKE ROD

46504-KV6-702

$7.49

20

STAY, OIL CUP

50601-MGS-D30

$4.59

21

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.01

22

BOLT, OIL (10X22)

90145-MS9-612

$6.99

23

WASHER, OIL BOLT

90545-300-000

$5.79

24

O-RING (14.8X2.4)

91212-422-006

$2.37

25

SCREW, FLAT (4X40)

93600-04040-1G

$0.44

26

SCREW-WASHER (4X12)

93893-04012-07

$1.32

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

27

NUT, HEX. (8MM)

94002-08000-0S

$1.31

28

PIN, SPLIT (2.0X15)

94201-20150

$1.04

29

PIN D, JOINT

95015-54000

$4.05

30

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

31

BOLT, FLANGE (6X12)

96001-06012-07

$1.79

32

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

33

BOLT, FLANGE (6X35)

96001-06035-07

$2.75
