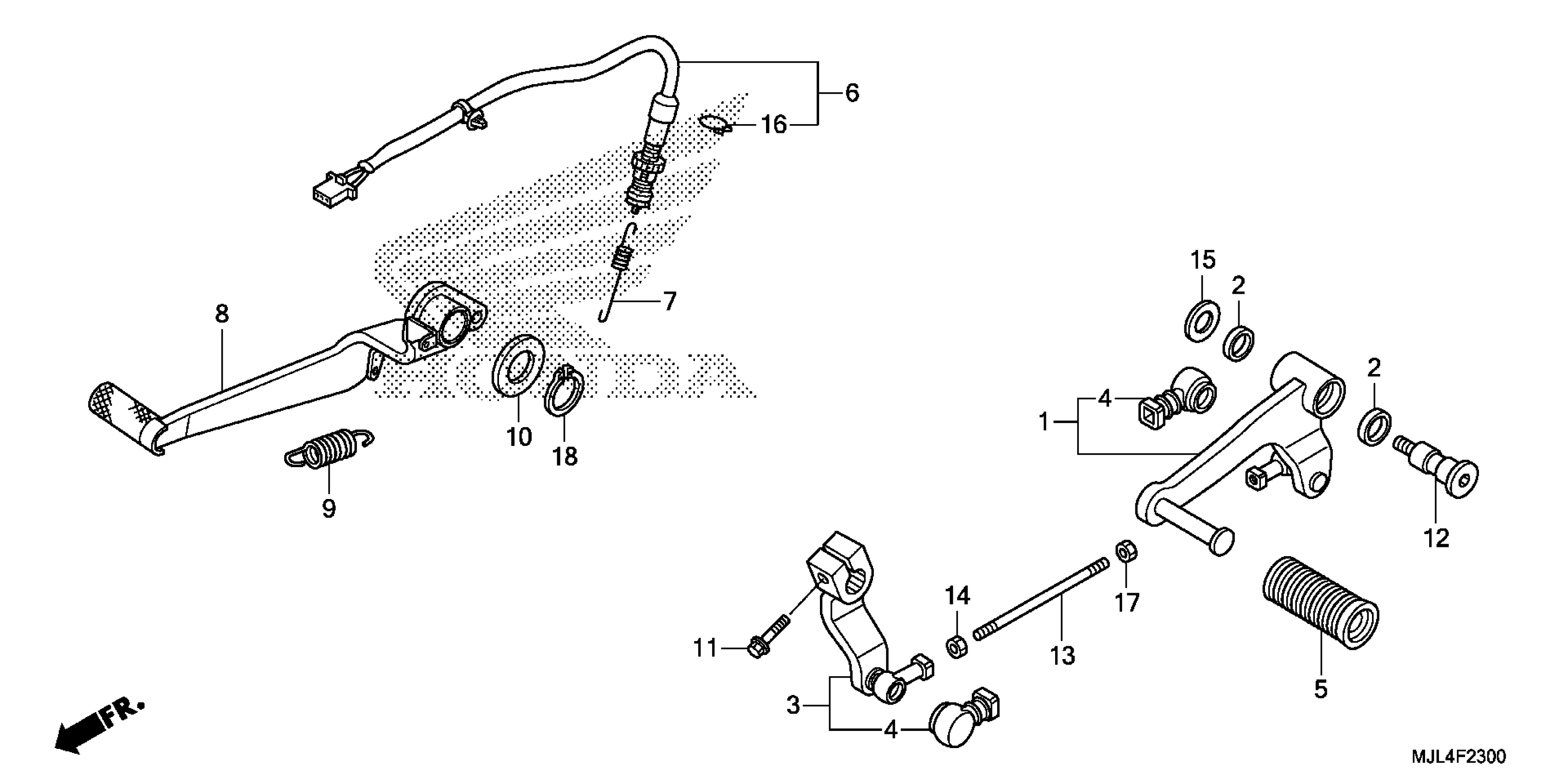

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 PEDAL Diagram

#

Description

Price

6

SWITCH ASSY., RR. STOP

35350-MGS-D32

$25.34

7

SPRING, STOP SWITCH

35357-MGS-D30

$4.21

8

PEDAL, BRAKE (COO)

46500-MGS-305

$101.69

9

SPRING, BRAKE PEDAL

46511-MV9-000

$9.18

10

PLATE, PILLION STEP SIDE

50715-KE8-000

$4.01

16

CLIP, SWITCH COVER

90601-KAF-003

$2.47

18

CIRCLIP (OUTER) (19MM)

94511-19000

$0.87
