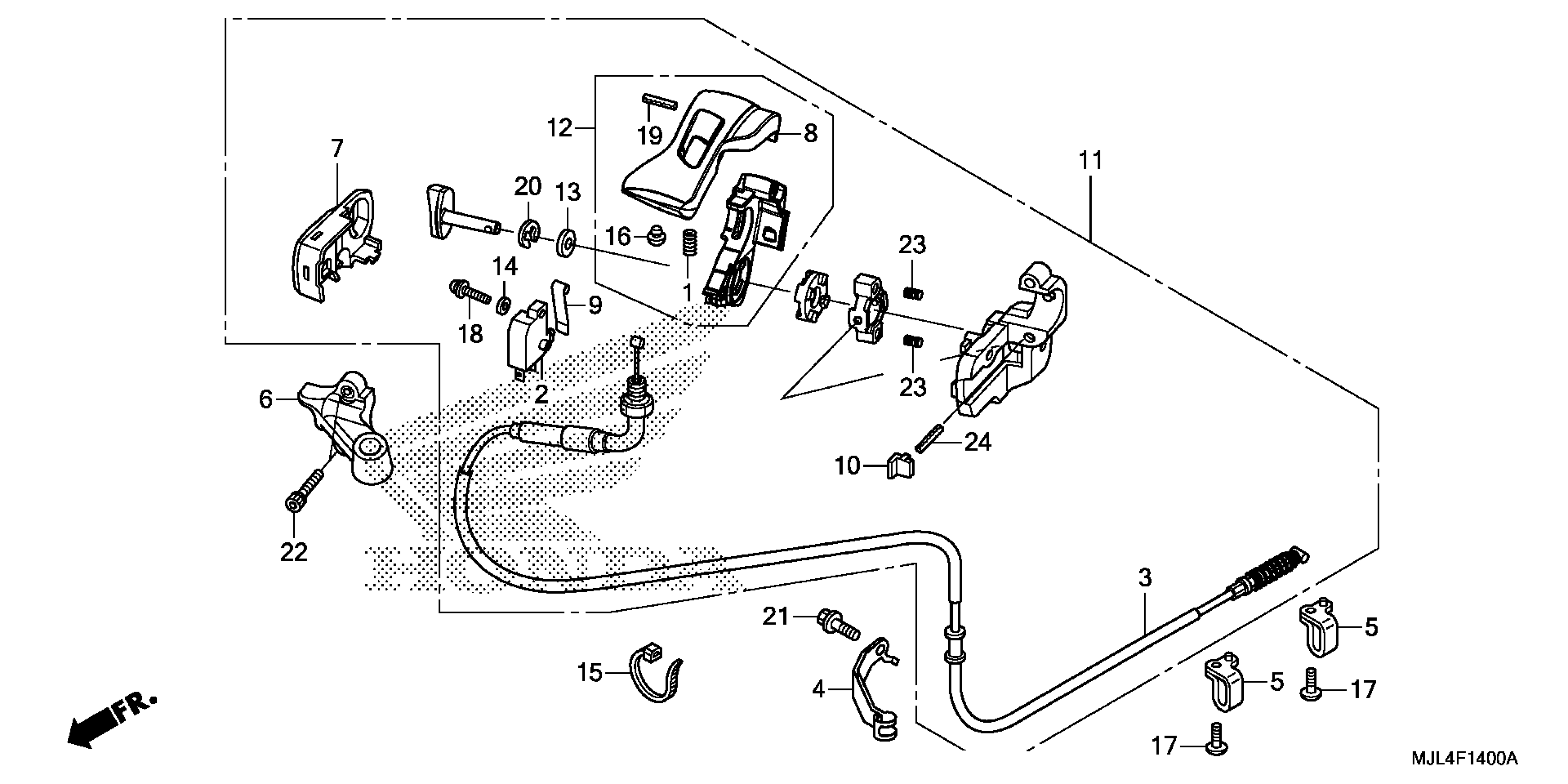

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 PARKING BRAKE LEVER Diagram

#

Description
Price

1

SPRING, BALL SETTING

24271-743-000

$2.39

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

3

CABLE, PARKING BRAKE

43450-MGS-D51

$55.39

4

CLAMP, PARKING BRAKE

43455-MGS-D50

$9.26

5

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.84

6

HOLDER (UPPER)

47111-MGS-D50

$54.52

7

COVER, HOLDER

47117-MGS-D50

$3.82

8

LEVER, PARKING TOP This part replaces 47152-MGS-D50.

47152-MGS-D51

$11.10

9

SPRING, SWITCH

47154-MGE-D00

$8.49

10

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.31

11

LEVER ASSY., PARKING

47200-MGS-D50

$429.59

12

LEVER, PARKING This part replaces 47210-MGS-D50.

47210-MGS-D51

$44.72

13

WASHER (10.2MM)

90401-430-000

$1.64

14

WASHER, PLAIN (4X8)

90515-GN5-910

$1.49

14

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.49

15

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

16

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.61

17

SCREW, PAN (5X16)

93500-05016-0G

$1.49

18

SCREW-WASHER (4X14)

93892-04014-07

$1.49

19

PIN, SPRING (3X28)

94305-30283

$1.51

20

E-RING (9MM)

94540-09018

$3.85

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

22

BOLT, SOCKET (6X20)

96600-06020-07

$1.49

23

SPRING, PLUNGER

47155-MGE-D00

$3.62

24

PIN, SPRING (3X22)

94305-30223

$1.49
