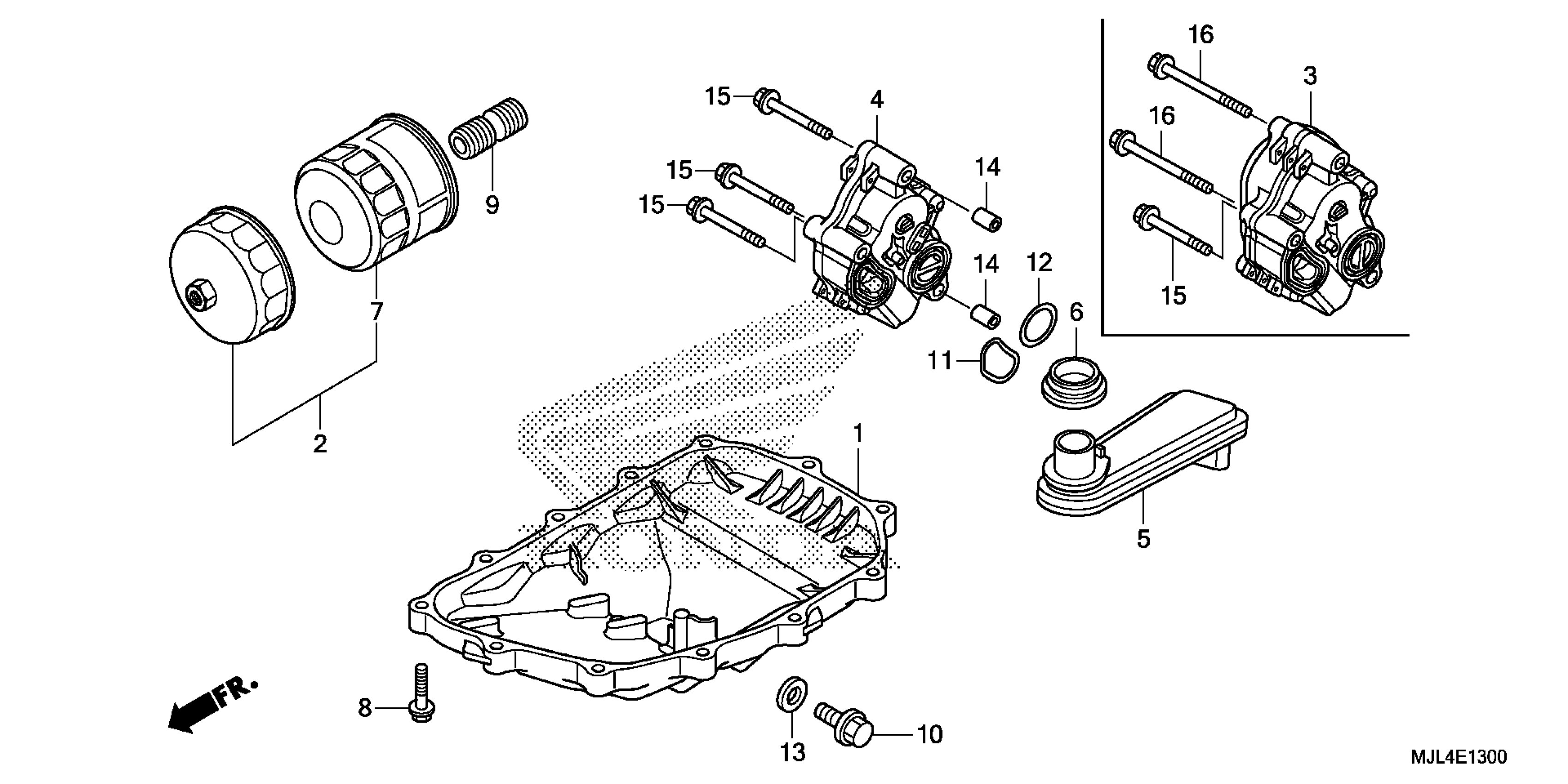

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 OIL PAN + OIL PUMP Diagram

PAN, OIL | Use up to Engine SN 6001190

11210-MGS-D10

$336.85

PAN, OIL | Use from Engine SN 6001191

11210-MJL-D30

$250.72

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MGS-D20

$155.67

STRAINER, OIL

15150-MGS-D30

$39.30

GASKET, OIL STRAINER

15154-MAT-000

$6.16

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

O-RING (32X1.7)

91301-MEE-003

$1.90

O-RING (24.5X1.9)

91307-PY4-003

$2.86

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X75)

95701-06075-00

$2.30
