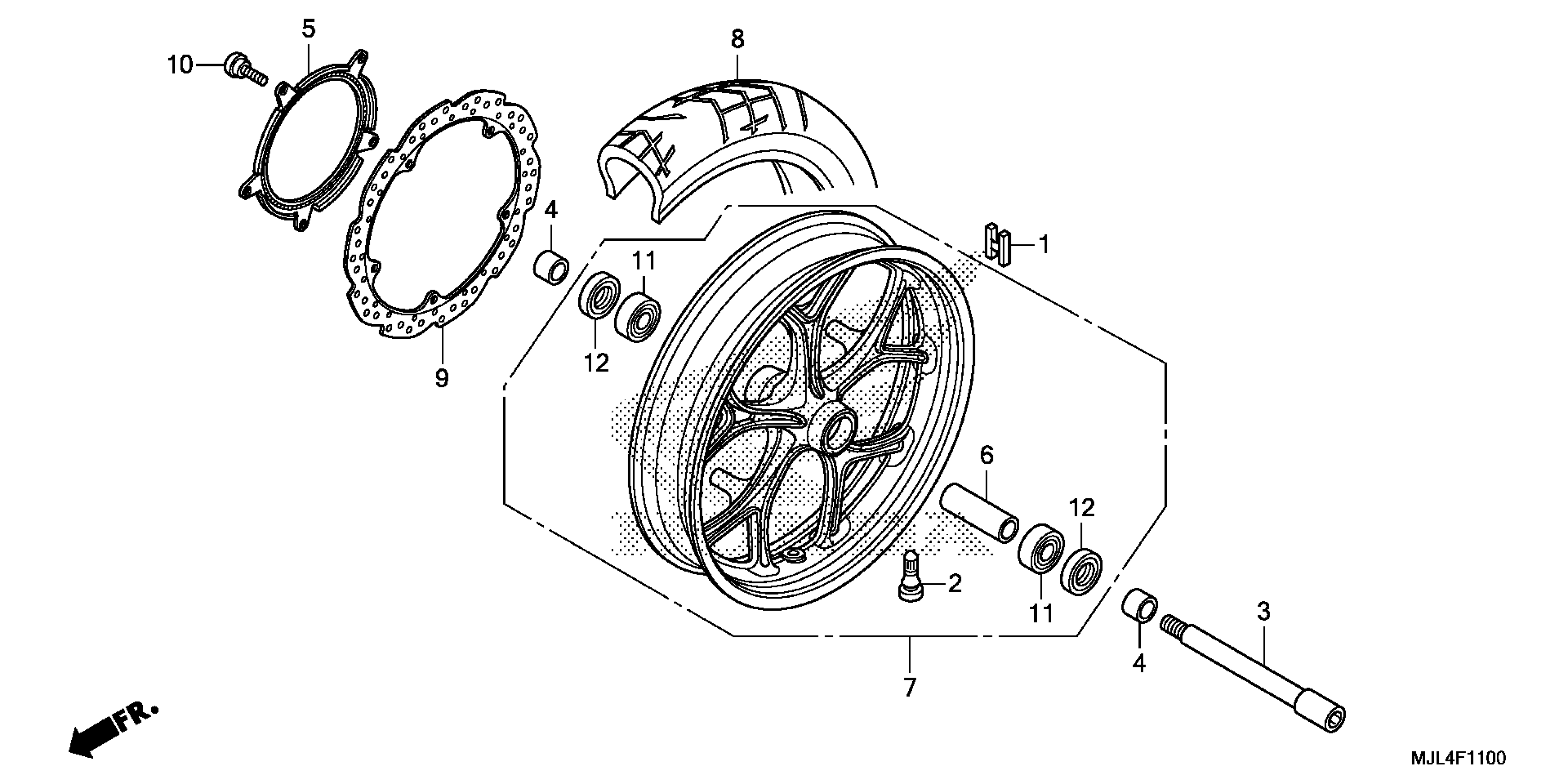

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 FRONT WHEEL Diagram

#

Description

Price

1

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

1

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

1

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

2

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.69

3

AXLE, FR. WHEEL

44301-MGS-D30

$49.15

4

COLLAR, FR. WHEEL SIDE

44311-MGS-D10

$15.06

5

RING, FR. PULSER

44515-MGS-D81

$117.62

6

COLLAR, FR. AXLE DISTANCE

44620-MGS-D10

$14.79

7

WHEEL SUB-ASSY., FR. This part replaces 44650-MJL-D30.

44650-MJL-D31

$742.62

7

WHEEL SUB-ASSY., FR.

44650-MJL-D31

$742.62

8

TIRE (120/70ZR17) This part replaces 44711-MJL-D32.

44711-MJL-D34

$148.42

9

DISK, FR. BRAKE (SUNSTAR)

45251-MGS-D81

$476.38

10

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

11

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.86

12

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66
