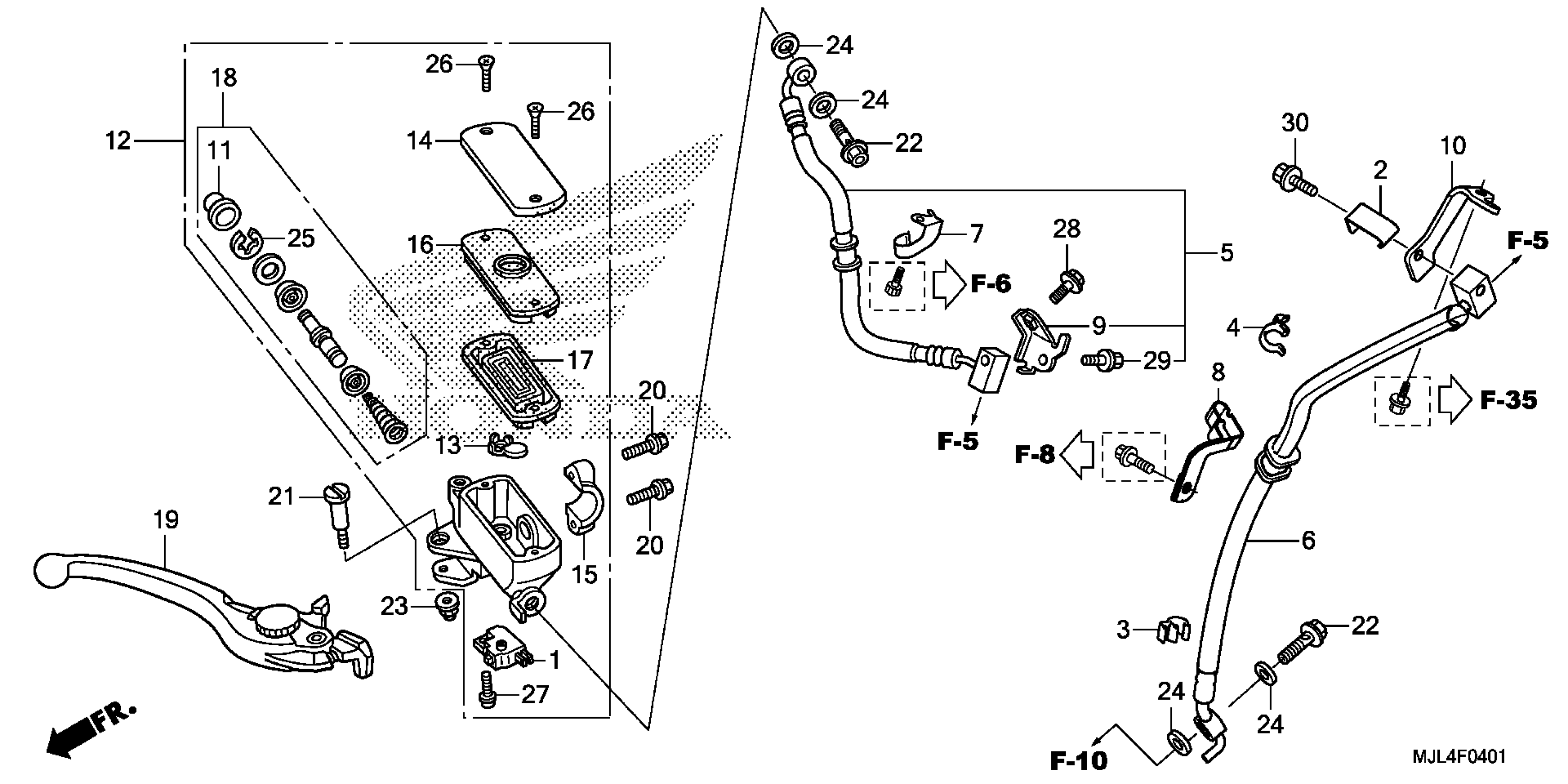

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

CLAMP, SENSOR WIRE

38514-MJF-C10

$3.47

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

4

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

5

HOSE A, FR. BRAKE

45125-MGS-D81

$52.29

6

HOSE D, FR. BRAKE

45128-MJL-D81

$53.56

7

CLAMP A, FR. BRAKE HOSE

45155-MGS-D80

$5.50

8

CLAMP A, FR. BRAKE HOSE

45156-MJL-D80

$9.68

9

STAY, FR. BRAKE HOSE

45158-MGS-D80

$5.49

10

STAY, FR. BRAKE HOSE

45160-MJF-C11

$8.93

11

BOOT

45504-410-003

$11.17

12

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGS-305.

45510-MGS-D31

$258.54

13

PROTECTOR

45512-MA6-006

$4.09

14

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

15

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

16

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

17

DIAPHRAGM

45520-MM5-006

$13.87

18

MASTER CYLINDER SET

45530-KVY-911

$23.84

19

LEVER ASSY., R. HANDLE

53170-MEJ-016

$40.28

19

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$40.28

20

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

21

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

22

BOLT, OIL (10X22)

90145-MS9-612

$6.99

23

NUT, CAP (6MM)

90201-415-000

Unavailable

24

WASHER, OIL BOLT

90545-300-000

$5.79

25

CIRCLIP

90651-MA5-671

$2.38

26

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

27

SCREW-WASHER (4X12)

93893-04012-07

$1.32

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

28

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

29

BOLT, FLANGE (6X12)

96001-06012-07

$1.79

30

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
