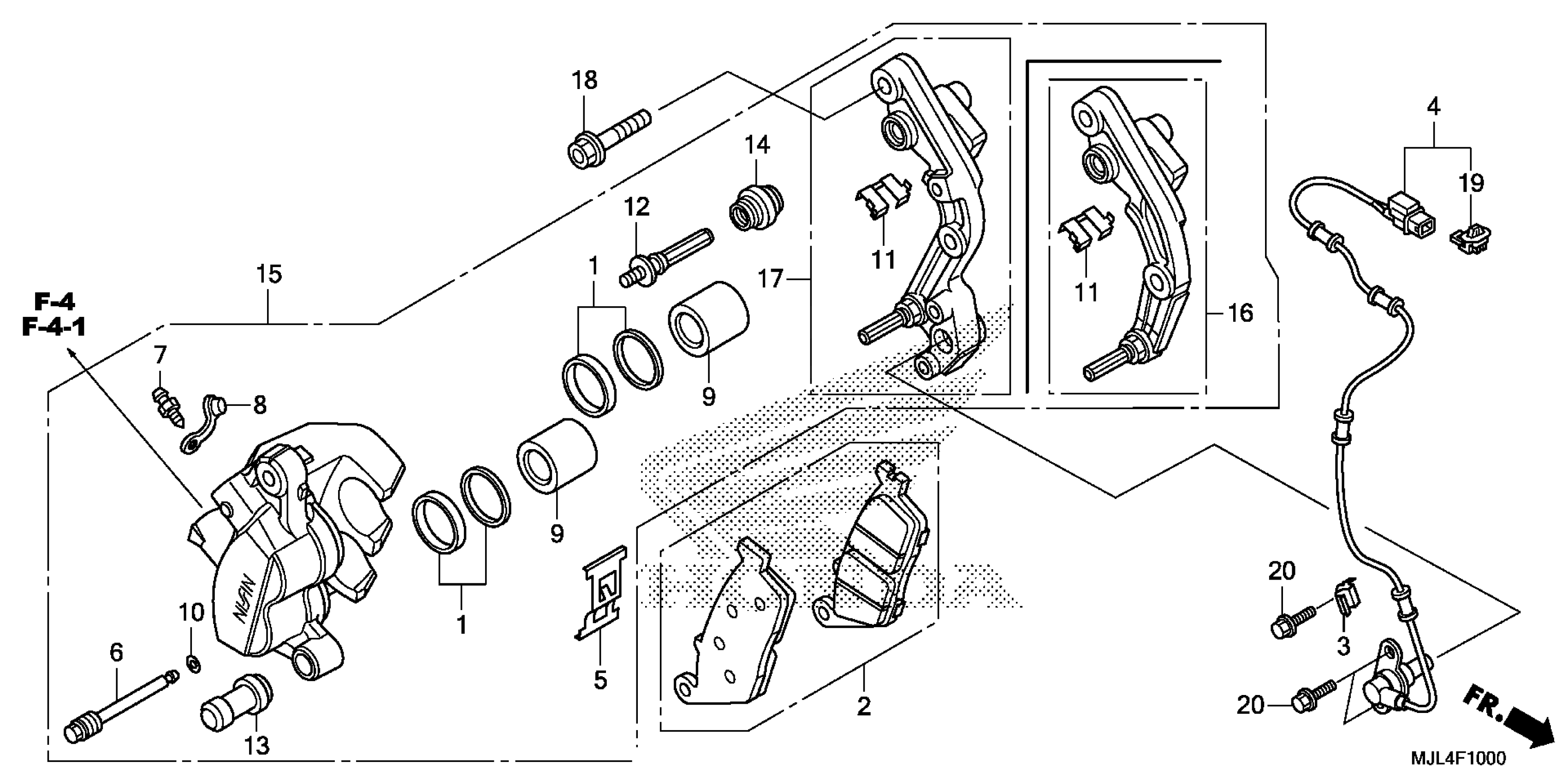

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, FR. This part replaces 06455-MGS-D31.

06455-MGS-D32

$46.05

CLAMP, SENSOR WIRE

38517-MGS-D80

$4.76

SENSOR, FR. WHEEL SPEED

38520-MGS-D81

$211.63

SPRING, PAD

43108-MCT-006

$4.69

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-ML7-921

$5.21

BOLT A, PIN

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MGZ-J11

$163.13

BRACKET SUB-ASSY., R. FR.

45290-MGZ-J11

$46.10

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
